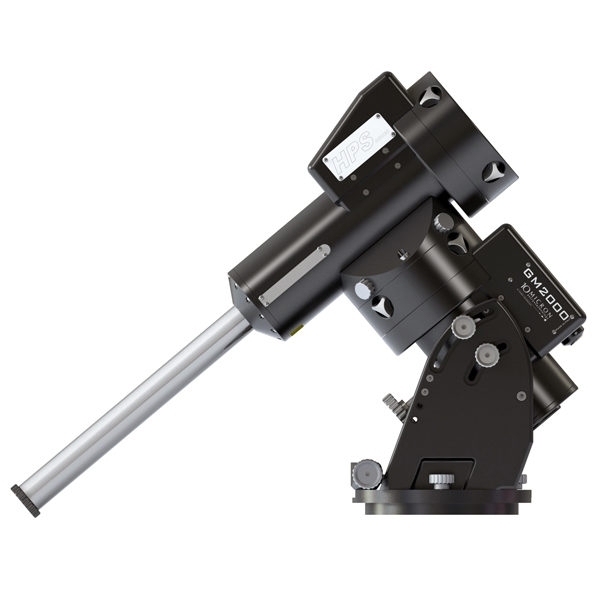

10Micron GM2000HPS II Combi Portable Equatorial Mount

Starting Price: $14,284.00
Price as Configured: $14,284.00
Brand: 10Micron Astro Technologies / SKU: 10M-2030
  • Please inquire for availability. The GM2000HPS mounts are generally available to ship within one to three weeks. However, delivery times are dependent on 10Micron production schedules and pre-production sales but should be less than three months in any case. Arrangements can be made to take a deposit on the mount at the time of order rather than paying the full amount, depending on the predicted availability of the mount at the time of order.
  • We cannot sell 10Micron products to customers outside of North and South America.
  • Shipping prices calculated on the website are approximate and may need to be adjusted based on locations, particularly those outside the United States.
Basic (al a carte) and Complete Package Options (Required)
Recommended Add-ons and Accessories
Product Price Quantity

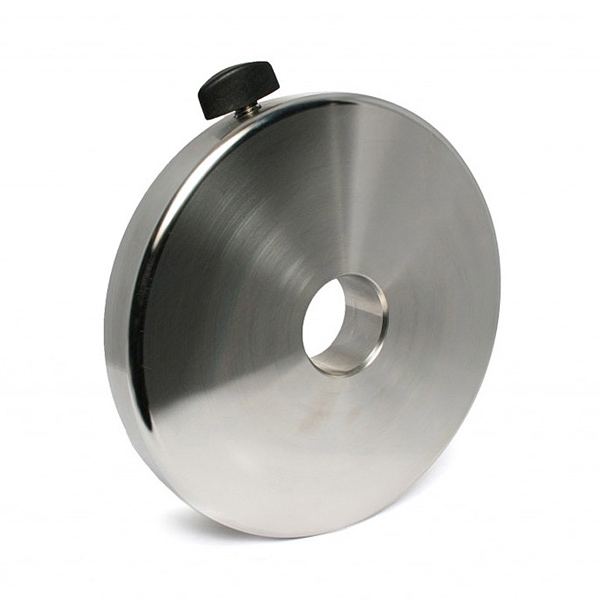

10M-2075 - 10Micron 13.2 lbs (6 kg) Counterweight for the 2000HPS Mounts
10M-2075 - 10Micron 13.2 lbs (6 kg) Counterweight for the 2000HPS Mounts
About This Product
This 13.2 lbs. (6 kg) counterweight is exclusively designed for GM/AZ2000 mounts. A precise 40mm hole offers a smooth movement on the shaft, and facilitates the balancing operations and the stainless steel guarantees no corrosion. The ergonomic screw will ensure a safe tightening.
$125.00 each

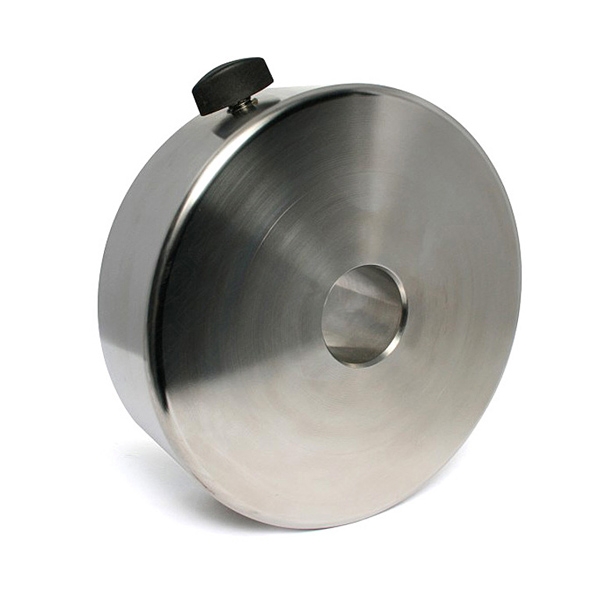

10M-2080 - 10Micron 26.4 lbs (12 kg) Counterweight for the 2000HPS Mounts
10M-2080 - 10Micron 26.4 lbs (12 kg) Counterweight for the 2000HPS Mounts
About This Product
This 26.4 lbs. (12 kg) counterweight is exclusively designed for GM/AZ2000 mounts. A precise 40mm hole offers smooth movement on the shaft, and facilitates balancing operations and the stainless steel guarantees no corrosion. The ergonomic screw will ensure a safe tightening.
$180.00 each

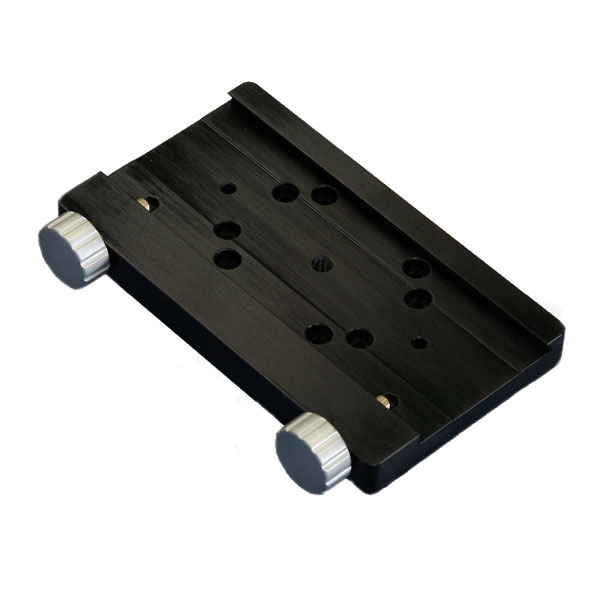

10M-2085 - 10Micron Losmandy (3-inch) Dovetail Clamping Plate
10M-2085 - 10Micron Losmandy (3-inch) Dovetail Clamping Plate
About This Product
The Losmandy dovetail clamping plate 3” allow the use of standard Losmandy slide bar mounted optical tubes; this product is all CNC machined, black anodized aluminum. Two locking knobs ensure “top of safety” for your instruments. Lenght: 200mm.
$220.00 each

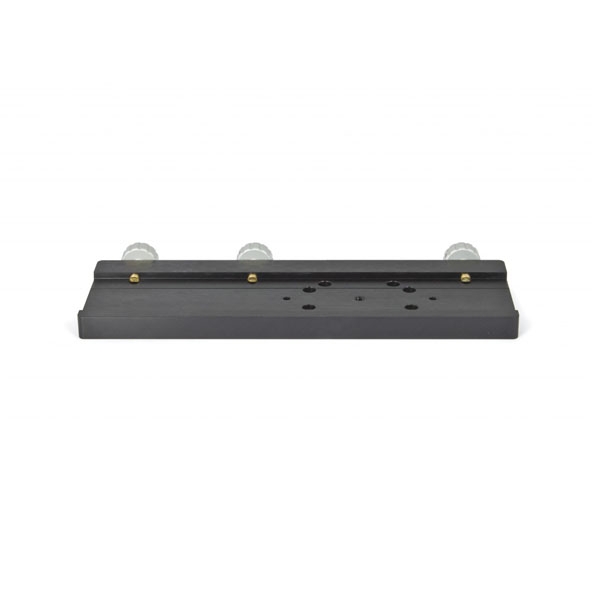

10M-2185 - 10Micron Losmandy 3" Dovetail Clamping Plate, Extra-Long
10M-2185 - 10Micron Losmandy 3" Dovetail Clamping Plate, Extra-Long
About This Product
The Losmandy dovetail clamping plate 3″ XL offers a length of 350mm (13.8”) and three security locking knobs, in order to offer a very high level of stability and safety, especially for heavier and longer optical configurations.
$279.00 each

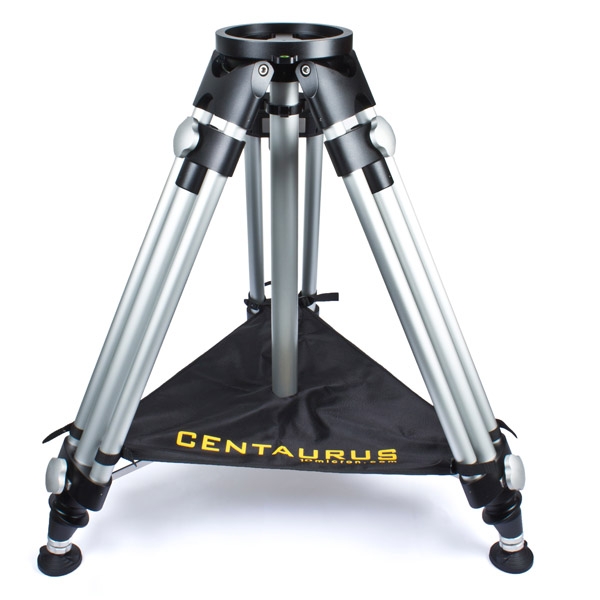

10M-2057 - 10Micron CENTAURUS II Tripod
10M-2057 - 10Micron CENTAURUS II Tripod
$3,332.00 each
View More Add-ons and Accessories

Recommended Add-ons and Accessories

Enter the quantity desired for each item and click the close button to continue with your purchase.
10M-2075 - 10Micron 13.2 lbs (6 kg) Counterweight for the 2000HPS Mounts
10M-2075 - 10Micron 13.2 lbs (6 kg) Counterweight for the 2000HPS Mounts
$125.00
« Back to All Add-ons
10M-2075 - 10Micron 13.2 lbs (6 kg) Counterweight for the 2000HPS Mounts
About This Product
This 13.2 lbs. (6 kg) counterweight is exclusively designed for GM/AZ2000 mounts. A precise 40mm hole offers a smooth movement on the shaft, and facilitates the balancing operations and the stainless steel guarantees no corrosion. The ergonomic screw will ensure a safe tightening.
10M-2080 - 10Micron 26.4 lbs (12 kg) Counterweight for the 2000HPS Mounts
10M-2080 - 10Micron 26.4 lbs (12 kg) Counterweight for the 2000HPS Mounts
$180.00
« Back to All Add-ons
10M-2080 - 10Micron 26.4 lbs (12 kg) Counterweight for the 2000HPS Mounts
About This Product
This 26.4 lbs. (12 kg) counterweight is exclusively designed for GM/AZ2000 mounts. A precise 40mm hole offers smooth movement on the shaft, and facilitates balancing operations and the stainless steel guarantees no corrosion. The ergonomic screw will ensure a safe tightening.
10M-2085 - 10Micron Losmandy (3-inch) Dovetail Clamping Plate
10M-2085 - 10Micron Losmandy (3-inch) Dovetail Clamping Plate
$220.00
« Back to All Add-ons
10M-2085 - 10Micron Losmandy (3-inch) Dovetail Clamping Plate
About This Product
The Losmandy dovetail clamping plate 3” allow the use of standard Losmandy slide bar mounted optical tubes; this product is all CNC machined, black anodized aluminum. Two locking knobs ensure “top of safety” for your instruments. Lenght: 200mm.
10M-2185 - 10Micron Losmandy 3" Dovetail Clamping Plate, Extra-Long
10M-2185 - 10Micron Losmandy 3" Dovetail Clamping Plate, Extra-Long
$279.00
« Back to All Add-ons
10M-2185 - 10Micron Losmandy 3" Dovetail Clamping Plate, Extra-Long
About This Product
The Losmandy dovetail clamping plate 3″ XL offers a length of 350mm (13.8”) and three security locking knobs, in order to offer a very high level of stability and safety, especially for heavier and longer optical configurations.
10M-2057 - 10Micron CENTAURUS II Tripod
10M-2057 - 10Micron CENTAURUS II Tripod
$3,332.00

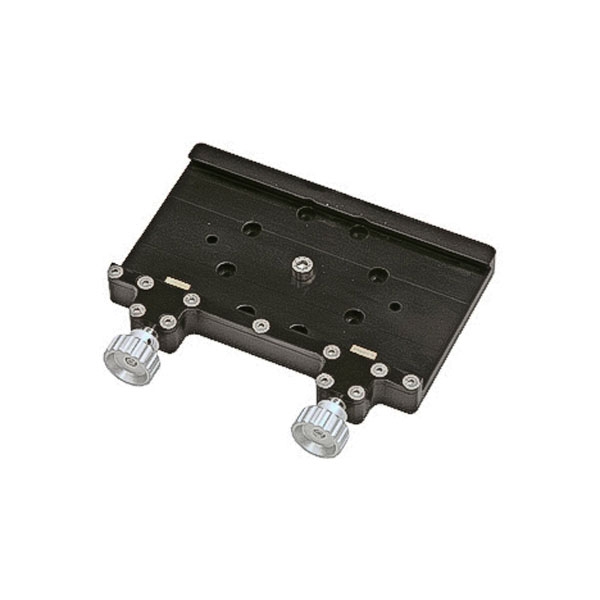

10M-2135 - 10Micron “Maxi” (4-inch) Dovetail Clamping Plate
10M-2135 - 10Micron “Maxi” (4-inch) Dovetail Clamping Plate
$245.00
« Back to All Add-ons
10M-2135 - 10Micron “Maxi” (4-inch) Dovetail Clamping Plate
About This Product
The “Maxi”-dovetail clamping plate 4″ is designed to accept 4” 10Micron dovetail slide bars, suitable for heavier configurations. Advisable for example for optical tubes larger than 14” or for dual telescope setup. Lenght 200mm; 2 security locking knobs. Note for GM3000 & GM4000 users: Although it should be possible to accommodate this plate directly on the top of the GM3000 & GM4000 mount, due to the low profile of the clamping plates we strongly recommend using the special Flange Adapters 10M3545/10M4545 in order to operate the plate’s knobs with enough clearance.

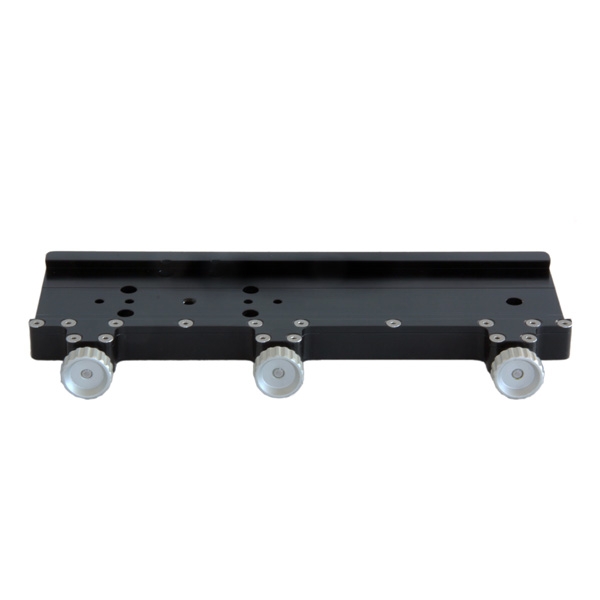

10M-2235 - 10Micron “Maxi” (4-inch) Dovetail Clamping Plate, Extra-Long
10M-2235 - 10Micron “Maxi” (4-inch) Dovetail Clamping Plate, Extra-Long
$381.00
« Back to All Add-ons
10M-2235 - 10Micron “Maxi” (4-inch) Dovetail Clamping Plate, Extra-Long
About This Product
The “Maxi”-dovetail clamping plate 4″ XL is designed to accept 4” 10Micron dovetail slide bars, suitable for heavier configurations. Advisable for example for optical tubes larger than 14” or for dual telescope setup. Lenght 350mm; 3 security locking knobs. Note for GM3000 & GM4000 users: Although it should be possible to accommodate this plate directly on the top of the GM3000 & GM4000 mount, due to the low profile of the clamping plates we strongly recommend using the special Flange Adapters 10M3545/10M4545 in order to operate the plate’s knobs with enough clearance.

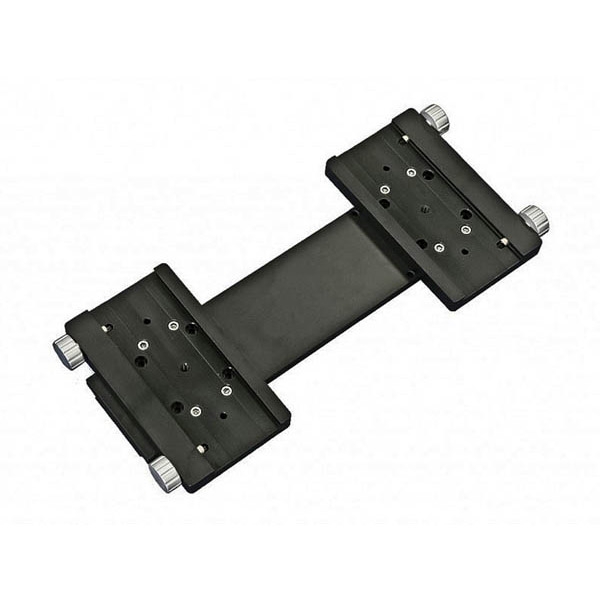

10M-2105 - 10Micron D-Series Side-by-Side Bar and Saddles
10M-2105 - 10Micron D-Series Side-by-Side Bar and Saddles
$525.00
« Back to All Add-ons
10M-2105 - 10Micron D-Series Side-by-Side Bar and Saddles
About This Product
This special double plate is designed to allow a parallel mounting of two optical tubes on the 10Micron mounts. The bottom slide is a standard 3” dovetail bar (Losmandy compatible) #10M2130; the clamping plates are two 3” Losmandy compatible (#10M2085). All the components are CNC machined, black anodized aluminum. There are 3 different possible distances between the two clamps: approx. 210, 245 and 281mm (8.3”, 9.6”, 11”). Note: – The GM1000 HPS Mount needs the #10M1105 Adapter in order to mantain the corret encoder’s position references – All the other mounts require a #10M2085 or #10M2185 3″ Losmandy clamping plate.

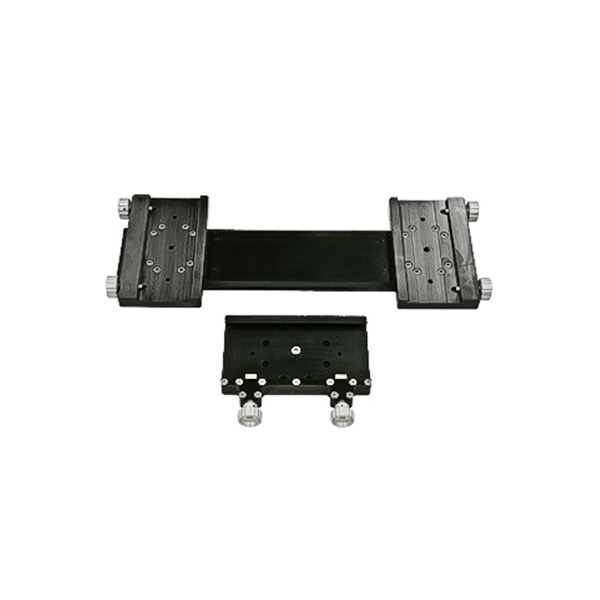

10M-2100 - 10Micron "Maxi" (4")/Losmandy (3") Side-by-Side Bar and Saddles
10M-2100 - 10Micron "Maxi" (4")/Losmandy (3") Side-by-Side Bar and Saddles
$777.00
« Back to All Add-ons
10M-2100 - 10Micron "Maxi" (4")/Losmandy (3") Side-by-Side Bar and Saddles
About This Product
This special double plate is designed to allow a parallel mounting of two optical tubes on the 10Micron mounts. The bottom slide is a 4” dovetail bar 400mm long with special threaded holes (#10M2199); the clamping plates are 3” Losmandy compatible and 200mm long (#10M2085). All the components are CNC machined, black anodized aluminum. There are 3 different possible distances between the two clamps: appr. 210, 245 and 281mm (8.3”, 9.6”, 11”). Included in the set is a Maxi clamping plate (#10M2135) which fits directly on the GM2000 mounts and via the following adapters on the GM3000 and GM4000 mounts: #10M3545 | Flange adapter for clamping plates (GM3000) #10M4545 | Flange adapter for clamping plates (GM4000)

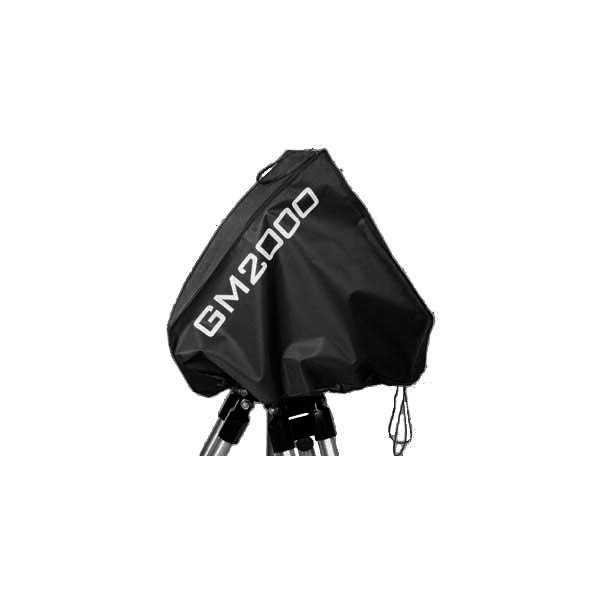

10M-2065 - 10Micron Mount-Head Protective Cover for the GM2000HPS
10M-2065 - 10Micron Mount-Head Protective Cover for the GM2000HPS
$93.00
« Back to All Add-ons
10M-2065 - 10Micron Mount-Head Protective Cover for the GM2000HPS
About This Product
This special cover, made of Cordura, ensures a good protection for your GM2000 mount; very easy to lace and remove thanks to a zip system, which also allows to place the cover with installed payload on the mount.
10M-2063H - 10Micron “Flight-Case” Set for the GM2000HPS Ultra-Portable Mount and Electronics
10M-2063H - 10Micron “Flight-Case” Set for the GM2000HPS Ultra-Portable Mount and Electronics
$1,381.00
« Back to All Add-ons
10M-2063H - 10Micron “Flight-Case” Set for the GM2000HPS Ultra-Portable Mount and Electronics
About This Product
These cases are made of a special resin compound which offers a combination of high elasticity, increased shock absorption, reduced transport weight, and resistance against temperature extremes. They also ensure a perfect barrier against dust, humidity, sand, etc. The Internal padding is cut to accommodate the instruments. Two cases, with a trolley configuration, contain the GM2000 Ultraport mount; the other one contains the counterweights and shaft, the electronic parts (control box + hand controls and cables), and other small accessories.

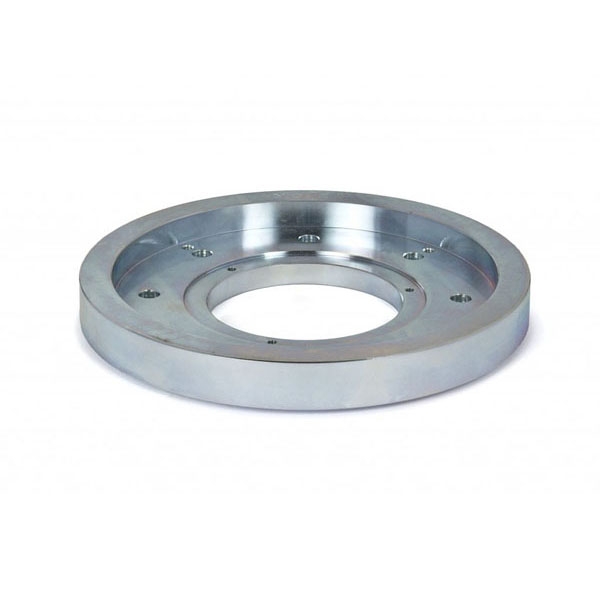

10M-2090 - 10Micron Steel Pier Adapter Flange for the 2000HPS Mounts
10M-2090 - 10Micron Steel Pier Adapter Flange for the 2000HPS Mounts
$145.00
« Back to All Add-ons
10M-2090 - 10Micron Steel Pier Adapter Flange for the 2000HPS Mounts
About This Product
This Pier flange adapter is made of electroplated steel and it’s designed in order to accommodate the GM2000 mount on a flat-topped metal pier. It fits the Base adapter flange of the GM2000 (#10M2095), normally supplied with the Mount.

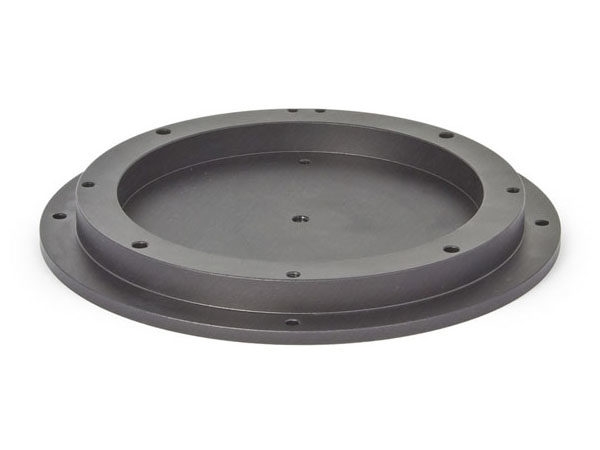

10M-2095 - 10Micron Base Adapter Flange for the 2000HPS Mounts
10M-2095 - 10Micron Base Adapter Flange for the 2000HPS Mounts
$316.00
« Back to All Add-ons
10M-2095 - 10Micron Base Adapter Flange for the 2000HPS Mounts
About This Product
This optional base adapter flange kit is designed to accommodate the GM2000 mount on the Pier Adapter flange (#10M2090), to the Centaurus II tripod, or directly on a fixed pier. It’s made of a fine black anodized aluminum and includes all the necessary knobs, screws and the azimuth pin. It’s usually provided with the GM2000 Mount.

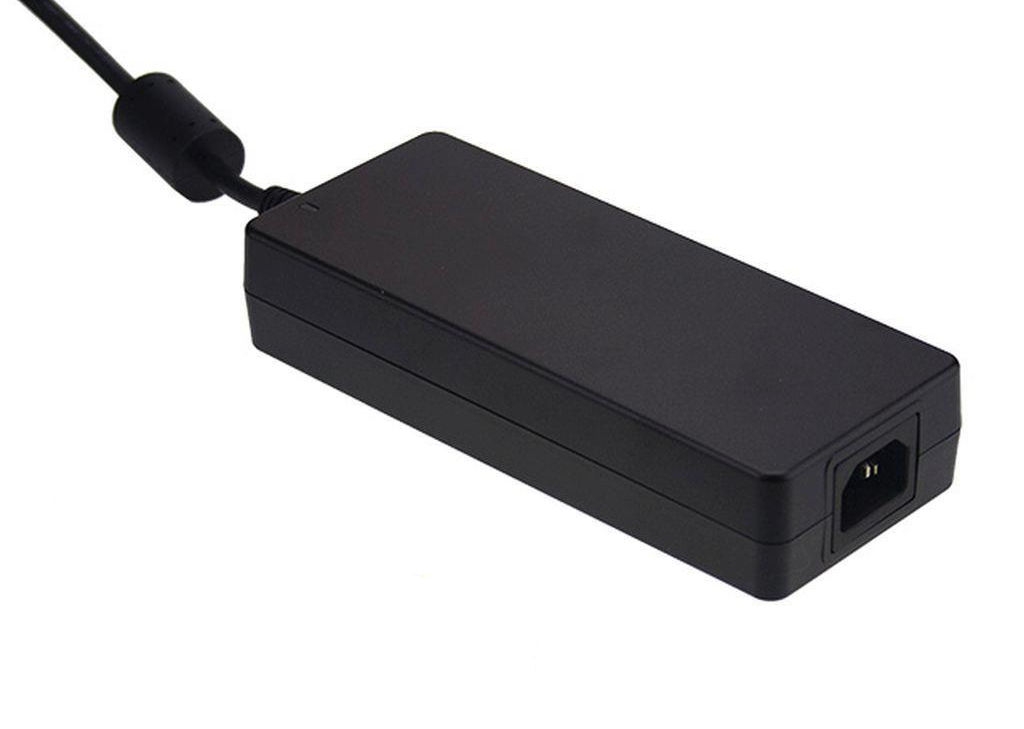

10M-DSP-2060 - Portable AC Power Supply, Switching Type, 110-240V Input / 24V 6A Output for All HPS Mounts
10M-DSP-2060 - Portable AC Power Supply, Switching Type, 110-240V Input / 24V 6A Output for All HPS Mounts
$80.00
« Back to All Add-ons
10M-DSP-2060 - Portable AC Power Supply, Switching Type, 110-240V Input / 24V 6A Output for All HPS Mounts
About This Product
This Switching Power Supply is a very high quality and reliable device; it accepts 110 to 240V AC input; the output ensures the proper 24V, 6A (160W) power supply to the v.2 GM2000HPS, GM3000HPS, GM4000HPS mounts.

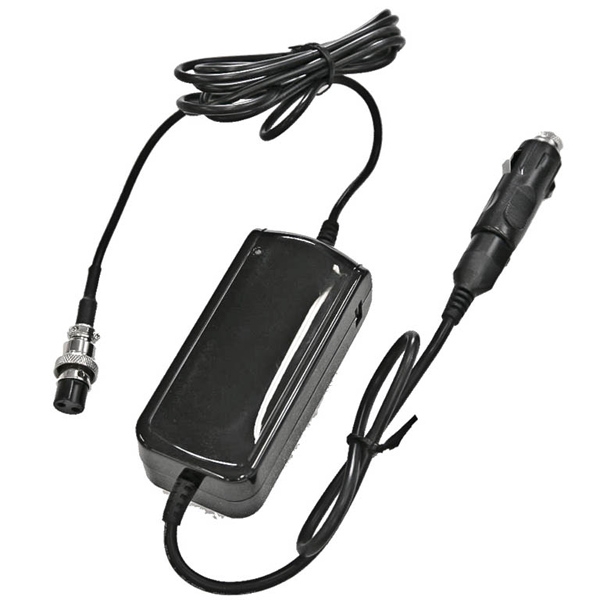

10M-DSP-2577 - Mobile Power Supply w/Car Plug 12V Input, 24V 5A 120W Output (for 1000HPS & 2000HPS Mounts )
10M-DSP-2577 - Mobile Power Supply w/Car Plug 12V Input, 24V 5A 120W Output (for 1000HPS & 2000HPS Mounts )
$70.00
« Back to All Add-ons
10M-DSP-2577 - Mobile Power Supply w/Car Plug 12V Input, 24V 5A 120W Output (for 1000HPS & 2000HPS Mounts )
About This Product
This Power Supply is a very high quality and reliable 12V to 24V DC converter. It ensures that, from a 12V DC power source, the proper 24V, 5A (120W) output power is supplied to the GM1000 and GM2000 mounts. The input power cable is provided with a standard car lighter plug. It is perfect for “field” observations using a suitable 12V battery (not supplied).
10M-2066 - 10Micron Foam fitted Transport Cardboard Box GM2000HPS
10M-2066 - 10Micron Foam fitted Transport Cardboard Box GM2000HPS
$119.00
« Back to All Add-ons
10M-2066 - 10Micron Foam fitted Transport Cardboard Box GM2000HPS
About This Product
This cardboard box, fitted with Special shaped Foam, will ensure a safe shipping & transport and an eventual warranty repair return. Provided with a suitable handle. It’s usually included in the mount’s standard pack; designed only for GM2000 and GM2000 HPS mounts.
10M-2011 - 10Micron Controlbox Holder for 8-12" Round Pier (2000HPS and 3000HPS Mounts)
10M-2011 - 10Micron Controlbox Holder for 8-12" Round Pier (2000HPS and 3000HPS Mounts)
$231.00
« Back to All Add-ons
10M-2011 - 10Micron Controlbox Holder for 8-12" Round Pier (2000HPS and 3000HPS Mounts)
About This Product
This accessory allows to accommodate the 10Micron electronic control box on round metal pier. Made of fine machined black anodized aluminum.
10M-2C - 10Micron Special Cold Temperature Option for 2000HPS Mounts
10M-2C - 10Micron Special Cold Temperature Option for 2000HPS Mounts
$2,056.00
« Back to All Add-ons
10M-2C - 10Micron Special Cold Temperature Option for 2000HPS Mounts
About This Product
The GM2000 and AZ2000 mounts are available in a special version for very low temperature operations. This option allows the Mount to operate until -30°C (-22° F) and features the following special modifications: - Special low-temperature lubricants certified until -60°C or lower - Special copper wiring, silicone sheathed - Electronic components certified for temperatures down to -40°C - Endurance tested at low temperatures in our laboratory All 10Micron mounts feature special systems in their mechanics in order to compensate thermal variations. This option is intended for brand new mounts to be ordered; contact us for already delivered mounts.
QTY:
Price as Configured: $14,284.00
Product Help
Need help deciding?
Tell us what you're looking for, and we’ll point you in the right direction. .

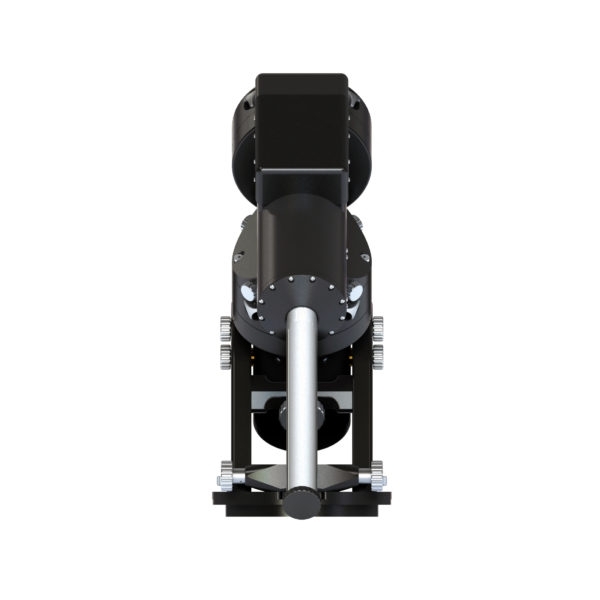

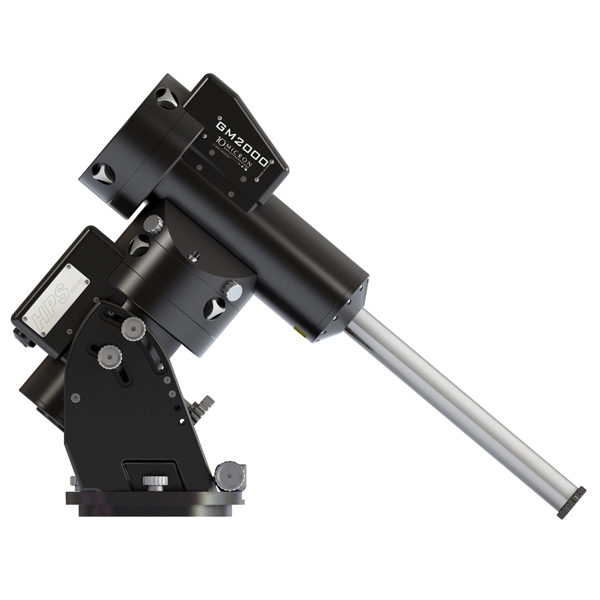

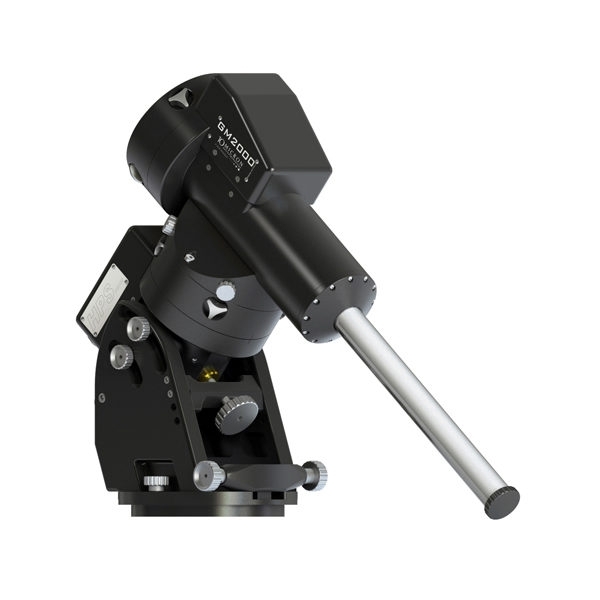

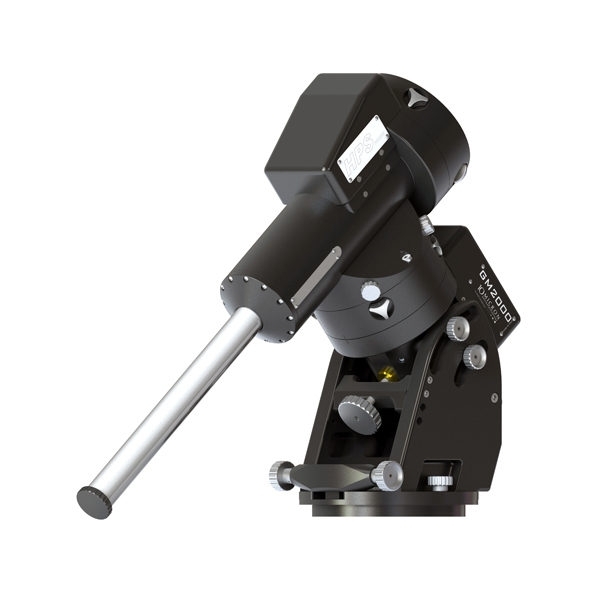

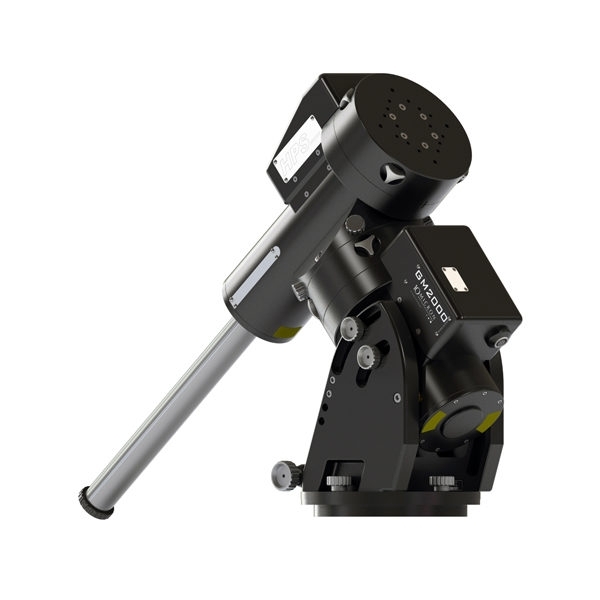

The GM2000HPS mount, now in the new M2 Combi version, is built for the demanding observer using photographic instruments up to a weight of 110 lbs. (50 kg) (counterweights not included). Movements are driven by two servo brushless motors, with timing belt reduction having zero backlash. Both axes feature a classic worm – worm wheel pairing. The worm wheels are made of bronze (B14), with a diameter of 172mm and 215 teeth, while the worms are made of alloy steel with a diameter of 24mm. The axes themselves are made of 50mm diameter alloy steel for maximum rigidity.

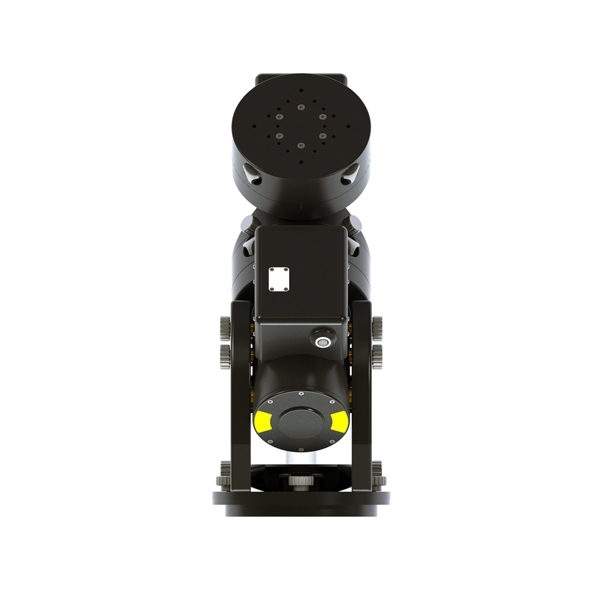

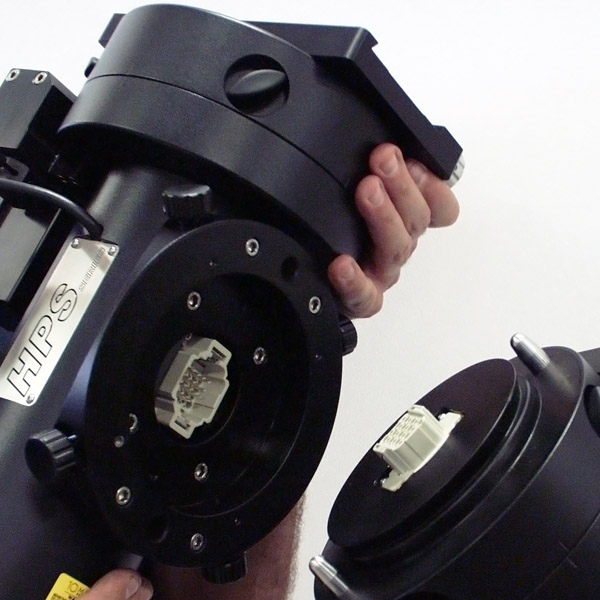

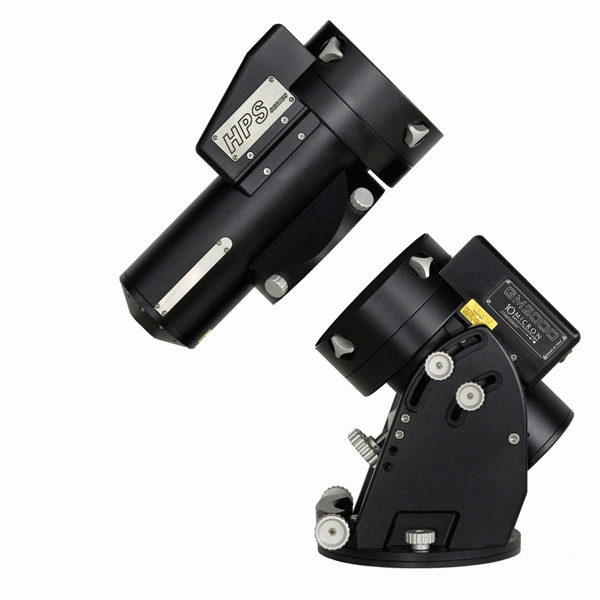

The GM2000HPS II Combi mount is basically a GM2000 HPS II Ultraport (“splittable” in two parts) with an additional locking system. Besides the quick locking system, very useful to carry and assemble the mount in the field, 10Micron added a further locking system for customers who have the mount permanently installed in an observatory. This system this will ensure long-term stability comparable to a GM2000 HPS II Monolith. You can easily revert the mount to a portable (“splittable”) version simply removing the locking screws. In this way we can have the advantages of both the previous models in a single mount and so the new GM2000 HPSII Combi will replace both the Monolithic and Ultraport models.

The technical specifications, sizes and weight of the new GM2000 HPS II Combi are exactly the same of the GM2000 HPS II.

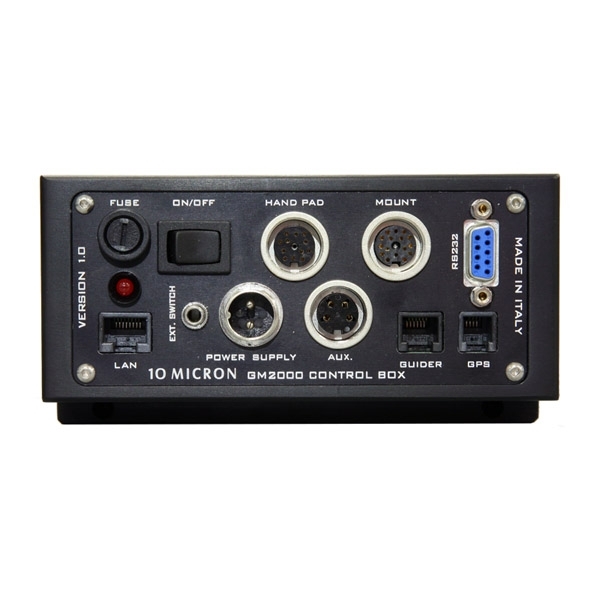

The electronics are housed in an independent control box, easily removable. The connections of the mount and keypad feature security lock screws. The mount can be controlled using the included keypad, without connecting an external PC. The keypad is built in order to maintain the maximum readability in all lighting conditions. Both the display and the ergonomic keys, allowing for the use of gloves, feature a red backlight. A heater keeps the display warm for usage below freezing temperature.

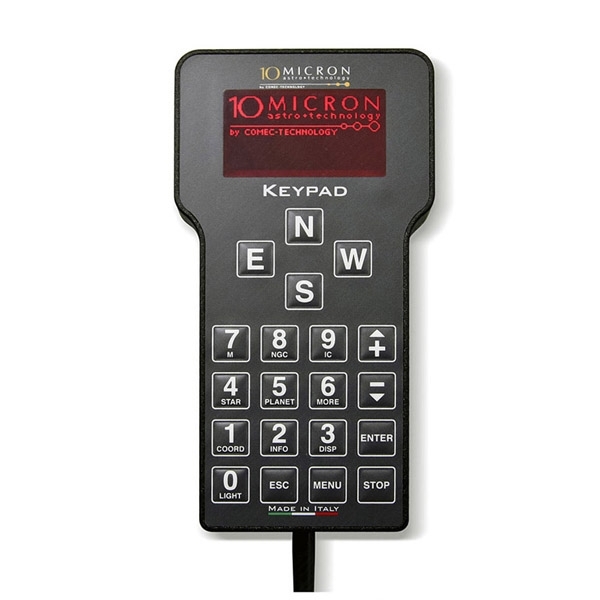

The keypad is built in order to maintain the maximum readability in all lighting conditions. Both the display and the ergonomic keys, allowing for the use of gloves, feature a red backlight. A heater keeps the display warm for usage below freezing temperatures.

The mount can be controlled using the most common software packages by connecting it to a PC with the RS-232 serial port or the Ethernet connection, via the 10micron ASCOM driver or the Meade compatible command protocol. Furthermore, a dedicated software (also included with the mount) can be used to create a “virtual keypad” replicating exactly the functions of the physical keypad. The RS-232 port can also be used to control an external dome. This flexibility makes the mount an ideal mount for observatories and remote observing sites.

The object database contains many star catalogs and deep-sky objects up to the 16th magnitude. Solar system objects can be tracked so that their motion is compensated with respect to the stars. You may load orbital elements of comets, asteroids and artificial satellites into the mount, so that these objects can be tracked directly using the keypad (without any external PC). Pointing is made accurate through the usage of a model containing up to 100 stars, which allows for the correction of the classical polar alignment and conic errors, and also of the most important flexure terms of the optical tube. In this way, it is possible to obtain pointing accuracies of the order of 20 arcseconds RMS. The same model can be used in order to obtain the maximum tracking accuracy, compensating also for the atmospheric refraction (depending on the local atmospheric pressure and temperature).

A series of auxiliary functions is provided to help the user with quickly aligning the mount to the celestial pole. You may also save and recover the alignment data of different observing sessions. This function is very useful if you have many instruments in different setups, each one requiring different flexure corrections. Tracking through the meridian, a typical problem with german mounts, is solved allowing for tracking for up to 30° past the meridian (configurable), in both directions. In this way, any object can be tracked for at least four hours.

Tracking through the meridian, a typical problem with German equatorial mounts, is solved allowing tracking for up to 30° past the meridian (configurable), in both directions. In this way, any object can be tracked for at least four hours.

The tracking accuracy makes autoguiding unnecessary for many uses. The absolute encoders on both axes allow the mount to obtain a typical tracking error below 1 arcsecond. It is possible to autoguide using the ST4-compatible port or through the serial/Ethernet connection, with a guide rate configurable from 0.1x to 1x. The guide rate can be automatically corrected for the declination of the target so that there is no need for recalibrating the autoguide when observing at different declinations.



The Ultra-Portable version is perfect for mobile and observatory use.

Other functions of the mount are designed in order to obtain the maximum flexibility in the most usage conditions. The mount can be switched on and off using the hand pad, power switch on the control box, or the dedicated relay connector on the control box panel. You can use the electronic balance functions in order to balance your instrument without unlocking the clutches. The mount can be parked in different user-defined positions. An external dome can be controlled directly using the RS-232 serial port, avoiding the need for using a dedicated external PC. Once configured with your instrument parameters, the firmware is able to make all the calculations required for positioning the dome slit in front of your optical tube, for almost all instrument configurations.

 The GM2000 can be supplied in a special version for very low temperature operations.


The 10Micron GM2000HPS Ultra-Portable basic package includes:
  • GM2000HPS Monolithic or Ultra Portable mount head with absolute encoders on both axes
  • Control box and stand-alone hand pad with internal modeling and control software
  • QCI 2.8 internal software
  • Counterweight shaft
  • Mount cables
  • AC/DC power supply (Monolithic) or DC power supply (Ultra-Portable)
  • Integrated WiFi
The complete package for the GM2000HPS Ultra-Portable adds:
  • 3-inch Losmandy style dovetail clamp
  • One 13.2 lbs. (6 kg) counterweight
  • One 26.4 lbs. (12 kg) counterweight
  • Tripod adapter
  • Centaurus aluminum tripod
  • Mount head protective bag
  • Two hard cases for the mount head and one for counterweights, electronics and small accessories
  • Tripod soft case
  • Perseus software
