Berlebach PLANET Tripod — A Rock-Solid Foundation for Serious Astronomy

The Berlebach PLANET is the most stable portable astronomy tripod in Berlebach's lineup, built from solid European ash wood with oversized cross-sections and 105 mm leg joints that deliver exceptional torsional stiffness and vibration damping. Available from Deep Space Products with expert guidance on mount adapter selection, the PLANET supports up to 220 lbs (100 kg) — enough for mid-range equatorial mounts, large alt-azimuth systems, and fully loaded imaging rigs — while settling vibrations in 1–2 seconds versus the 5–8 seconds typical of aluminum tripods.

Why ash wood outperforms metal for telescope support

The choice of tripod material directly affects your imaging and observing quality, and it's a decision many astronomers don't think about until they're fighting vibrations in the field. Ash wood has inherently superior vibration damping characteristics compared to aluminum and steel. Research on material attenuation confirms that wood absorbs and dissipates mechanical energy faster than metal, which tends to ring and transmit vibrations through the structure. In practical terms, this means that when you touch the focuser, bump the eyepiece, or deal with a gust of wind, an ash wood tripod like the PLANET returns to stillness far faster than a metal alternative.

Berlebach has been engineering wooden tripods in Mulda, Germany — in the Erzgebirge region known for its woodworking tradition — since 1898. The PLANET represents over 125 years of refinement in wood selection, joinery, and clamping design. Every PLANET tripod is custom-made to order from sustainably sourced European ash, kiln-dried and machined to tight tolerances. This isn't a mass-produced accessory — it's a precision-engineered support system.

Engineering that delivers stability where it counts

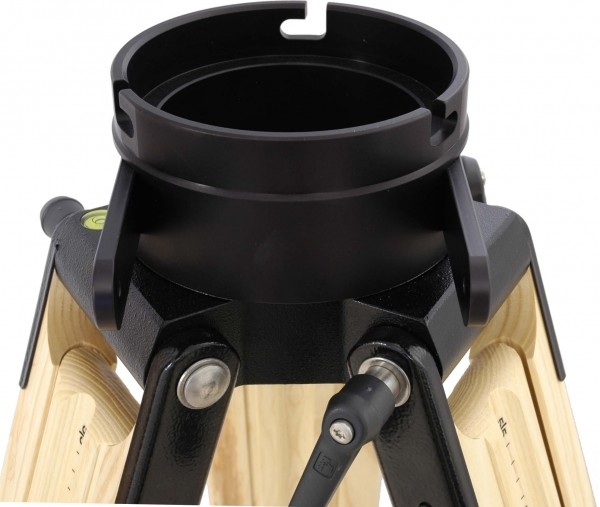

The PLANET's design centers on its ultra-flat tripod head with 105 mm wide leg joints — the widest in the Berlebach astronomy lineup. This oversized connection point is the critical engineering detail: a wider head-to-leg interface means greater torsional rigidity, which translates directly to less side-to-side play and more confident tracking. The legs themselves use large wood cross-sections that resist flexing under load, and the clamping elements lock each leg extension firmly in place.

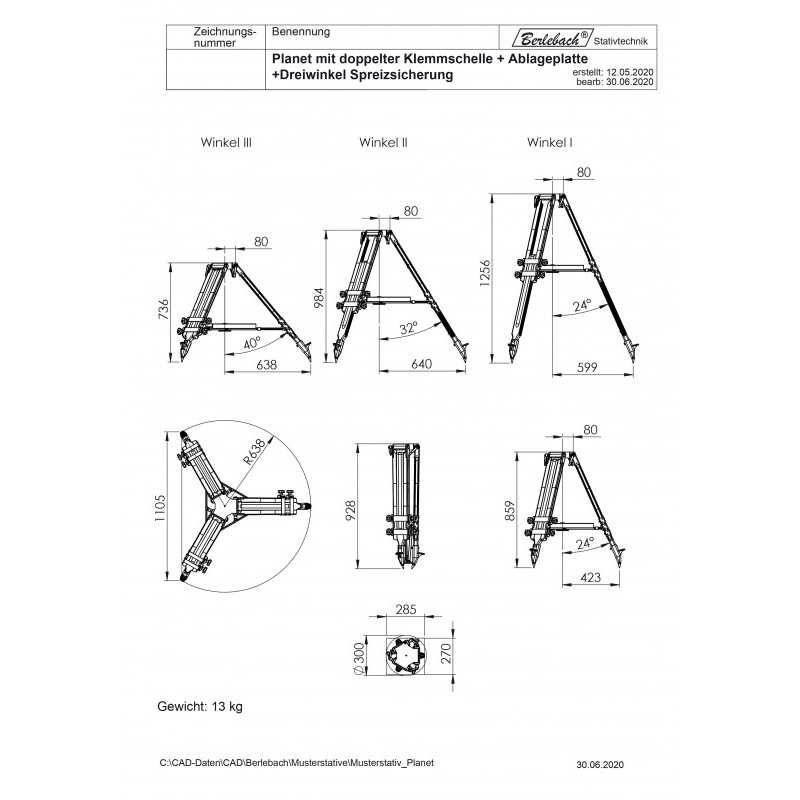

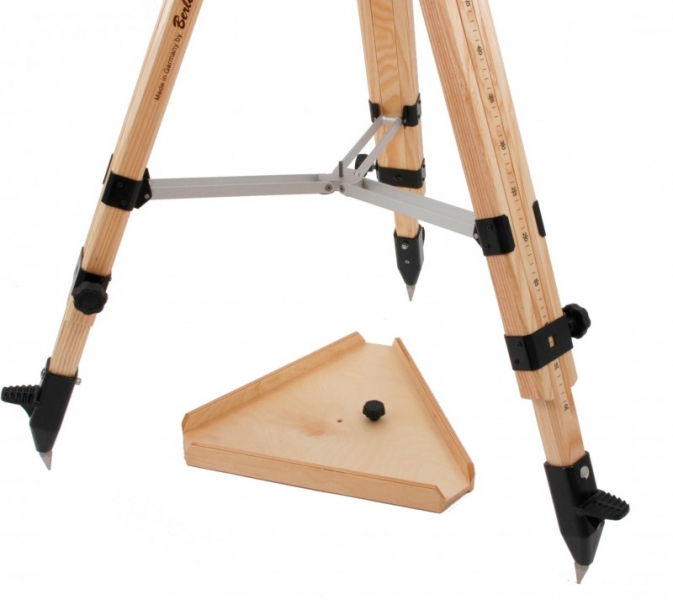

With a fixed tripod leg angle of 24°, the PLANET prioritizes stability over compactness. The standard configuration includes a spread stopper and 37 cm accessory tray — both functional and structural, since the tray and spreader system ties the legs together and further reduces any tendency to splay under heavy loads. For even more rigidity, optional double cable clamps increase the rated load capacity to 130 kg (287 lbs) while reducing maximum height by about 10 cm.

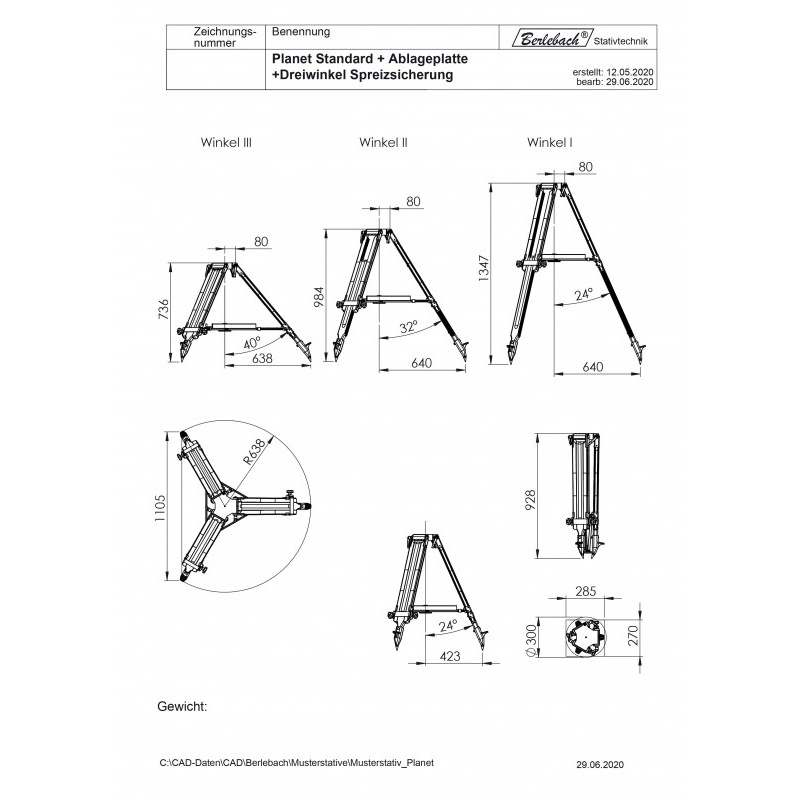

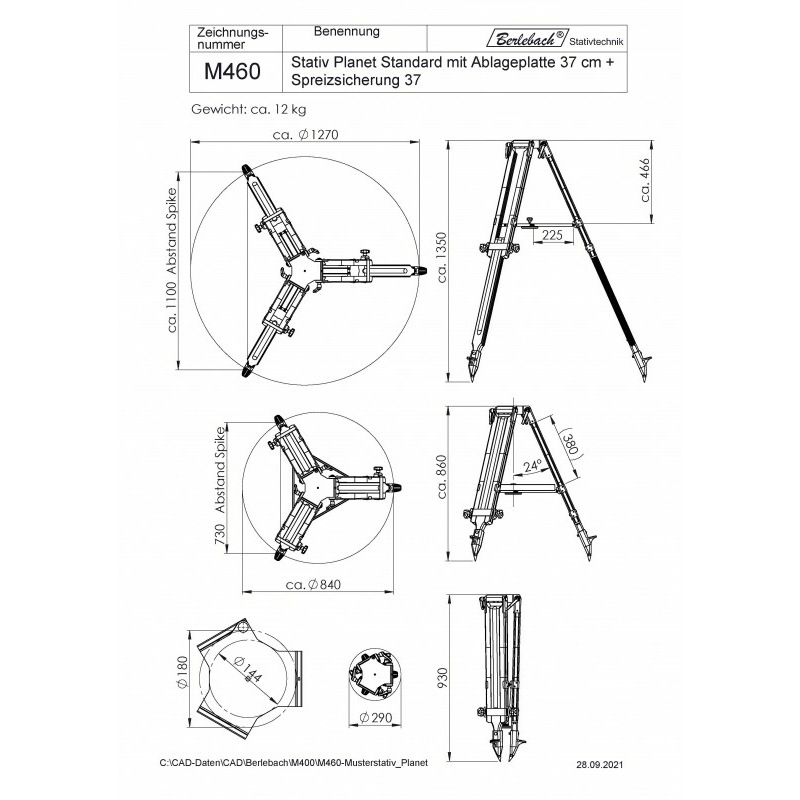

Specifications

Compatible with virtually any telescope mount

One of the PLANET's strongest practical advantages is the breadth of its mount adapter system. Berlebach manufactures custom head plates for over 50 telescope mounts — from lightweight harmonic drives like the ZWO AM5 and Pegasus NYX-101 to mid-range workhorses like the iOptron CEM60/CEM70, EQ6-class mounts, and 10Micron GM1000HPS, all the way up to heavier systems like the 10Micron GM2000HPS II, Astro-Physics Mach1GTO and Mach2GTO. Astro-Physics chose the PLANET as the platform for their own tripod offering, which speaks to the confidence the industry places in this design.

When ordering through Deep Space Products, you select your mount adapter at checkout. If you're unsure which adapter fits your mount — or if you're planning a new rig and want to ensure compatibility — DSP's team can walk you through the options. For ZWO AM5 users specifically, Berlebach recommends adding the base plate (#5006180) for better anti-twist stability and clearance around the azimuth adjustment knobs.

Choosing the right Berlebach for your setup

The PLANET sits at the heart of Berlebach's astronomy tripod range, and it's the right choice for most serious setups. If you're running a mid-range equatorial mount with a refractor or Newtonian in the 4–8 inch range — or an alt-azimuth mount with a similar payload — the PLANET provides more stability than you'll likely ever need. For lighter setups built around small refractors (80 to 120mm class) and compact mounts, the Berlebach UNI series offers a lighter, more affordable alternative that still delivers excellent ash wood vibration damping.

If you're building a portable rig around a heavier observatory-class mount and need even more capacity, the Berlebach GRAVITON is engineered for the heaviest payloads in the lineup. And for those who want the PLANET's capacity with a height-adjustable geared center column for visual observing comfort, consider the PLANET K70 variant.

Talk to Deep Space Products about your tripod setup

Matching a tripod to your mount and imaging goals isn't always straightforward — adapter selection, double clamp decisions, and overall system weight all matter. Deep Space Products has hands-on experience with the full Berlebach lineup and can help you configure the right PLANET for your specific rig. Reach out to DSP before you order, and we'll make sure you get exactly what you need.
