10Micron AZ3000HPS Alt-Azimuth Mount

Starting Price: $20,028.00
Price as Configured: $20,028.00
Brand: 10Micron Astro Technologies / SKU: 10M-3000AZ
Please inquire for availability.
Recommended Add-ons and Accessories
Product Price Quantity

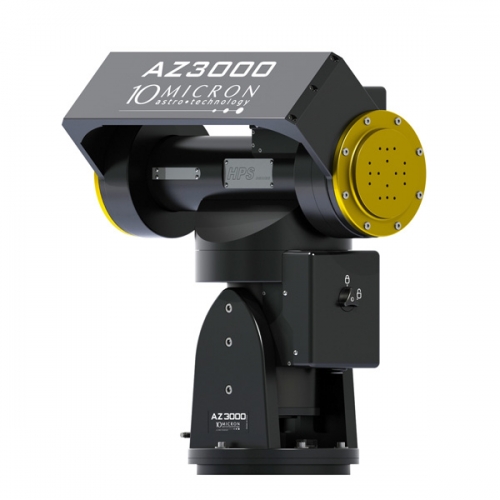

10M-300DAZ - 10Micron Double Telescope Package for AZ3000HPS (No Clamping Plates)
10M-300DAZ - 10Micron Double Telescope Package for AZ3000HPS (No Clamping Plates)
About This Product
This special accessory for the AZ3000HPS mount allows the use of two or more telescopes in a side by side setup, optimizing the load of the Mount and taking advantage of the altazimuth configuration. The double telescope option is compatible with all the plates used on the GM3000 series mounts as well as the dual plates making it possible to use 4 telescopes, 2 per side. Designed to offer a great sturdiness with no flexure, it is made from machined aluminum alloy. You can order the AZ2000HPS mount already configured with the double telescope option, or buy it afterward as an accessory.
$3,056.00 each
10M-3083 - 10Micron 44 lbs. (20 kg) Counterweight (50 mm bore) for 3000HPS Mounts
10M-3083 - 10Micron 44 lbs. (20 kg) Counterweight (50 mm bore) for 3000HPS Mounts
About This Product
This 20 KG counterweight is exclusively designed for GM3000 mounts; a precise 50mm hole offers a smooth movement on the shaft and facilitates the balancing operations; the stainless steel guarantees no corrosion. For the best safe tightening, the counterweight is provided with a not protruding set screw.
$433.00 each
View More Add-ons and Accessories

Recommended Add-ons and Accessories

Enter the quantity desired for each item and click the close button to continue with your purchase.
10M-300DAZ - 10Micron Double Telescope Package for AZ3000HPS (No Clamping Plates)
10M-300DAZ - 10Micron Double Telescope Package for AZ3000HPS (No Clamping Plates)
$3,056.00
« Back to All Add-ons
10M-300DAZ - 10Micron Double Telescope Package for AZ3000HPS (No Clamping Plates)
About This Product
This special accessory for the AZ3000HPS mount allows the use of two or more telescopes in a side by side setup, optimizing the load of the Mount and taking advantage of the altazimuth configuration. The double telescope option is compatible with all the plates used on the GM3000 series mounts as well as the dual plates making it possible to use 4 telescopes, 2 per side. Designed to offer a great sturdiness with no flexure, it is made from machined aluminum alloy. You can order the AZ2000HPS mount already configured with the double telescope option, or buy it afterward as an accessory.
10M-3083 - 10Micron 44 lbs. (20 kg) Counterweight (50 mm bore) for 3000HPS Mounts
10M-3083 - 10Micron 44 lbs. (20 kg) Counterweight (50 mm bore) for 3000HPS Mounts
$433.00
« Back to All Add-ons
10M-3083 - 10Micron 44 lbs. (20 kg) Counterweight (50 mm bore) for 3000HPS Mounts
About This Product
This 20 KG counterweight is exclusively designed for GM3000 mounts; a precise 50mm hole offers a smooth movement on the shaft and facilitates the balancing operations; the stainless steel guarantees no corrosion. For the best safe tightening, the counterweight is provided with a not protruding set screw.
10M-3090 - 10Micron Steel Pier Adapter Flange for the 3000HPS Mounts
10M-3090 - 10Micron Steel Pier Adapter Flange for the 3000HPS Mounts
$274.00
« Back to All Add-ons
10M-3090 - 10Micron Steel Pier Adapter Flange for the 3000HPS Mounts
About This Product
This Pier flange adapter is made of electroplated steel and it’s designed to accommodate the GM/AZ3000 mounts on top of a flat-topped pier. One of these is supplied with the mandatory shipping kit (#10M3199).
10M-3545 - 10Micron Clamping Plate Flange Adapter for 3000HPS Mounts
10M-3545 - 10Micron Clamping Plate Flange Adapter for 3000HPS Mounts
$273.00
10M-DSP-2060 - Portable AC Power Supply, Switching Type, 110-240V Input / 24V 6.67A Output for All HPS Mounts
10M-DSP-2060 - Portable AC Power Supply, Switching Type, 110-240V Input / 24V 6.67A Output for All HPS Mounts
$80.00
« Back to All Add-ons
10M-DSP-2060 - Portable AC Power Supply, Switching Type, 110-240V Input / 24V 6.67A Output for All HPS Mounts
About This Product
This Switching Power Supply is a very high quality and reliable device; it accepts 110 to 240V AC input; the output ensures the proper 24V, 6.67A (160W) power supply to the v.2 GM2000HPS, GM3000HPS, GM4000HPS mounts.
10M-2011 - 10Micron Controlbox Holder for 8-12" Round Pier (2000HPS and 3000HPS Mounts)
10M-2011 - 10Micron Controlbox Holder for 8-12" Round Pier (2000HPS and 3000HPS Mounts)
$242.00
« Back to All Add-ons
10M-2011 - 10Micron Controlbox Holder for 8-12" Round Pier (2000HPS and 3000HPS Mounts)
About This Product
This accessory allows to accommodate the 10Micron electronic control box on round metal pier. Made of fine machined black anodized aluminum.
10M-3100 - 10Micron Wooden Shipping Pallet-Box for 3000HPS Mounts
10M-3100 - 10Micron Wooden Shipping Pallet-Box for 3000HPS Mounts
$274.00
« Back to All Add-ons
10M-3100 - 10Micron Wooden Shipping Pallet-Box for 3000HPS Mounts
About This Product
Shipping wooden pallet-box for the GM/AZ3000 mounts, for safe shipping and for warranty repair return (NOT included in the mount’s standard pack ). It is included in the GM/AZ3000 mandatory shipment kit (#10M3199).
10M-3199 - 10Micron Mandatory Shipping Kit for 3000HPS mounts
10M-3199 - 10Micron Mandatory Shipping Kit for 3000HPS mounts
$548.00
« Back to All Add-ons
10M-3199 - 10Micron Mandatory Shipping Kit for 3000HPS mounts
About This Product
The GM3000 mandatory shipping KIT (also suitable for the AZ3000 HPS) is composed of the GM3000 100x80x60cm shipping wooden pallet-box (#10M3100)and the pier adapter (#10M3090). Both are necessary items when the mount will be shipped. Shipping charges will be calculated individually for each destination and will be billed separately. The included pier adapter (#10M3090) will be needed later when mounting the GM 3000 onto a pier. This strong plate of solid steel is mandatory not only to secure the mount on the pallet during transport but also later to translate the full loading capacity of the Mount onto the pier.
10M-3AZC - 10Micron Special Cold Temperature Option for AZ 3000HPS Mounts
10M-3AZC - 10Micron Special Cold Temperature Option for AZ 3000HPS Mounts
$1,362.00
« Back to All Add-ons
10M-3AZC - 10Micron Special Cold Temperature Option for AZ 3000HPS Mounts
About This Product
The GM3000 and AZ3000 mounts are available in a special version for very low temperature operations. This option allows the Mount to operate until -30°C (-22° F) and features the following special modifications: - Special low-temperature lubricants certified until -60°C or lower - Special copper wiring, silicone sheathed - Electronic components certified for temperatures down to -40°C - Endurance tested at low temperatures in our laboratory All 10Micron mounts feature special systems in their mechanics in order to compensate thermal variations. This option is intended for brand new mounts to be ordered; contact us for already delivered mounts.
QTY:
Price as Configured: $20,028.00
We cannot sell 10Micron products to customers outside of North and South America
Product Help
Need help deciding?
Tell us what you're looking for, and we’ll point you in the right direction. .
Technical Specifications

Type
Altazimuth German Mount
Weight (mount) 65 kg – 143 lbs, without accessories
Instrument payload capacity 100 kg (220 lbs) for standard single telescope configuration
100 + 65 kg (220 +143 lbs) for optional dual telescope configuration
Azimuth fine adjustment range (for initial orientation) +/− 10°
Counterweight shaft 50 mm diameter, stainless steel
Axes 80/50 mm diameter, alloy steel
Bearings Pre-loaded tapered roller bearing
Worm wheels 315 teeth, 247 mm diameter, B14 bronze (AZ)
255 teeth, 192 mm diameter, B14 bronze (Dec)
Worm screw 32mm and 24mm, tempered alloy steel, ground and lapped
Transmission system Backlash-free system with timing belt and automatic backlash recovery
Motors 2 axes servo brushless
Power supply 24 V DC
Power consumption ~ 1 A while tracking ~ 3 A at maximum speed ~ 5 A peak
Go-to speed Adjustable from 2°/s to 12°/s.
Special version 48V: from 2°/sec to 20°/sec
Pointing accuracy < 20” with internal multiple-stars software mapping
Average tracking accuracy < +/− 1" typical for 15 minutes (< 0.7" RMS) with internal multiple-stars software mapping and compensation of flexure and polar alignment errors
Security stops +/− 150° in AZ (software) +/− 155° in AZ (mechanical)
+/− 95° in Alt (software) +/− 100° in Alt (mechanical)
Operational temperature range (standard) - 15° C to + 35° C (+ 05° F to + 95° F)
Storage temperature range - 40° C to + 50° C (- 40° F to +122° F)
Special operational temperature range Optional, for very low-temperature operations: contact us for more details
Communication ports RS–232 port; GPS port; autoguide ST-4 protocol port; Ethernet port
Database Stars: by name, Bayer designation, Flamsteed designation, Bright Star Catalogue, SAO, HIP, HD, PPM, ADS, GCVS. Deep-sky: M, NGC, IC, PGC ,UGC limited up to mV = 16. Solar system: Sun, Moon, planets, asteroids, comets, artificial satellites. Equatorial and altazimuth coordinates. User-defined objects, fast slewing positions.
Firmware features User-defined mount parking position, 2-stars and 3-stars alignment function, up to 100 alignment stars for modeling, correction of polar alignment and orthogonality errors, estimate of average pointing error, storage of multiple pointing models, sidereal, solar and lunar tracking speed adjustable on both axes, declination-based autoguide speed correction, adjustable horizon height limit, pointing and tracking past meridian,, assisted balance adjustment, manual or GPS based time and coordinates setting, dome control via RS-232, configurable atmospheric refraction, network settings, comets and asteroids filter, multi-language interface. Remote Assist via an Internet connection.
PC control Remote control via RS-232 or Ethernet; proprietary ASCOM driver or Meade compatible protocol; update of firmware and orbital elements of comets, asteroids, and artificial satellites via RS-232 or Ethernet; virtual control panel via RS-232 or Ethernet. Wi-Fi included.
