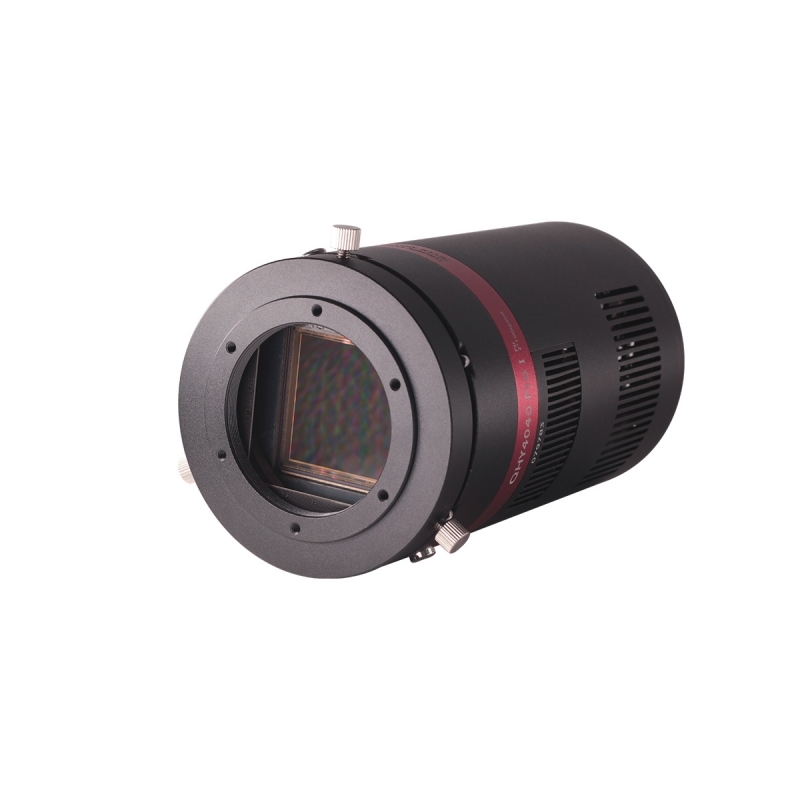

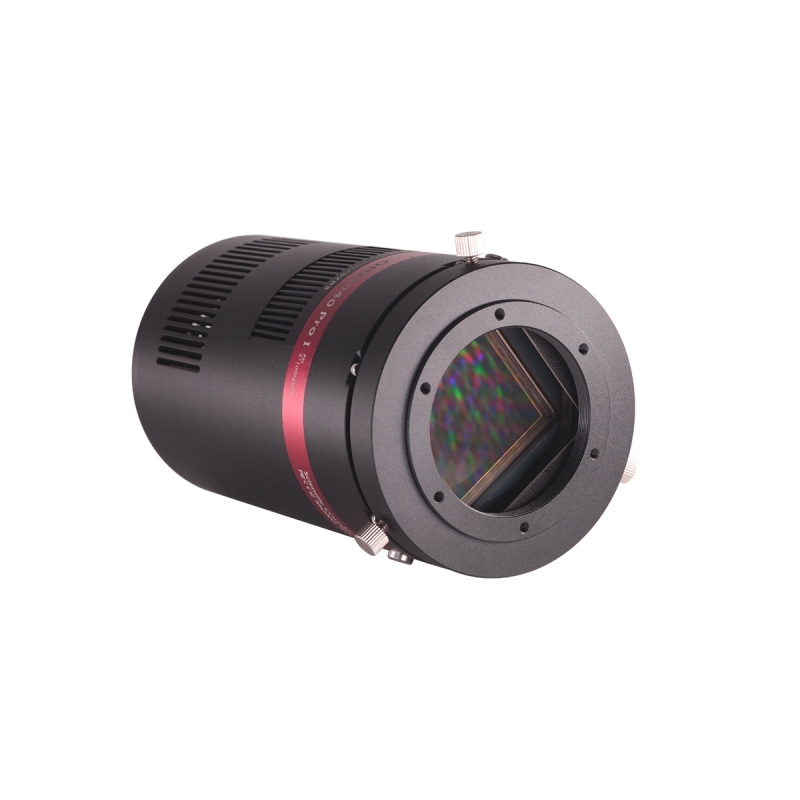

QHY4040 Scientific Cooled CMOS Camera

QHY4040 Scientific Cooled CMOS Camera

Starting Price: $15,190.00
Price as Configured: $15,190.00
Brand: QHYCCD / SKU: QHY-4040 (100110)

QHY4040/QHY4040PRO is a scientific cooled CMOS camera with GSENSE4040 4K*4K sCMOS sensor. It has a 36.9mm x 36.9mm square sensor with 9.0um pixels in a 4k x 4k array. It has a 36.9*36.9mm image area. 9um pixel size.

QHY4040 has the FSI version, supports a single 12BIT channel readout (high gain channel only). The standard version is two-stage TEC cooling. QHYCCD can provide the water cooling version as requested. The typical application of this camera is imaging, spectrum, dynamic x-ray DR, satellite tracking, etc.

SHIPPING NOTE: Shipping cost will be determined after the order is made and must be paid before the camera will ship. A shipping quote can be obtained on request.

View Add-ons and Accessories

Recommended Add-ons and Accessories

Enter the quantity desired for each item and click the close button to continue with your purchase.
QHY-090036 - QHY Level Converter Board
QHY-090036 - QHY Level Converter Board
$66.00
Qty:
View Details
« Back to All Add-ons
QHY-090036 - QHY Level Converter Board
About This Product
Models Match Cameras
QHYCCD-LCB-6PIN-1.8V QHY600PRO 6pin QHY411 6pin QHY461 6pin



QHY268PRO 6pin QHY4040PRO 6pin

QHYCCD-LCB-6PIN-2.5V QHY2020 6pin QHY42PRO 6pin

Contact us to specify the camera model.

Please contact us to order a QHY product

Product Help
Need help deciding?
Tell us what you're looking for, and we’ll point you in the right direction. .
The QHY4040 standard version is the single-channel ADC output version. It uses the High Gain Channel to output the low readout noise image. It supports both live video mode and single-frame mode. In single-frame mode. it works at a low CMOS-driven speed. The behavior of the noise performance is the same with the 8FPS@16BIT mode in Live video mode. In live video mode, it supports five different CMOS clocks. Max Frame rate from 8FPS to 20FPS.
The QHY4040 has zero amplifier glow.
The QHY4040 can get about max 35C to 40C below ambient.
QHY4040 supports hardware exposure ending signal output which can be used for high precise time-domain imaging. This signal can be measured by an external timing base and you will know the precise time of the starting and ending exposure time.
QHY4040 supports continuous live video mode, single-frame mode, and burst mode. In the live video mode, the camera is free-running to capture the images. In single-frame mode, the camera will capture one frame when you send the start exposure command. In burst mode, the camera will be in idle status. You can define how many frames will be output; and after you send the start exposure command, it will start to capture these frames and then stop output. In both single-frame mode and burst mode, the timing is in sync with the start exposure command. It is beneficial for the high precision timing record work when working with the hardware exposure ending signal.
