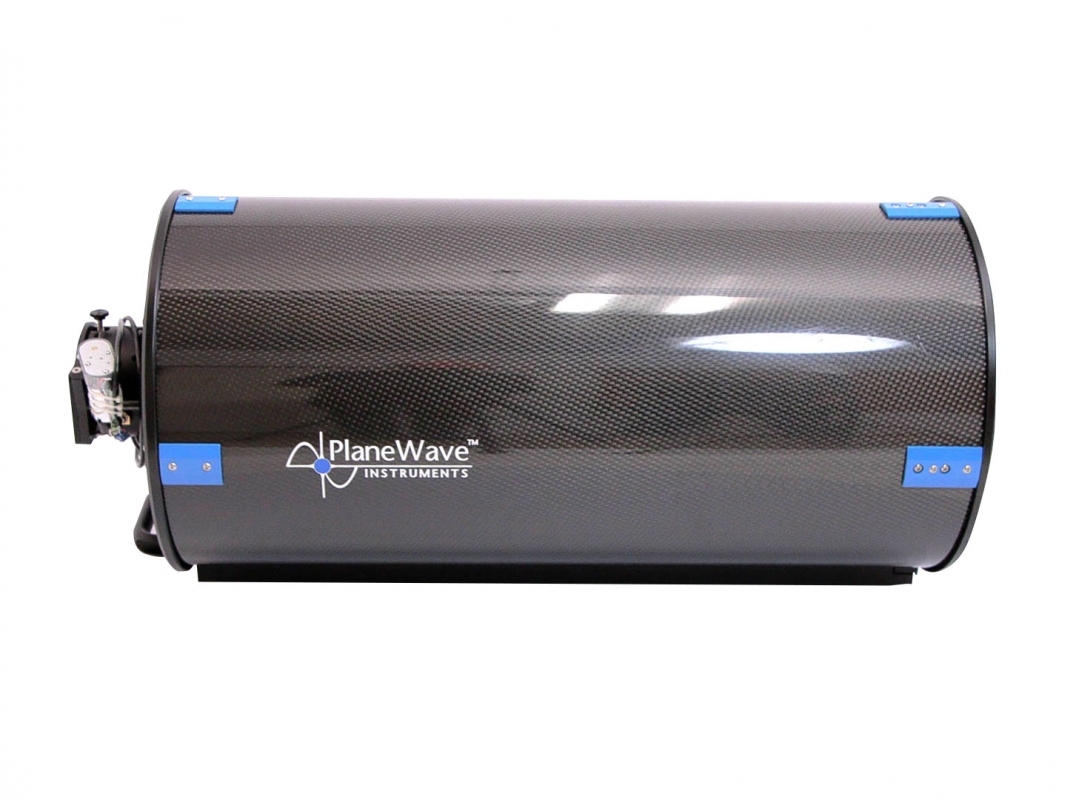

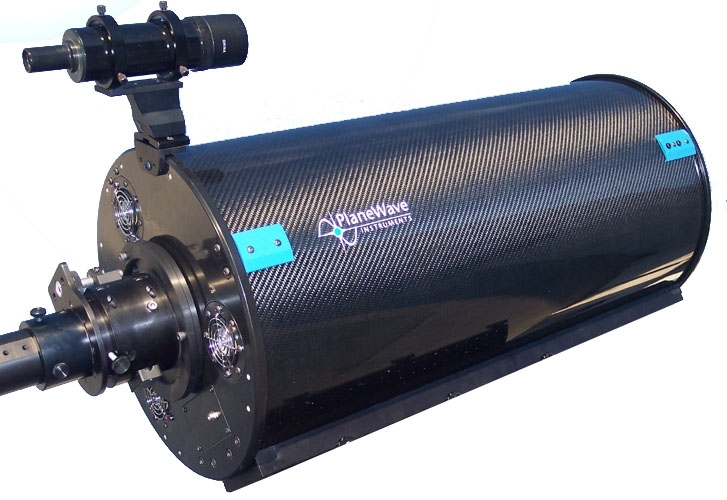

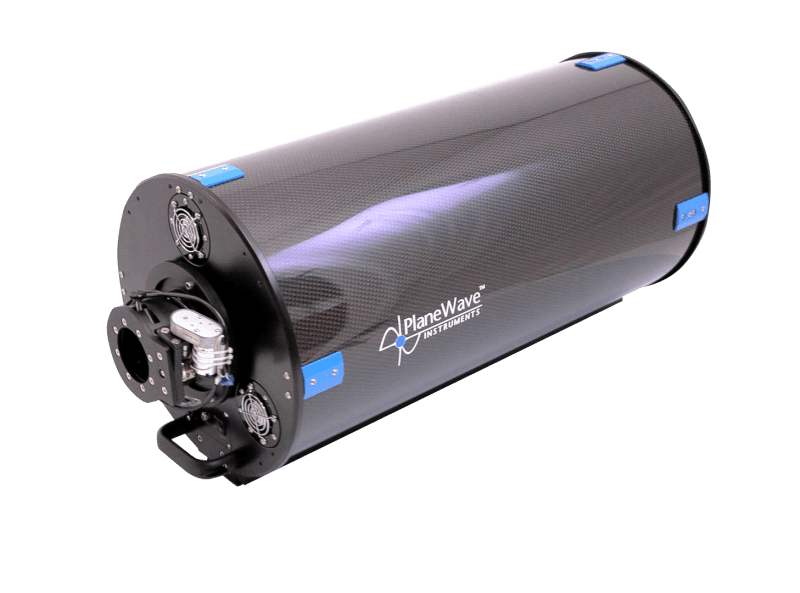

PlaneWave CDK12.5 Telescope

Starting Price: $13,000.00
Price as Configured: $13,000.00
Brand: PlaneWave Instruments / SKU: PW-125104Q
The CDK12.5 now includes the EFA for automated focus and temperature – a $920 value!

The CDK12.5 from PlaneWave Instruments represents a fusion of precise engineering and innovative design tailored for the avid astrophotographer and the discerning astronomer. With its advanced technology and refined design, the CDK12.5 delivers exceptional image quality for a range of observational and scientific applications.

The CDK12.5 stands out with its notable specifications and features:
  • 12.5-inch (318 mm) aperture
  • 2541 mm focal length
  • f/8 focal ratio
  • 265 mm back focus from mounting surface
  • Perfectly flat field across the entire 52 mm image circle
  • No off-axis coma or astigmatism
  • Rock-solid fused silica mirrors with low thermal expansion
  • Lightweight and rigid carbon fiber optical tube assembly
  • EFA box included for automated focusing and to monitor temperature and control fans via PWI4 Software (Hand control not included).
NOTE: Shipping cost will be determined after the order is made and must be paid before the telescope will ship. A shipping quote can be obtained on request.
Packaging (Required)
Recommended Add-ons and Accessories
Product Price Quantity
PW-125990 - PlaneWave Piggyback Dovetail Bar for CDK12.5
PW-125990 - PlaneWave Piggyback Dovetail Bar for CDK12.5
About This Product
Piggyback dovetails for mounting accessories atop an optical tube. These dovetails accept Losmandy D-style accessories.
Piggyback Dovetail Assemblies come with mounting brackets and a Losmandy style dovetail for mounting accessories on your CDK14, 17, 20, 24, and 700.
Please Note- For CDK17 users: 170990 – is for the current CDK17 design with 10.24” of backfocus
$460.00 each
PW-600182 - PlaneWave Keller EZ Saddle
PW-600182 - PlaneWave Keller EZ Saddle
About This Product
The Keller EZ Saddle (600182) accepts Losmandy D-style dovetail rails such as the CDK12.5, CDK14, and DeltaRho 350. This saddle comes standard with the L-350 mount and can also be attached to the outside arm of any L-series mount for dual-mounted OTA configurations.

The PlaneWave Wide Saddle (200919) comes standard with L-500, L-550, and L-600 mounts for securing CDK17, CDK 20, CDK24, and DeltaRho 500 telescopes.
$460.00 each
PW-600196 - PlaneWave Hand Control for EFA Kit
PW-600196 - PlaneWave Hand Control for EFA Kit
About This Product
The EFA (Electronic Focusing Accessory) control box can be mounted to the back plate of any PlaneWave telescope OTA (12.5 through 24 inches). The EFA Kit reads the primary mirror and ambient temperature sensors. The EFA controls the fan systems that are built into each telescope.

A Hand Controller is provided to control an optional Focuser or Rotator when standing at the eyepiece. The EFA kit comes with PlaneWave Interface (PWI4), a software package that controls all EFA functions from a PC. Cables and adapters are provided to attach the EFA kit to a PC. The EFA kit is ASCOM compatible.
$350.00 each
PW-125150 - PlaneWave Counterweight Accessory for CDK12.5
PW-125150 - PlaneWave Counterweight Accessory for CDK12.5
About This Product
This PlaneWave counterweight accessory mounts to the dovetail bar of the CDK12.5 for critical balance in declination. The kit comes with a mounting bracket and three 0.5lb weights. Additional weights (PW-125382) can be purchased separately. The kit can also be mounted on larger telescopes (CDK17, 20, 24) with the Piggyback Dovetail & Bracket.
$334.00 each
PW-125399 - PlaneWave Visual Adapter - CDK12.5
PW-125399 - PlaneWave Visual Adapter - CDK12.5
About This Product
This 2.75-2″ visual adapter slides into the Hedrick Focuser that comes standard on the CDK12.5. The adapter steps the 2.75″ opening down to 2″ for standard 2″ accessories.
The adapter also adds some additional spacing to optimize the use of a 2″ diagonal so focus is reached with most eyepieces.
$184.00 each
PW-125166 - PlaneWave Reducer 0.66X CDK12.5/14/17
PW-125166 - PlaneWave Reducer 0.66X CDK12.5/14/17
About This Product

This is a reducer designed specifically for flat field telescopes like the CDK. This reduces the f/ratio of the CDK telescope 66% and creates a 30mm illuminated field. The CDK12.5 f/8 telescope will be reduced down to f/5.3.

$1,600.00 each
View More Add-ons and Accessories

Recommended Add-ons and Accessories

Enter the quantity desired for each item and click the close button to continue with your purchase.
PW-125990 - PlaneWave Piggyback Dovetail Bar for CDK12.5
PW-125990 - PlaneWave Piggyback Dovetail Bar for CDK12.5
$460.00
« Back to All Add-ons
PW-125990 - PlaneWave Piggyback Dovetail Bar for CDK12.5
About This Product
Piggyback dovetails for mounting accessories atop an optical tube. These dovetails accept Losmandy D-style accessories.
Piggyback Dovetail Assemblies come with mounting brackets and a Losmandy style dovetail for mounting accessories on your CDK14, 17, 20, 24, and 700.
Please Note- For CDK17 users: 170990 – is for the current CDK17 design with 10.24” of backfocus
PW-600182 - PlaneWave Keller EZ Saddle
PW-600182 - PlaneWave Keller EZ Saddle
$460.00
« Back to All Add-ons
PW-600182 - PlaneWave Keller EZ Saddle
About This Product
The Keller EZ Saddle (600182) accepts Losmandy D-style dovetail rails such as the CDK12.5, CDK14, and DeltaRho 350. This saddle comes standard with the L-350 mount and can also be attached to the outside arm of any L-series mount for dual-mounted OTA configurations.

The PlaneWave Wide Saddle (200919) comes standard with L-500, L-550, and L-600 mounts for securing CDK17, CDK 20, CDK24, and DeltaRho 500 telescopes.
PW-600196 - PlaneWave Hand Control for EFA Kit
PW-600196 - PlaneWave Hand Control for EFA Kit
$350.00
« Back to All Add-ons
PW-600196 - PlaneWave Hand Control for EFA Kit
About This Product
The EFA (Electronic Focusing Accessory) control box can be mounted to the back plate of any PlaneWave telescope OTA (12.5 through 24 inches). The EFA Kit reads the primary mirror and ambient temperature sensors. The EFA controls the fan systems that are built into each telescope.

A Hand Controller is provided to control an optional Focuser or Rotator when standing at the eyepiece. The EFA kit comes with PlaneWave Interface (PWI4), a software package that controls all EFA functions from a PC. Cables and adapters are provided to attach the EFA kit to a PC. The EFA kit is ASCOM compatible.
PW-125150 - PlaneWave Counterweight Accessory for CDK12.5
PW-125150 - PlaneWave Counterweight Accessory for CDK12.5
$334.00
« Back to All Add-ons
PW-125150 - PlaneWave Counterweight Accessory for CDK12.5
About This Product
This PlaneWave counterweight accessory mounts to the dovetail bar of the CDK12.5 for critical balance in declination. The kit comes with a mounting bracket and three 0.5lb weights. Additional weights (PW-125382) can be purchased separately. The kit can also be mounted on larger telescopes (CDK17, 20, 24) with the Piggyback Dovetail & Bracket.
PW-125399 - PlaneWave Visual Adapter - CDK12.5
PW-125399 - PlaneWave Visual Adapter - CDK12.5
$184.00
« Back to All Add-ons
PW-125399 - PlaneWave Visual Adapter - CDK12.5
About This Product
This 2.75-2″ visual adapter slides into the Hedrick Focuser that comes standard on the CDK12.5. The adapter steps the 2.75″ opening down to 2″ for standard 2″ accessories.
The adapter also adds some additional spacing to optimize the use of a 2″ diagonal so focus is reached with most eyepieces.
PW-125166 - PlaneWave Reducer 0.66X CDK12.5/14/17
PW-125166 - PlaneWave Reducer 0.66X CDK12.5/14/17
$1,600.00
« Back to All Add-ons
PW-125166 - PlaneWave Reducer 0.66X CDK12.5/14/17
About This Product

This is a reducer designed specifically for flat field telescopes like the CDK. This reduces the f/ratio of the CDK telescope 66% and creates a 30mm illuminated field. The CDK12.5 f/8 telescope will be reduced down to f/5.3.

PW-600195 - PlaneWave Delta T Heater
PW-600195 - PlaneWave Delta T Heater
$750.00
« Back to All Add-ons
PW-600195 - PlaneWave Delta T Heater
About This Product
  • The Delta T controller is an optional accessory for dew prevention on CDK14 through CDK24 OTAs and the CDK700 system.
  • CDK14 to CDK24 and CDK700 telescopes come with primary and secondary mirror dew heating pads (CDK700 adds tertiary mirror heating), which are ready to accept the Delta T controller.
  • Controlled via PWI3 software for CDK14 through CDK24 OTAs (PWI2 for the CDK700).
PW-125395 - PlaneWave Adapter, CDK12.5 to IRF90 Rotating-Focuser
PW-125395 - PlaneWave Adapter, CDK12.5 to IRF90 Rotating-Focuser
$229.00
« Back to All Add-ons
PW-125395 - PlaneWave Adapter, CDK12.5 to IRF90 Rotating-Focuser
About This Product
This adapter provides 0.48 inches of length between the CDK12.5 telescope and the IRF90 Rotating Focuser, and is also required for use with the IRF90.

PW-125360 - PlaneWave Mounting Bracket for Finderscopes
PW-125360 - PlaneWave Mounting Bracket for Finderscopes
$58.00
« Back to All Add-ons
PW-125360 - PlaneWave Mounting Bracket for Finderscopes
About This Product
  • This is an L-shaped bracket that attaches in four different places on the back of any of the CDK models.
  • This is used to mount a finderscope or some other accessory.
  • Two 1/4-20 screws provided attach the bracket to the backplate of the telescope and two 10-32 threaded holes spaced at 1.450″ can be used to mount accessories too.
PW-125357-1 - PlaneWave SecureFit CCD Spacer - CDK12.5 (L=4.8")
PW-125357-1 - PlaneWave SecureFit CCD Spacer - CDK12.5 (L=4.8")
$290.00
« Back to All Add-ons
PW-125357-1 - PlaneWave SecureFit CCD Spacer - CDK12.5 (L=4.8")
About This Product
The SecureFit spacers are attached via four screws to the PlaneWave CDK12.5 Hedrick focuser. When using a PlaneWave SecureFit CCD adapter, the CCD camera is also attached via screws so there will be no slipping, movement, or falling equipment. The backfocus of the CDK12.5 is 7.2" from the fully racked Hedrick focuser.

L = 4.8"
PW-125357-2 - PlaneWave SecureFit CCD Spacer - CDK12.5 (L=3.5")
PW-125357-2 - PlaneWave SecureFit CCD Spacer - CDK12.5 (L=3.5")
$290.00
« Back to All Add-ons
PW-125357-2 - PlaneWave SecureFit CCD Spacer - CDK12.5 (L=3.5")
About This Product
The SecureFit spacers are attached via four screws to the PlaneWave CDK12.5 Hedrick focuser. When using a PlaneWave SecureFit CCD adapter, the CCD camera is also attached via screws so there will be no slipping, movement, or falling equipment. The backfocus of the CDK12.5 is 7.2" from the fully racked Hedrick focuser.

L = 3.5"
PW-125357-3 - PlaneWave SecureFit CCD Spacer - CDK12.5 (L=2.5")
PW-125357-3 - PlaneWave SecureFit CCD Spacer - CDK12.5 (L=2.5")
$290.00
« Back to All Add-ons
PW-125357-3 - PlaneWave SecureFit CCD Spacer - CDK12.5 (L=2.5")
About This Product
The SecureFit spacers are attached via four screws to the PlaneWave CDK12.5 Hedrick focuser. When using a PlaneWave SecureFit CCD adapter, the CCD camera is also attached via screws so there will be no slipping, movement, or falling equipment. The backfocus of the CDK12.5 is 7.2" from the fully racked Hedrick focuser.

L = 2.5"
PW-125370 - PlaneWave Adapter, 2.75" Hedrick Focuser to 2.7" AP Threads
PW-125370 - PlaneWave Adapter, 2.75" Hedrick Focuser to 2.7" AP Threads
$160.00
« Back to All Add-ons
PW-125370 - PlaneWave Adapter, 2.75" Hedrick Focuser to 2.7" AP Threads
About This Product
Adapter, 2.75″ Hedrick Focuser to 2.7″ AP Threads (only for CDK12.5): This adapter bolts onto the back of the Hedrick 2.75″ Focuser and provides female Astrophysics threads for use with AP accessories.
PW-125379 - PlaneWave Adapter, CDK12.5 to Optec TCF-S3
PW-125379 - PlaneWave Adapter, CDK12.5 to Optec TCF-S3
$160.00
« Back to All Add-ons
PW-125379 - PlaneWave Adapter, CDK12.5 to Optec TCF-S3
About This Product
This adapter provides space between the CDK12.5 telescope and the OPTEC TCF-S2 or TCF-S3.
OPTEC TCF- S2 (#125380) provides 0.46″ in length
OPTEC TCF-S3 (#125379) provides 0.26″ in length
PW-125380 - PlaneWave Adapter, CDK12.5 to Optec TCF-S2
PW-125380 - PlaneWave Adapter, CDK12.5 to Optec TCF-S2
$160.00
« Back to All Add-ons
PW-125380 - PlaneWave Adapter, CDK12.5 to Optec TCF-S2
About This Product
This adapter provides space between the CDK12.5 telescope and the OPTEC TCF-S2 or TCF-S3.
OPTEC TCF- S2 (#125380) provides 0.46″ in length
OPTEC TCF-S3 (#125379) provides 0.26″ in length
PW-125381 - PlaneWave Bracket, Dovetail Counterweight Adapter
PW-125381 - PlaneWave Bracket, Dovetail Counterweight Adapter
$138.00
« Back to All Add-ons
PW-125381 - PlaneWave Bracket, Dovetail Counterweight Adapter
About This Product
Bracket, Dovetail counterweight adapter ("D-Series" 3" Dovetail compatible clamp/saddle, part of PW-125150 KIT)
PW-125388 - PlaneWave Adapter, Low Profile 2.75" Focuser to SecureFit
PW-125388 - PlaneWave Adapter, Low Profile 2.75" Focuser to SecureFit
$213.00
« Back to All Add-ons
PW-125388 - PlaneWave Adapter, Low Profile 2.75" Focuser to SecureFit
About This Product
At 0.5″ in length, this low-profile adapter is designed to connect a 2.75″ focuser to a SecureFit spacer, offering a secure and precise fit with minimal added length.
PW-125915 - PlaneWave Ronchi Eyepiece and Adapter Kit for CDK12.5
PW-125915 - PlaneWave Ronchi Eyepiece and Adapter Kit for CDK12.5
$265.00
« Back to All Add-ons
PW-125915 - PlaneWave Ronchi Eyepiece and Adapter Kit for CDK12.5
About This Product
The Ronchi Eyepiece and Adapter Kit is available for CDK 12.5, CDK 14, CDK 17, CDK 20, and CDK 24.

This adapter kit includes 3 pieces: an adapter for the Hedrick Focuser, a Ronchi Eyepiece, and a Ronchi Eyepiece Spacer.
PW-600333 - PlaneWave Adapter, CDK12.5 to AP Female
PW-600333 - PlaneWave Adapter, CDK12.5 to AP Female
$173.00
« Back to All Add-ons
PW-600333 - PlaneWave Adapter, CDK12.5 to AP Female
About This Product
This adapter attaches directly to the CDK12.5 in place of the focuser and has female AP thread for attaching AP accessories.
ADAPTER, CDK12.5 (6 INCH "CUP") TO FEMALE AP THREAD (Mounted IN PLACE OF THE 2.75" FOCUSER) L=0.55"
QTY:
Price as Configured: $13,000.00

Product Help
Need help deciding?
Tell us what you're looking for, and we’ll point you in the right direction. .
CDK12.5’s Key Features
Large Aperture and Extended Focal Ratio
The CDK12.5 features a 318 mm aperture paired with an f/8 focal ratio. This combination provides superb depth of field and excellent resolution, making it highly effective for detailed lunar, planetary, and deep-sky imaging.

Advanced Optical Design
The CDK12.5 has a state-of-the-art Corrected Dall-Kirkham optical system, offering outstanding image clarity. This design eliminates off-axis coma and astigmatism and achieves a perfectly flat field, ensuring images are consistently sharp and detailed across the entire field with minimal post-processing adjustments.

Robust Mechanical Structure
Built with a carbon fiber optical tube, the CDK12.5 is lightweight and highly durable. Its design accounts for minimal thermal expansion, which ensures stable focus across a range of temperatures which is ideal for extended observing sessions in diverse environmental conditions.

High-Performance Mirrors and Coatings
Featuring fused silica mirrors, the CDK12.5 maintains precise optical alignment and surface accuracy under temperature shifts. The superior coatings enhance light transmission and reduce stray light, optimizing the telescope’s performance for demanding observational tasks.

Thermal Management
The CDK12.5 includes cooling fans and a system ready for Delta-T control to reach thermal equilibrium rapidly. This setup minimizes air turbulence inside the tube, reducing image distortion and maintaining consistent imaging quality.

Integrated Dew Control
This telescope integrates sophisticated dew prevention technology with heating pads managed through PlaneWave’s software. This system ensures that optical surfaces remain clear from condensation under varying humidity levels, maintaining clarity and performance during observational sessions.

Application-Specific Benefits
Astrophotography
With its precise optical system and stable performance, the CDK12.5 allows astrophotographers to capture stunning images of the cosmos with remarkable detail and clarity.

Astronomy Research
The reliable and detailed imaging capabilities of the CDK12.5 make it an excellent resource for academic institutions and observatories conducting sophisticated astronomical studies, including stellar photometry and minor planet tracking.

Visual Observations
The CDK12.5 excels in visual observation, offering vibrant and clear views, making it perfect for star parties and serious visual astronomy. Its large aperture and high-quality optical components provide stunning views of planetary, lunar, and deep-sky objects, enriching every visual experience.

Space Situational Awareness (SSA) and Space Domain Awareness (SDA)
The CDK12.5 also lends itself to Space Situational Awareness and Space Domain Awareness applications. Its capability to provide detailed observations can be essential for tracking and monitoring satellites and other space debris, contributing valuable data for space traffic management and safety initiatives.
