Pegasus Astro Scops Off-Axis Guider

Starting Price: $601.60
Price as Configured: $601.60
Brand: Pegasus Astro / SKU: PEG-SCOPSOAG

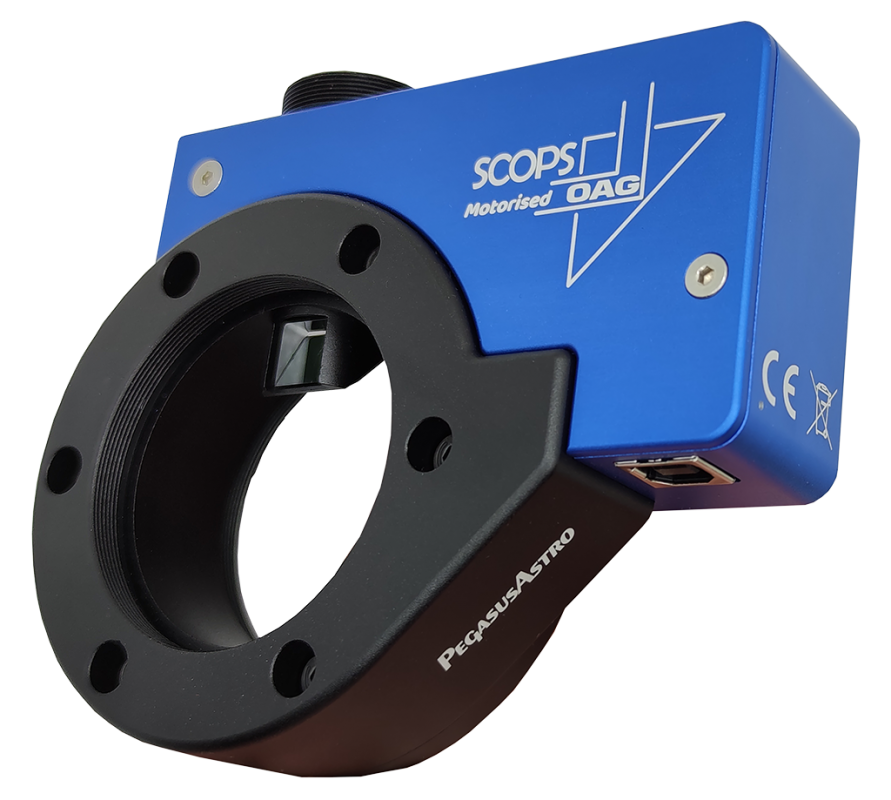

The Pegasus Scops OAG is a motorized Off Axis Guider. Specialized for remote operation, the Scops OAG allows you to adjust guide camera focus with great precision. It is easy to operate via ASCOM focus drivers or standalone software. This is the easy way to guide your EQ mount.
Recommended Add-ons and Accessories
Product Price Quantity

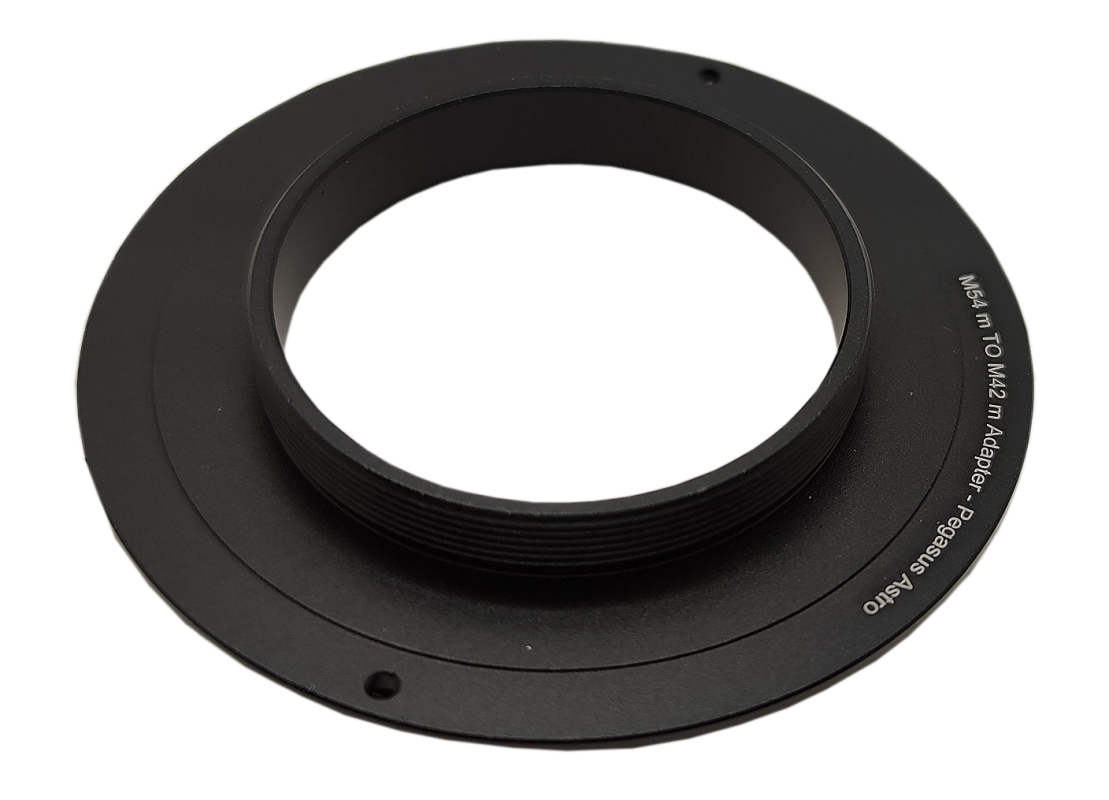

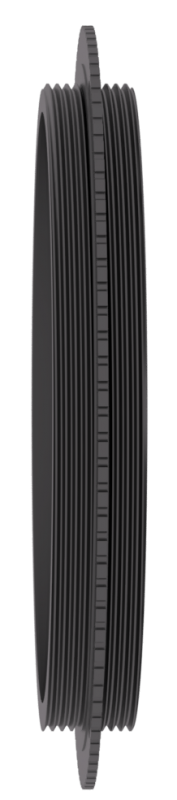

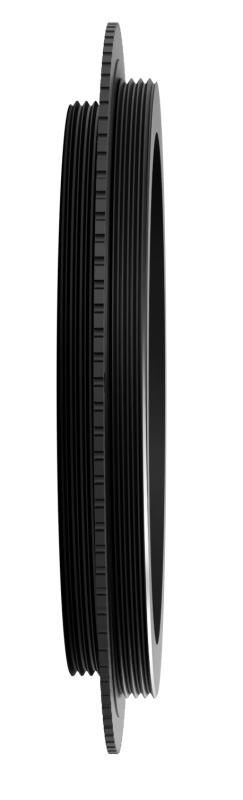

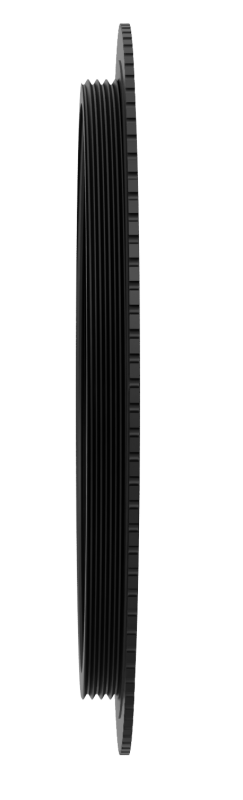

PEG-ADAPT-M54M-M42M - Pegasus Astro M54 Male to M42 Male Adapter
PEG-ADAPT-M54M-M42M - Pegasus Astro M54 Male to M42 Male Adapter
About This Product
  • Adapter Thickness: 2.0mm
  • Thread: Pitch 0.75mm / 6 mm length
  • M54 side has a M48 internal thread
$24.00 each

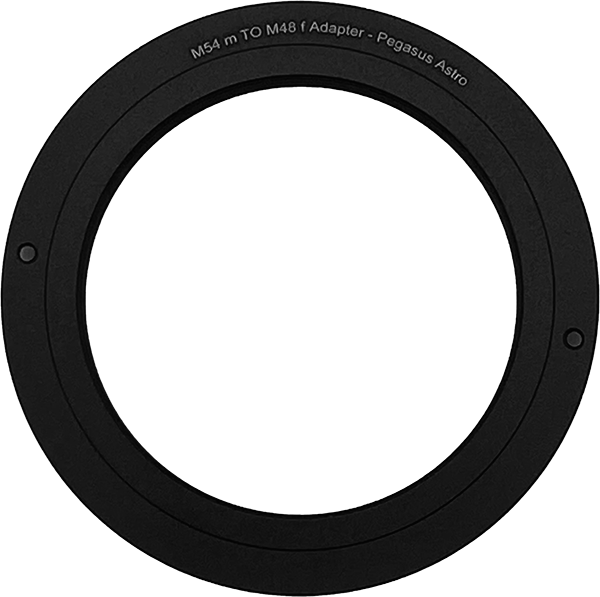

PEG-ADAPT-M54M-M48F - Pegasus Astro M54 Male to M48 Female
PEG-ADAPT-M54M-M48F - Pegasus Astro M54 Male to M48 Female
About This Product
  • Adapter Thickness: 2.0mm
  • Thread: Pitch 0.75mm / 4 mm length
  • $24.00 each

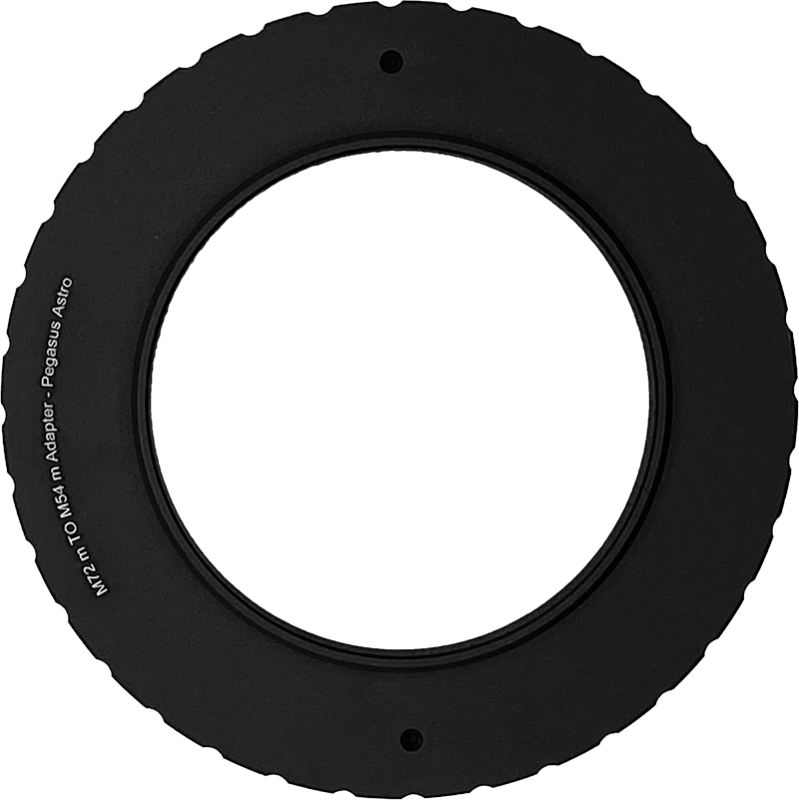

    PEG-ADAPT-M72M-M54M - Pegasus Astro M72 Male (Takahashi Thread) to M54 Male
    PEG-ADAPT-M72M-M54M - Pegasus Astro M72 Male (Takahashi Thread) to M54 Male
    About This Product
    • Adapter Thickness: 2.0mm
    • Thread: Pitch 0.75mm / 6 mm length
    • M54 side has a M48 internal thread
    $42.00 each

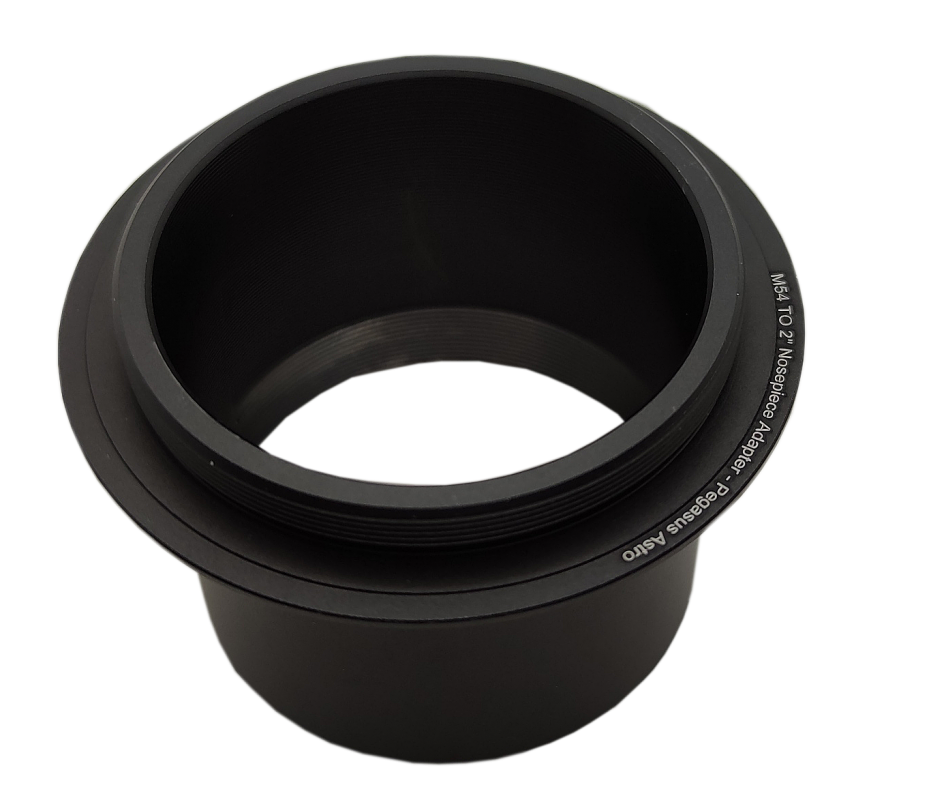

    PEG-ADAPT-M54M-2NP - Pegasus Astro M54 Male to 2" Nosepiece
    PEG-ADAPT-M54M-2NP - Pegasus Astro M54 Male to 2" Nosepiece
    About This Product
    • Total Nosepiece Length :35mm
    • Adapter Thickness : 1.5mm
    • Thread: Pitch 0.75mm / 6 mm length
    • Includes inner hole for 2” filter thread (M48)
    $30.00 each
    PEG-ADAPT-M54M-M42F - Pegasus Astro M54 Male to M42 Female
    PEG-ADAPT-M54M-M42F - Pegasus Astro M54 Male to M42 Female
    About This Product
    • Adapter Thickness: 2.0mm
    • Thread: Pitch 0.75mm / 6 mm length
    • M54 side has a M48 internal thread
    $24.00 each

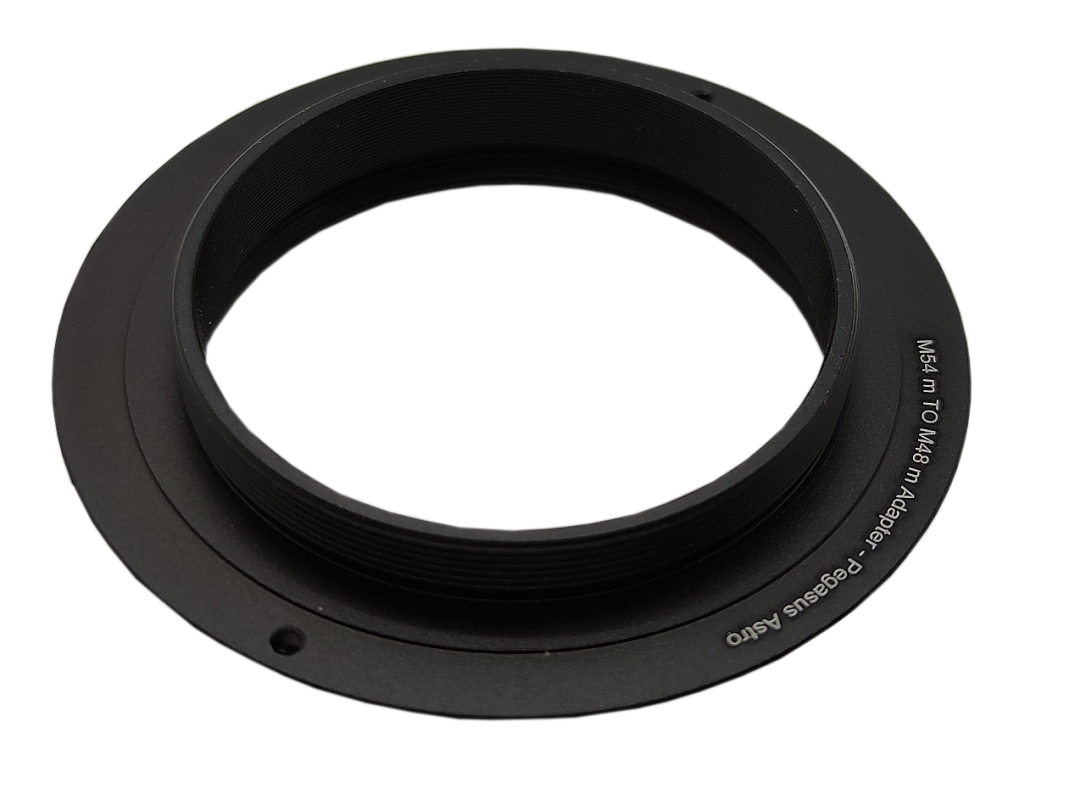

    PEG-ADAPT-M54M-M48M - Pegasus Astro M54 Male to M48 Male
    PEG-ADAPT-M54M-M48M - Pegasus Astro M54 Male to M48 Male
    About This Product
    • Adapter Thickness: 2.0mm
    • Thread: Pitch 0.75mm / 6 mm length
    • M54 side has a M48 internal thread
    $24.00 each
    PEG-ADAPT-M54M-M54M - Pegasus Astro M54 Male to M54 Male
    PEG-ADAPT-M54M-M54M - Pegasus Astro M54 Male to M54 Male
    About This Product
    • Adapter Thickness: 2.0mm
    • Thread: Pitch 0.75mm / 6 mm length
    • M54 side has a M48 internal thread
    $25.00 each
    QTY:
    Price as Configured: $601.60


    Product Help
    Need help deciding?
    Tell us what you're looking for, and we’ll point you in the right direction. .
    One Cable Operation

    Scops OAG does not require an external controller. Its body includes all electronics and only one USB cable is needed for power and control.

    Stepper Motor for Focus Precision

    A stepper motor ensures absolute position of the focus point. Profile each filter that might have a different focus position and just click the filter in the supplied software to precisely set the OAG to the stored position.

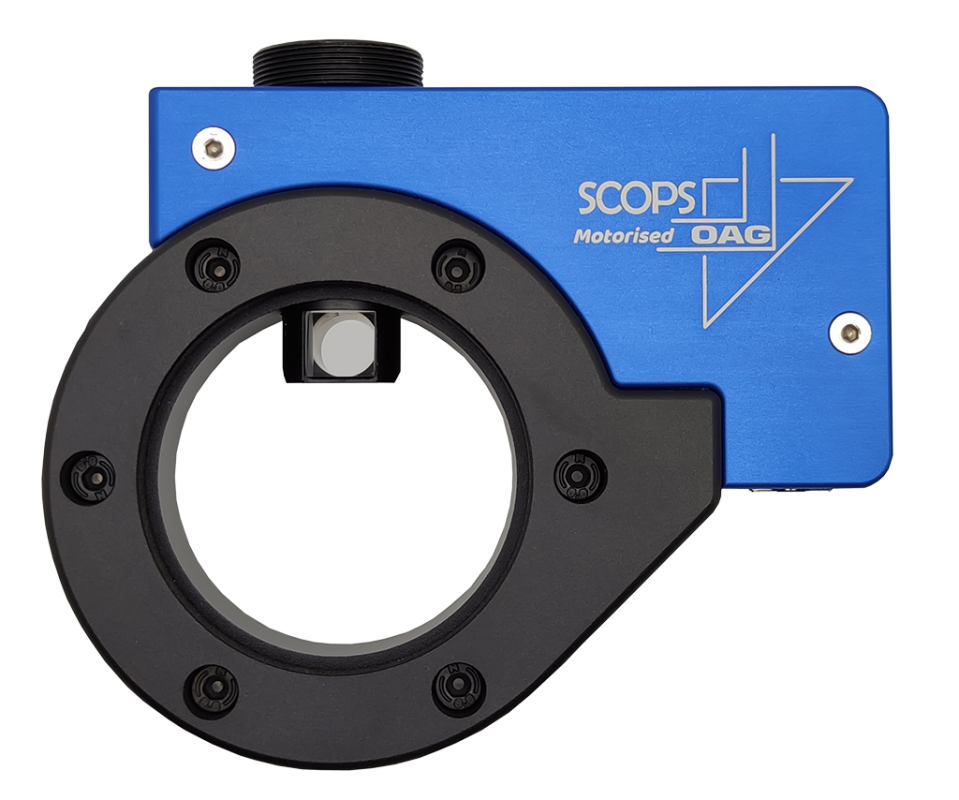

    Large Mirror

    A large 10×10 mm fully multi-coated & anti-reflection mirror offers full illumination to the guiding camera. Stars are round and bright across all the OAG ‘s field.

    Adjustable Prism Height

    The prism height can be adjusted to allow better illumination of the view field of the guiding camera. If your imaging /main camera sensor is large, the prism can be moved (with a set screw) upwards so that the sensor’s optical path has no block.

    Robust Design for a Heavy Load

    OAG thickness is 31.4mm which is capable of supporting your heavy imaging equipment.

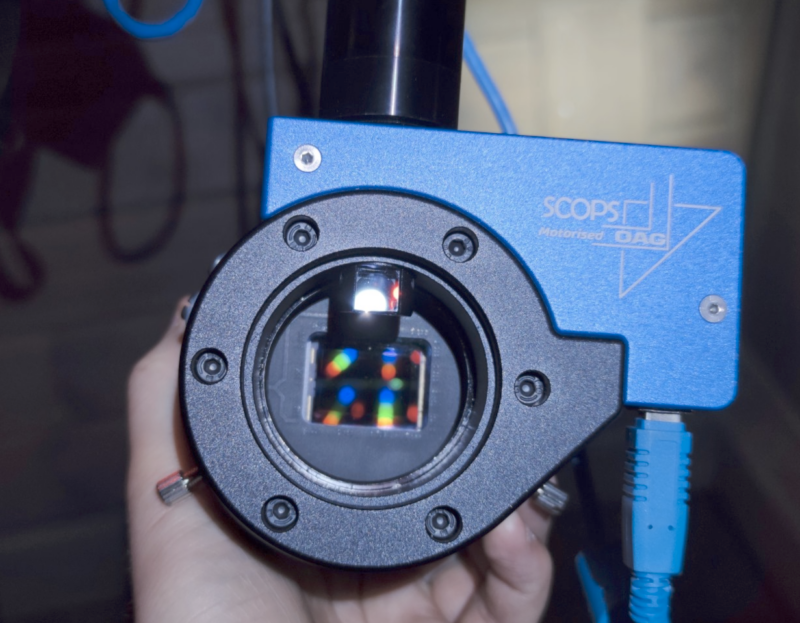

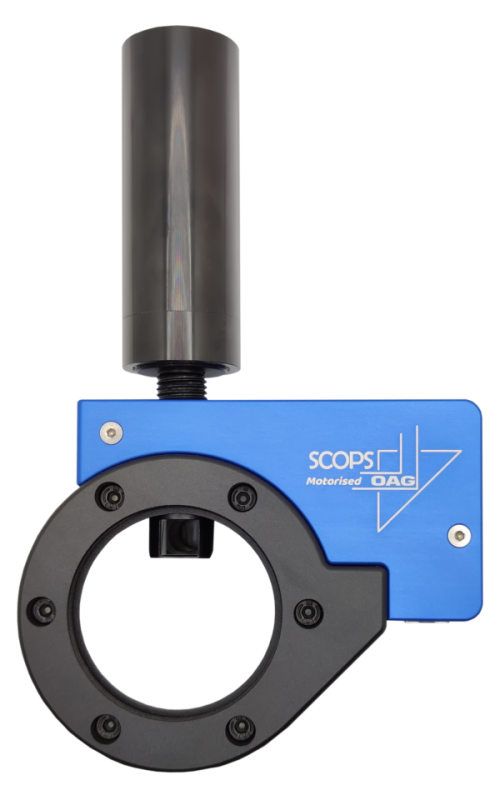

    OAG has 50 mm of clear aperture. Accepts M54 threaded adapters on both sides. Below is the OAG with a QHY268C.


    Falcon Rotator Combination
    The Scops OAG has 6 screw holes that allow you to combine it with the Pegasus Astro Falcon Rotator without extra adapters.

    Accepts M42 & C Thread Cameras

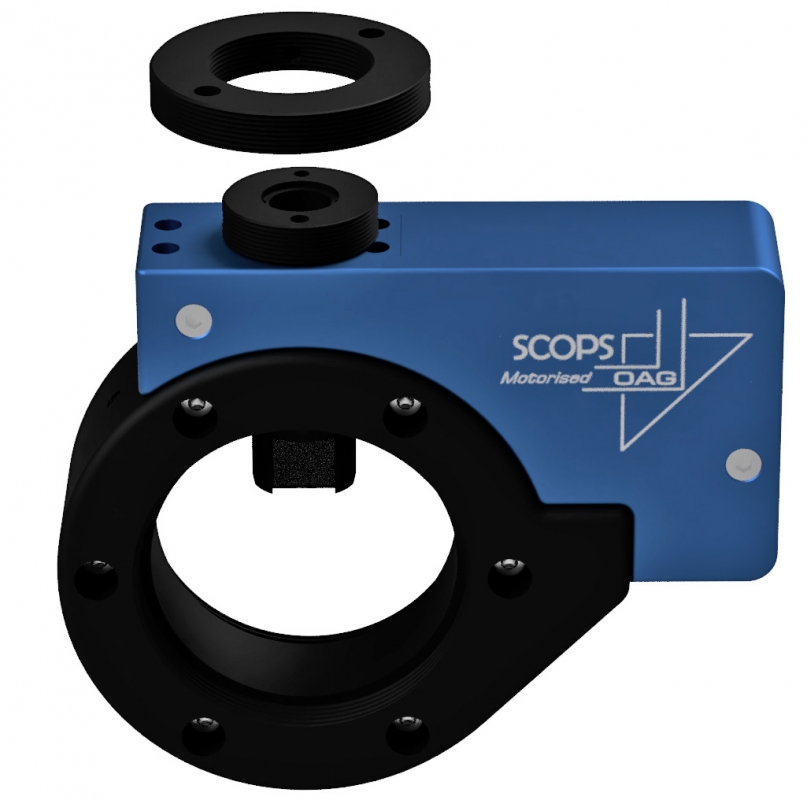

    Scops OAG accepts M42 and all new C-threaded guiding cameras. Both of these adapters (M42 / C) are included in the box.
