Pegasus Astro FocusCube v.2 Universal

Starting Price: $253.00
Price as Configured: $253.00
Brand: Pegasus Astro / SKU: PEG-FC2-UNIV
Focus your telescope quickly, reliably, and accurately using the Pegasus Astro FocusCube 2. The evolution of technology in astronomy requires a system which will assist the focusing of the telescope with great accuracy. Fast optics and modern camera devices require automatic focusing in every small period of time as temperature can affect focal length and modify the optimal focus position. The Pegasus FocusCube has been developed to meet all of these requirements.
Recommended Add-ons and Accessories
Product Price Quantity
PEG-PSU-1215 - Pegasus Astro Power Supply Unit 12V/1.5A - 2.1mm plug (for Falcon Rotator & Motor Products)
PEG-PSU-1215 - Pegasus Astro Power Supply Unit 12V/1.5A - 2.1mm plug (for Falcon Rotator & Motor Products)
About This Product

This PSU is suitable for the following products:

  • Falcon Rotator
  • FocusCube
  • Dual Motor Focus Controller
$18.99 each
PEG-PSU-21 - Pegasus Astro Power Supply Unit 12V/10A - 2.1mm plug (for Pocket Powerbox Micro and other Pegasus Astro Product)
PEG-PSU-21 - Pegasus Astro Power Supply Unit 12V/10A - 2.1mm plug (for Pocket Powerbox Micro and other Pegasus Astro Product)
About This Product
Pegasus Astro's sealed and certified switching power supply unit is the perfect match for Pegasus Astro Products. It can provide 12V and up to 10Amps. (120W of total power). Low ripple and noise ensures that you will provide the required and correct “electric juice” to your precious equipment. Comes together with a power cord (1.8m) for your country type.

This product is not compatible with the Ultimate Powerbox
$65.83 each
PEG-FC-HC - Pegasus Astro Hand Controller for FocusCube
PEG-FC-HC - Pegasus Astro Hand Controller for FocusCube
$73.43 each
QTY:
Price as Configured: $253.00

Product Help
Need help deciding?
Tell us what you're looking for, and we’ll point you in the right direction. .

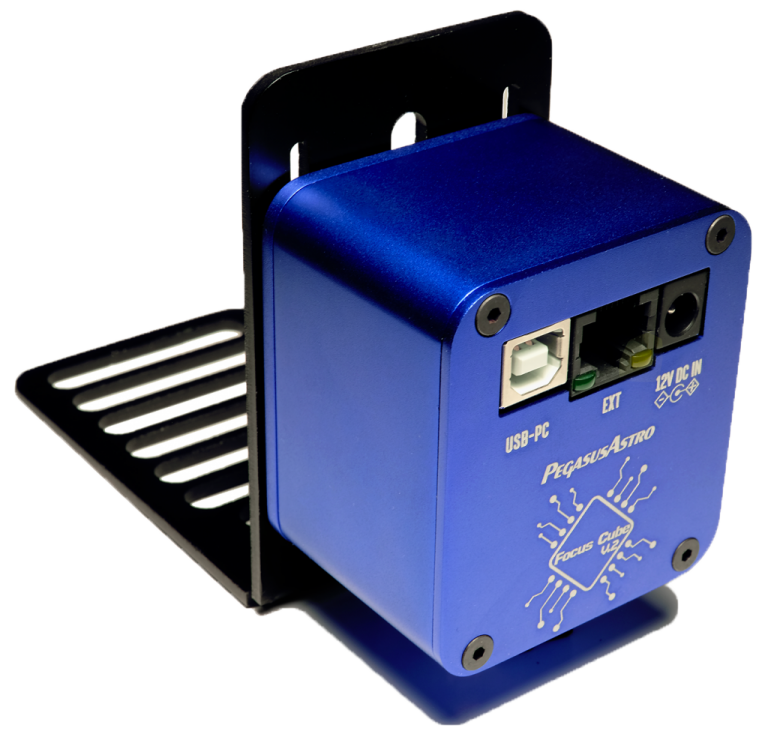

Designed in high quality with modern electronics, FocusCube can provide digital precise focus control from a PC. Device includes a stepper motor for absolute position focusing. Electronics and stepper motor are enclosed in a compact sized box. Do not be fooled by its size! This device can easily lift more than 6kg (212 ounces) of imaging equipment when the telescope points to the zenith!

This stepper motor is a high resolution geared stepper motor (Step Angle 7.5, Deg 120, Gear Ration 1:120). Its gearbox has very low backlash and high torque suitable to focus in micron scale! You only need this device to focus! Attach the FocusCube to your refractor / reflector / SCT telescope, plug the power, USB cable, download ASCOM drivers or standalone software and you are ready to go!

IMPORTANT NOTE
FocusCube is a standalone device and includes controller functionality.
No physical hand controller is included or required.
DO NOT pair it with the Dual Motor Focus Controller or any other controller in the market.
DO NOT connect this RJ45 port to the Ultimate Powerbox RJ45 Stepper Output
The RJ45 port at the back is only for the hand controller or the included temperature sensor.

High torque & resolution stepper motor

Embedded unipolar stepper motor has a powerful and very low backlash gearbox. Motor Step Angle is 7.5 deg but the 1:120 reduction gearbox turns the reduction rate to 0.06255 deg / step. As firmware implements half step drive, the motor can execute twice the steps per cycle. This means 11510 steps per cycle!
Bottom line: You can focus in microns, easily and with great accuracy.

Motor can lift up to 6Kg of equipment (212 ounces) of imaging equipment when the telescope points at the zenith!

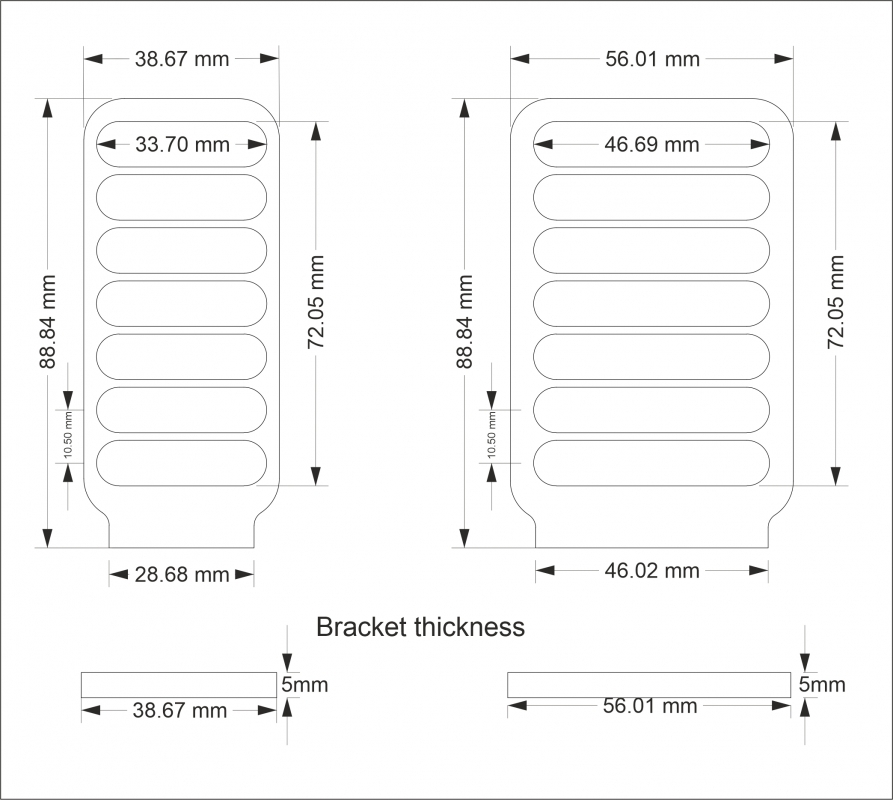

Universal Bracket

Pegasus Astro has redesigned the L shaped bracket to easily fit onto most focusers in the market.
The lower part of the redesigned bracket can be replaced with a slimmer rail (included) for better compatibility with Newtonian and other low profile focuser.

This L shaped black anodized aluminum bracket, hard to bend, has cut rails and can be attached to a wide range of focusers.
I

Universal L Bracket (2022) – (All above parts are included in package)

Temperature Probe

An external digital temperature sensor input is located near the motor connector. A digital probe of one meter (3 feet) length is supplied. The probe can be placed near the focuser so the exact temperature of the focuser / environment can be seen through the supplied software or ASCOM driver (probe is always included)

Expansion Port / Manual Focus (optional accessory)

FocusCube includes an expansion RJ45 port at the back of the enclosure.  This port provides input for the temperature sensor. An optional hand controllerfor manual focus control can be acquired for those who might want to add this functionality.

Please Notice: Hand Controller is an optional accessory

ASCOM supported

The controller is fully compatible with latest ASCOM 6.4
