Pegasus Astro Flatmaster 150 - Dimmable Flat Field Illumination Panel (up to 5" size)

Starting Price: $202.50
Price as Configured: $202.50
Brand: Pegasus Astro / SKU: PA-FLTMSTR150

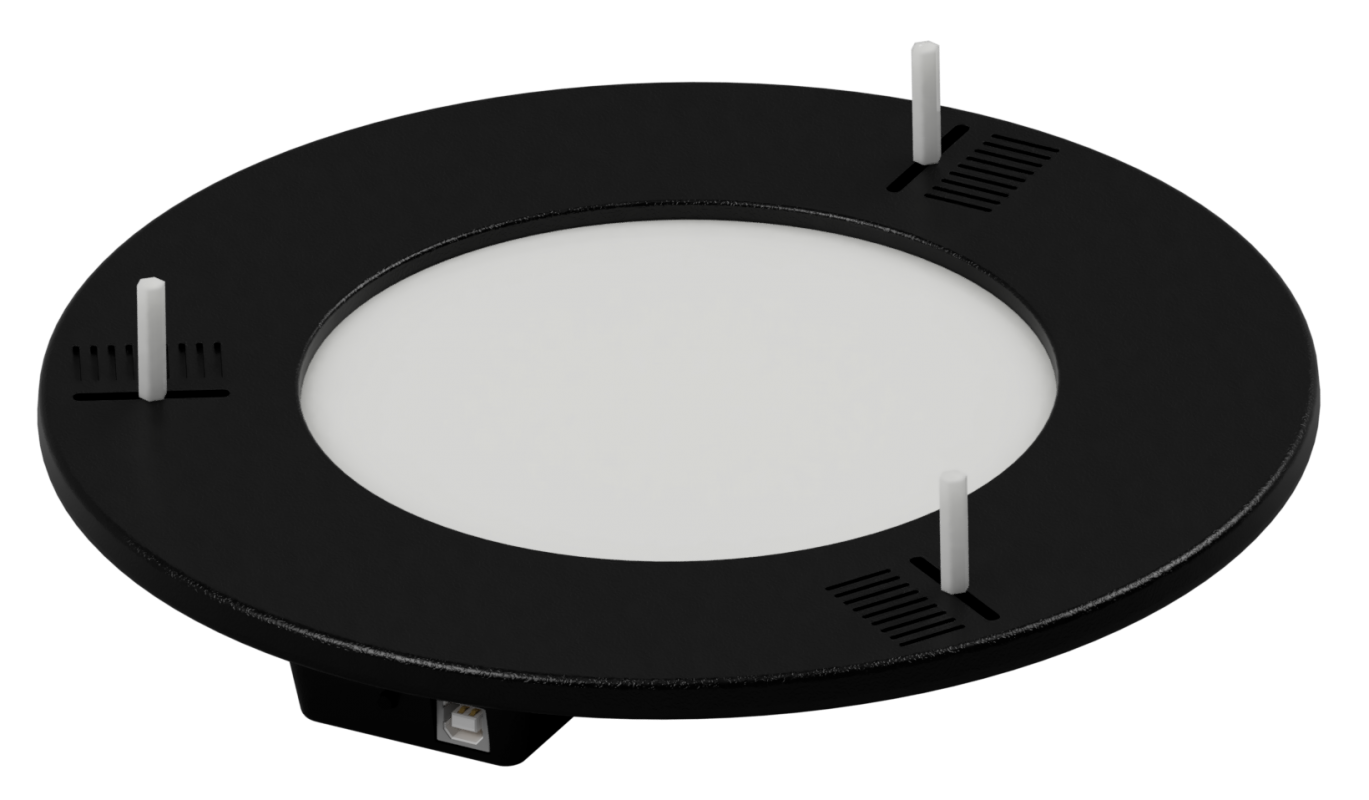

Pegasus Astro FlatMaster

The FlatMaster, Pegasus Astro’s newly developed flatfield electroluminescent panel, enhances astrophotography and photometry by providing a consistent illumination source and producing high quality flat field frames.

Dimmable EL Panel

Contrary to other available electroluminescent panels, the FlatMaster’s brightness is easily adjustable. This eliminates the need for having sheets of paper between your telescope and the panel. EL lamp operates via remote control. Allows brightness per filter storage for prompt acquisition of your desired value.

Manual Button

This device features a small push button which sets five (5) levels of brightness. In the event that you would want to manually operate the FlatMaster, no problem. Simply click the push button to control the brightness.

One Cable Operation

Only one mini USB cable is needed for powering and controlling your panel.

Standalone Software

Software allows filter names to be set for storage and retrieval of your FlatMaster panel's brightness levels.

ASCOM Compliant

The FlatMaster is supported by Pegasus Astro's ASCOM switch driver which allows ASCOM compliant programs to control the panel.

FlatMaster Specifications

  • Type: Electroluminescent Panel (White)
  • Dimmable: Yes (0-100%)
  • Manual Push Button: Five (5) brightness levels
  • Usable Circle Diameter: 120 mm (4.72")
  • Power Requirements: 5V DC provided by mini USB cable
  • Dimensions: 180 mm x 180 mm x 9 mm
  • Weight: 10.6 oz.
