QSI 760
Starting Price: $6,203.00
Price as Configured: $6,203.00
Price as Configured: $6,203.00
Brand: QSI / SKU: QSI-760
The QSI 760 is the QSI flagship camera, featuring the full-frame IMX455 sensor, widely regarded as the premium sensor for astronomers. Known for its exceptional performance, the IMX455 delivers unrivaled image quality and sensitivity, making it the ideal choice for serious astrophotographers.

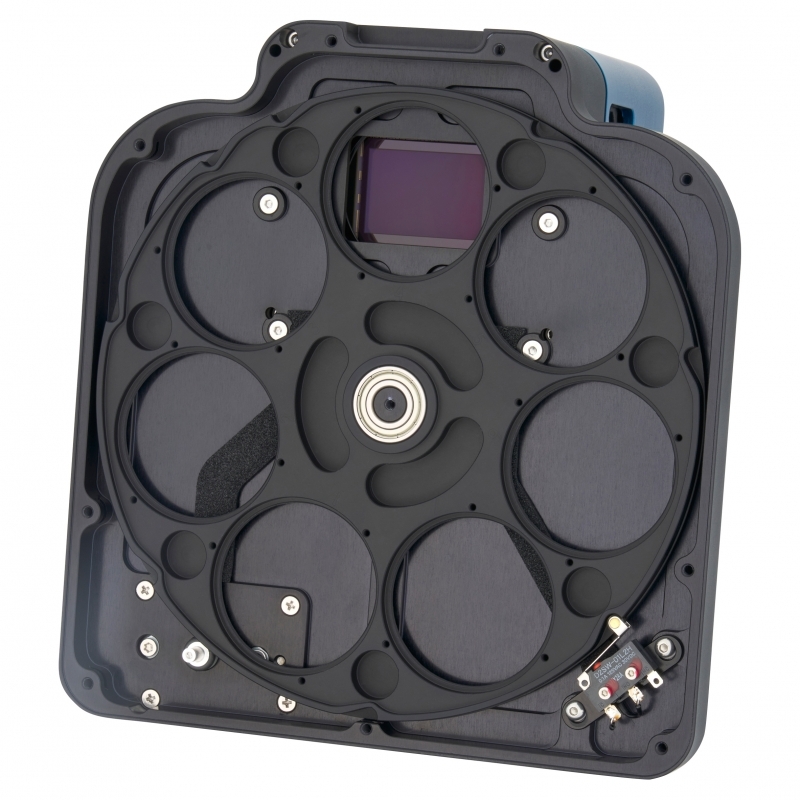

The integrated 2”/50mm filter wheel is designed to minimize back focus, ensuring the widest compatibility with focal reducers. This feature, combined with the camera’s thoughtful design, reduces cable clutter, enhancing usability. With 2 USB2 inputs and a power-out socket, the QSI 760 simplifies connections, while threaded power sockets ensure maximum reliability for long-lasting, stable performance.
Need help deciding?
Tell us what you're looking for, and we’ll point you in the right direction. Email Us.
Tell us what you're looking for, and we’ll point you in the right direction. Email Us.
QSI CAMERA SPECIFICATIONS
QSI 760 | QSI 726 | |
| Image Sensor | Sony IMX455 mono CMOS sensor | Sony IMX571 mono CMOS sensor |
| Resolution | 9576 x 6380 | 6244 x 4168 |
| Pixel Pitch | 3.76 µm | |
| Sensor Size | 43.3mm diagonal (36mm x 24mm) | 28.3mm diagonal (23.5mm x 15.7mm) |
| Full Well | 51,000 e- | |
| Read Noise | 1.2 e- (typical) | 1.7 e- (typical) |
| Set Point Cooling at ambient of 20°C | -25°C | |
| Frame Rate | 2 FPS (Full Frame image) | 4 FPS (Full Frame image) |
| Mount Type | M54 x 0.75 | |
| ADC | 16 bit | |
| Reading Mode | Rolling shutter | |
| Exposure Range | 1 ms – 24 hours | |
| Dark Current | 0.005 e-/p/s | 0.0008 e-/p/s |
| Filter Wheel | Mechanical indexing for reproducible flats, Filterwheel for 2” or unmounted 50mm filters, 5 or 7 position | Mechanical indexing for reproducible flats, Filterwheel for 2” or unmounted 50mm/36mm filters |
| Back Focus | 31mm (can be reduced by removing the adaptor (- 4mm) | |
| Computer System Requirements | Windows 10+, Linux, USB 3.0, 8GB Ram, 64 bit Operating System | |
| Accessories (optional) | Off-Axis guide unit | |
| Weight | 1590g-1820g | 1590g |
| Includes | Locking screws, INPUT & OUTPUT | |
