QHY268M-PH Monochrome Photographic APS-C Camera

QHY268M-PH Monochrome Photographic APS-C Camera

Starting Price: $2,399.00 Sale Price: $2,039.00 Price as Configured: $2,039.00
Brand: QHYCCD / SKU: QHY-268M-PH (110080)
The QHY268M/C is a new generation of back-illuminated CMOS cameras with true 16-bit A/D and 3.76um pixels. This Sony sensor is an ideal CMOS sensor exhibiting no amplifier glow. 16-bit A/D gives high resolution sampling of the whole full well range. Digitizing 0-65535 levels yields a smooth image with continuous gradation of grayscale levels.

With the advantage of low readout noise and high-speed readout, CMOS technology has revolutionized astronomical imaging. This monochrome, back-illuminated, high-sensitivity, astronomical imaging camera is the ideal choice for astro-imagers.
Recommended Add-ons and Accessories
Product Price Quantity
QHY-OAG-M (100074) - QHY Off-Axis Guider - Medium
QHY-OAG-M (100074) - QHY Off-Axis Guider - Medium
About This Product
The QHY Off-Axis Guider (OAG) has three models (QHYOAG-S,QHYOAG-M,QHYOAG-L).

This product is the Medium version.

Model QHYOAG-S QHYOAG-M QHYQAG-L
Telescope Interface M42/0.75 M54/0.75 M62/0.75
Diameter of 6 x M3 screw hole positions 54mm 62mm 68mm
Suitable for CCD/CMOS Size 1inch or smaller 4/3 inch

APS-C,

APS-H,

36 x 24mm

$179.00 each
QHY-CFW3-M - QHY Color Filter Wheel - Medium
QHY-CFW3-M - QHY Color Filter Wheel - Medium
About This Product
The QHY CFW3 series filter wheels are available in four sizes to accommodate filters from 1.25-inch to 50 millimeters square.

This product is the Medium size, available in a standard (SR) version or thin (US) version.

Model Filter Supported
CFW3XL Slot 1: 9 position 2inch mounted/ 50mm unmounted & 50mm square
Slot 2: 7 position 50mm*50mm square
CFW3L 7 position 2inch mounted/50mm unmounted
CFW3M-SR 5 position 2inch mounted/50mm unmounted
CFW3M-US 7 position 36mm unmounted
CFW3S-SR 7 position 1.25inch mounted/31mm unmounted
CFW3S-US 7 position 1.25inch mounted/31mm unmounted

$269.00 each
QHY-CFW3-L (110047) - QHY Color Filter Wheel - Large
QHY-CFW3-L (110047) - QHY Color Filter Wheel - Large
About This Product
The QHY CFW3 series filter wheels are available in four sizes to accommodate filters from 1.25-inch to 50 millimeters square.

This product is the Large size.

Model Filter Supported
CFW3XL Slot 1: 9 position 2inch mounted/ 50mm unmounted & 50mm square
Slot 2: 7 position 50mm*50mm square
CFW3L 7 position 2inch mounted/50mm unmounted
CFW3M-SR 5 position 2inch mounted/50mm unmounted
CFW3M-US 7 position 36mm unmounted
CFW3S-SR 7 position 1.25inch mounted/31mm unmounted
CFW3S-US 7 position 1.25inch mounted/31mm unmounted

$386.00 each
View More Add-ons and Accessories

Recommended Add-ons and Accessories

Enter the quantity desired for each item and click the close button to continue with your purchase.
QHY-OAG-M (100074) - QHY Off-Axis Guider - Medium
QHY-OAG-M (100074) - QHY Off-Axis Guider - Medium
$179.00
Qty:
View Details
« Back to All Add-ons
QHY-OAG-M (100074) - QHY Off-Axis Guider - Medium
About This Product
The QHY Off-Axis Guider (OAG) has three models (QHYOAG-S,QHYOAG-M,QHYOAG-L).

This product is the Medium version.

Model QHYOAG-S QHYOAG-M QHYQAG-L
Telescope Interface M42/0.75 M54/0.75 M62/0.75
Diameter of 6 x M3 screw hole positions 54mm 62mm 68mm
Suitable for CCD/CMOS Size 1inch or smaller 4/3 inch

APS-C,

APS-H,

36 x 24mm

QHY-CFW3-M - QHY Color Filter Wheel - Medium
QHY-CFW3-M - QHY Color Filter Wheel - Medium
$269.00
Qty:
View Details
« Back to All Add-ons
QHY-CFW3-M - QHY Color Filter Wheel - Medium
About This Product
The QHY CFW3 series filter wheels are available in four sizes to accommodate filters from 1.25-inch to 50 millimeters square.

This product is the Medium size, available in a standard (SR) version or thin (US) version.

Model Filter Supported
CFW3XL Slot 1: 9 position 2inch mounted/ 50mm unmounted & 50mm square
Slot 2: 7 position 50mm*50mm square
CFW3L 7 position 2inch mounted/50mm unmounted
CFW3M-SR 5 position 2inch mounted/50mm unmounted
CFW3M-US 7 position 36mm unmounted
CFW3S-SR 7 position 1.25inch mounted/31mm unmounted
CFW3S-US 7 position 1.25inch mounted/31mm unmounted

QHY-CFW3-L (110047) - QHY Color Filter Wheel - Large
QHY-CFW3-L (110047) - QHY Color Filter Wheel - Large
$386.00
Qty:
View Details
« Back to All Add-ons
QHY-CFW3-L (110047) - QHY Color Filter Wheel - Large
About This Product
The QHY CFW3 series filter wheels are available in four sizes to accommodate filters from 1.25-inch to 50 millimeters square.

This product is the Large size.

Model Filter Supported
CFW3XL Slot 1: 9 position 2inch mounted/ 50mm unmounted & 50mm square
Slot 2: 7 position 50mm*50mm square
CFW3L 7 position 2inch mounted/50mm unmounted
CFW3M-SR 5 position 2inch mounted/50mm unmounted
CFW3M-US 7 position 36mm unmounted
CFW3S-SR 7 position 1.25inch mounted/31mm unmounted
CFW3S-US 7 position 1.25inch mounted/31mm unmounted

QHY-030029 - QHY Active Extension Cable, DC 5V, 10m Long
QHY-030029 - QHY Active Extension Cable, DC 5V, 10m Long
$60.00
Qty:
View Details
« Back to All Add-ons
QHY-030029 - QHY Active Extension Cable, DC 5V, 10m Long
About This Product
Why do you need an Active Extension Cable?

According to the characteristics of USB3.0, the maximum supported cable length of USB3.0 is about 3 meters, or the transmission stability cannot be guaranteed above 3 meters. In order to ensure the image quality, the standard USB cable length of QHY is 1.8 meters.
QHY-030028 - QHY Active Extension Cable, DC 5V, 5m Long
QHY-030028 - QHY Active Extension Cable, DC 5V, 5m Long
$50.00
Qty:
View Details
« Back to All Add-ons
QHY-030028 - QHY Active Extension Cable, DC 5V, 5m Long
About This Product
Why do you need an Active Extension Cable?

According to the characteristics of USB3.0, the maximum supported cable length of USB3.0 is about 3 meters, or the transmission stability cannot be guaranteed above 3 meters. In order to ensure the image quality, the standard USB cable length of QHY is 1.8 meters.
QHY-ComboB2 (20104) - QHY Adapter Kit Combo B2 (for Canon EF Lens)
QHY-ComboB2 (20104) - QHY Adapter Kit Combo B2 (for Canon EF Lens)
$35.00
Qty:
View Details
« Back to All Add-ons
QHY-ComboB2 (20104) - QHY Adapter Kit Combo B2 (for Canon EF Lens)
About This Product
  • QHY Adapter-Kit B2 compatible with QHY268M / QHY600 (Short BFL Version) and QHY CFW3-L
  • With the kit, 44.1 mm backfocus length is achievable with adaptable Canon EF Lens
  • Includes:
    • 1x 10mm M54 Canon EF Adapter
QHY-ComboB3 (20105) - QHY Adapter Kit Combo B3 (for Nikon F Lens)
QHY-ComboB3 (20105) - QHY Adapter Kit Combo B3 (for Nikon F Lens)
$40.00
Qty:
View Details
« Back to All Add-ons
QHY-ComboB3 (20105) - QHY Adapter Kit Combo B3 (for Nikon F Lens)
About This Product
  • QHY Adapter-Kit B3 compatible with QHY268M / QHY600 (Short BFL Version) and QHY CFW3-L
  • With the kit, 46.5mm backfocus length is achievable with adaptable Nikon F Lens
  • Includes:
    • 1x 12mm Nikon F Adapter M54
    • 1 x 0,5 mm Spacer
QTY:
Price as Configured: $2,039.00

Product Help
Need help deciding?
Tell us what you're looking for, and we’ll point you in the right direction. .

QHY estimates that 2-inch filters are large enough to cover the whole sensor area, but they’re expensive. As an alternative, QHY estimates that a 36mm filter can be matched with scopes whose focal ratio is smaller than f/4. However, if your scope has a large focal ratio like f/2.8, QHY recommends 2-inch filters.

Model BFL Consumed Filters Supported
QHY268M

QHY268C (New Version after 2023)

12.5mm
CFW3M-US 17.5mm 7 position

36mm unmounted

CFW3L 21.5mm 7 position

2inch mounted/50mm unmounted

OAGM 10mm

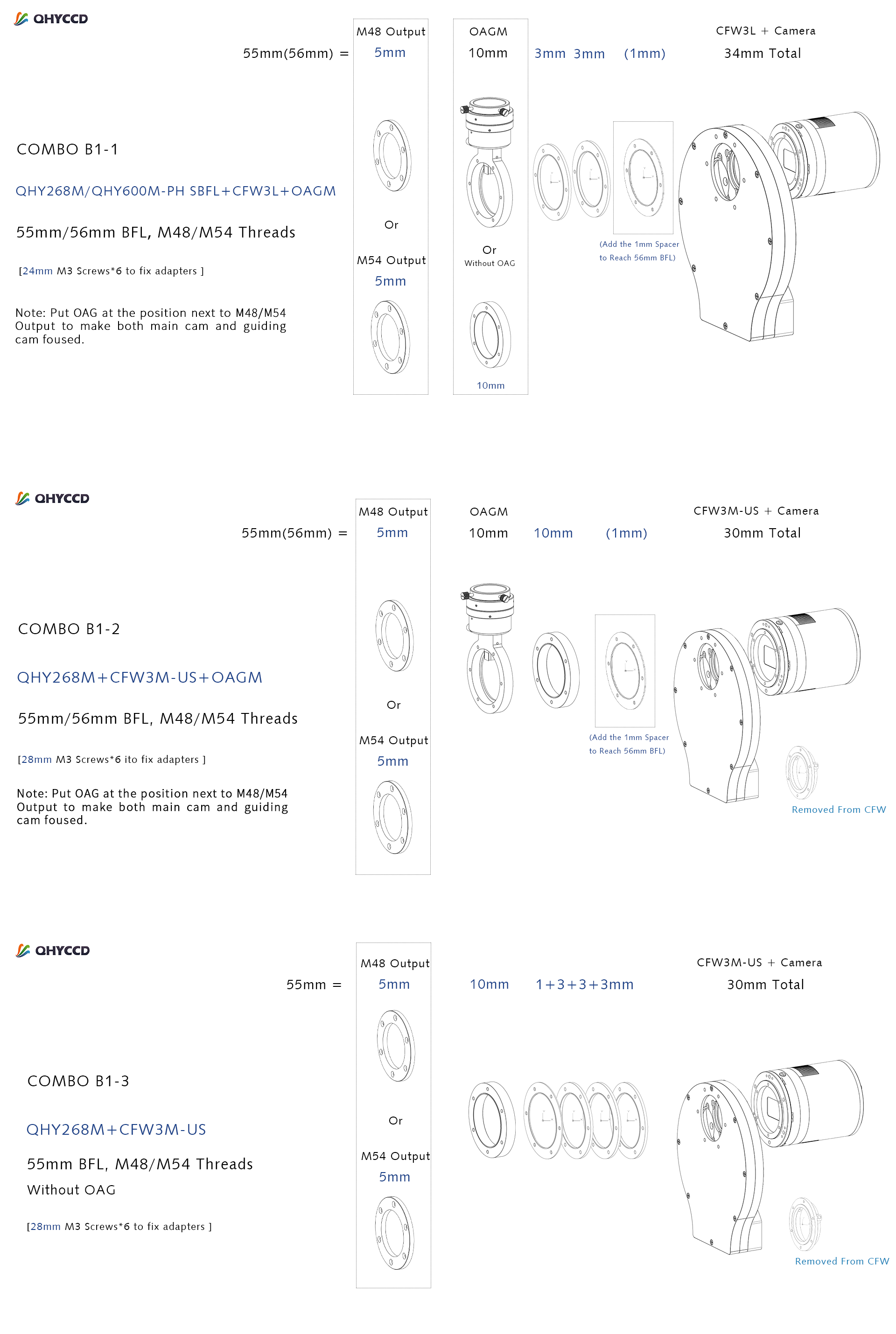

Note: Adapter Kits B1 is provided FOR FREE with each QHY268M model.

The New Combo B1 is designed to be more flexible to achieve multiple output specifications. Since June 2023, QHY is adding a 5mm spacer with M54 threads into Adapter kit B1. This addition gives the user a choice of terminating the output in either M48 or M54 threads. You can get 55/56mm BFL with M48/M54 threads according to your needs. Since these are standard accessories included with the camera, this addition has no affect on the price.

55mm M48/M54 are suitable for standard flatteners and multiple purpose coma correctors (MPCC), while 56mm M54 threads are common for Takahashi reflectors.

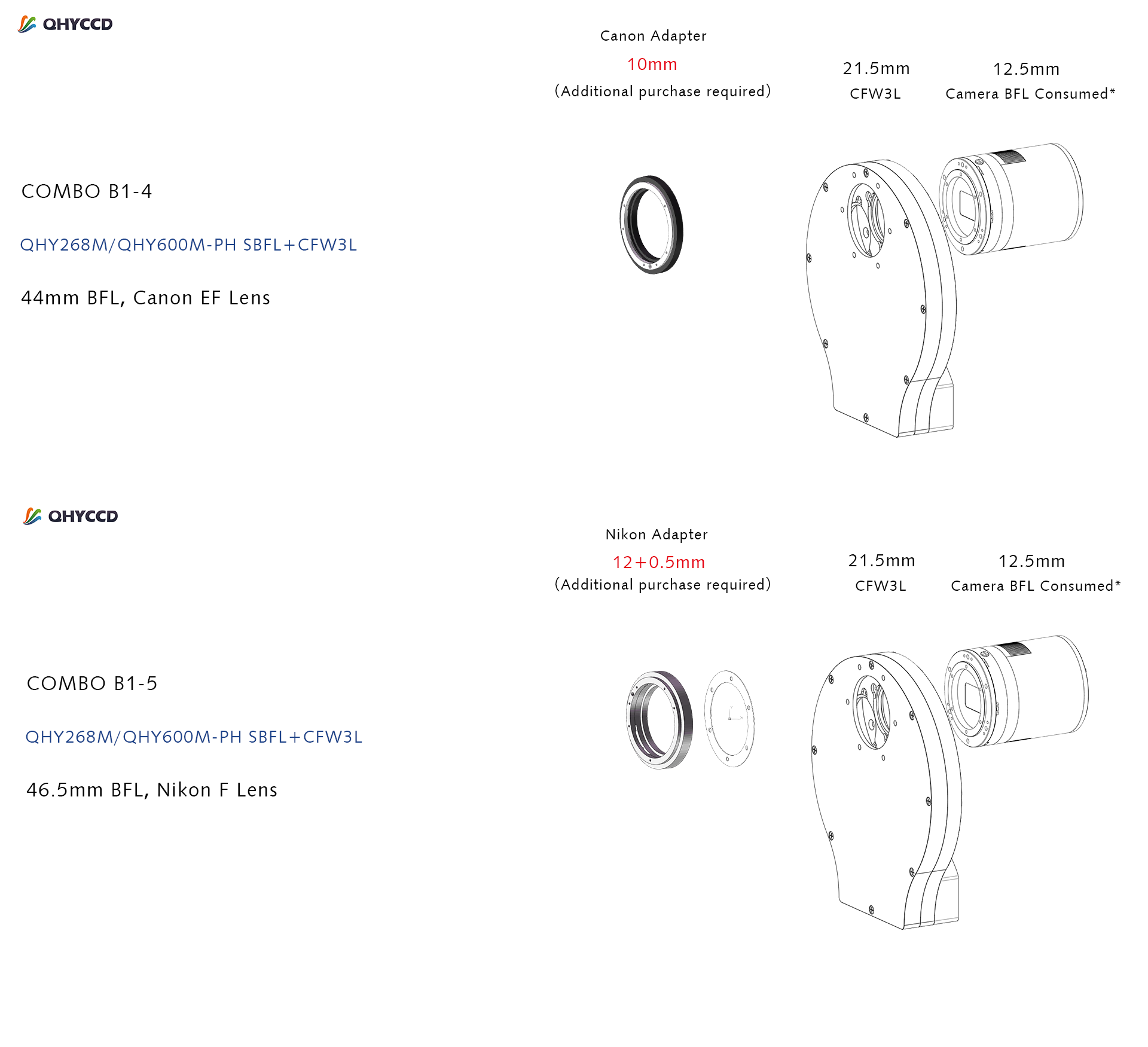

The QHY600M-PH SBFL and QHY268M with CFW3L filter wheel can fit an optional Canon EF or Nikon F Lens Adapter without additional spacers. Smaller filter wheels may require additional spacers.
