PrimaLuceLab ESATTO 2" Low Profile Robotic Focuser

Starting Price: $875.00
Price as Configured: $875.00
Brand: PrimaLuceLab / SKU: PLL-EST2LP

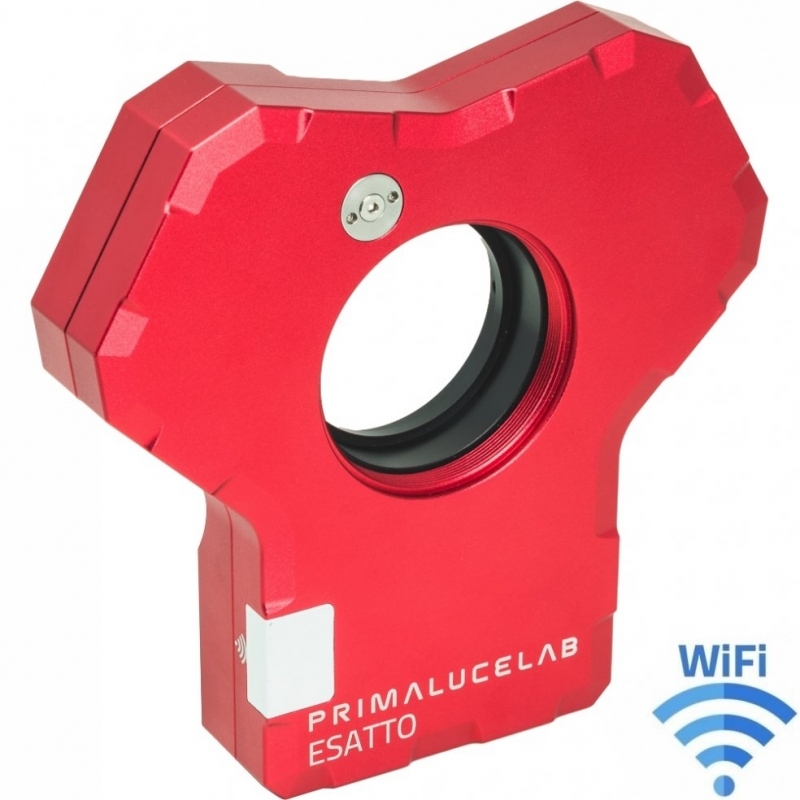

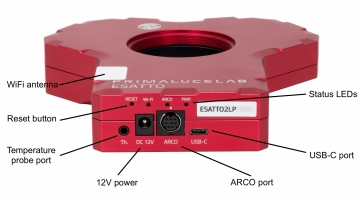

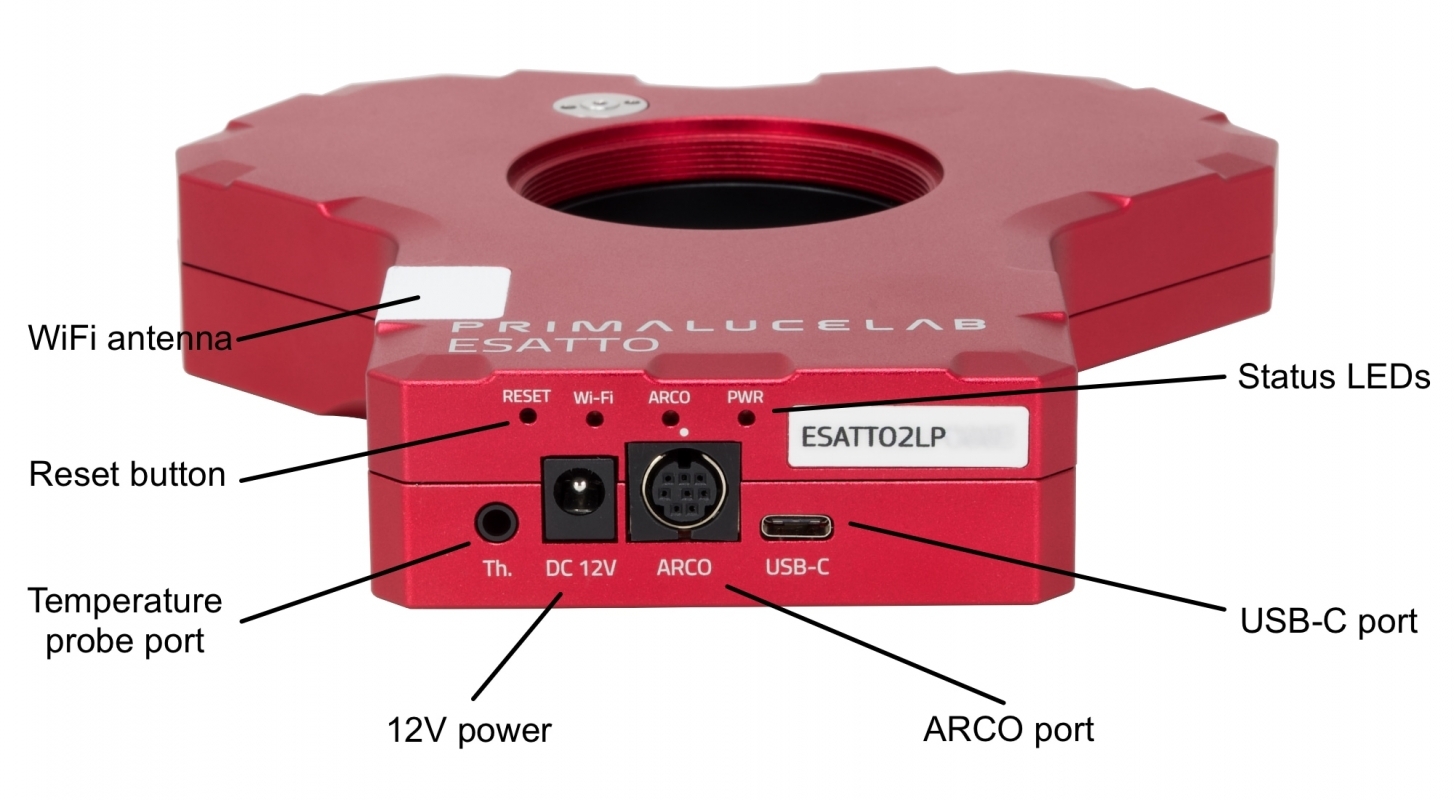

ESATTO 2” LP is the most compact low profile robotic focuser specially designed for telescopes with low backfocus and it can fit also the Celestron EdgeHD 8"! At just 32mm of thickness, ESATTO 2” LP provides a large 50.9mm free aperture with 10mm of travel, 5 kg of payload capacity and an incredible resolution of 0.03 microns per step! And like all the other ESATTO focusers, it comes with a USB-C port to let control it from your EAGLE or any Windows computer, ARCO port to let you connect to ARCO rotator, temperature probe port, WiFi connection to let you wirelessly control with a smartphone or tablet and dimmable LED lights! Check out more about ESATTO (yes, it's Italian for "EXACT") below.


Recommended Add-ons and Accessories
Product Price Quantity
PLL-3600542 - PrimaLuceLab Adapter ESATTO 2" LP for Telescopes with SC Thread
PLL-3600542 - PrimaLuceLab Adapter ESATTO 2" LP for Telescopes with SC Thread
About This Product
Adapter ESATTO 2" LP for ARCO 2" allows you to connect the rotator to ESATTO 2" LP robotic focuser and control it through the special port on ESATTO. By adding this adapter to ARCO 2", thickness of rotator is 22mm.
$95.00 each

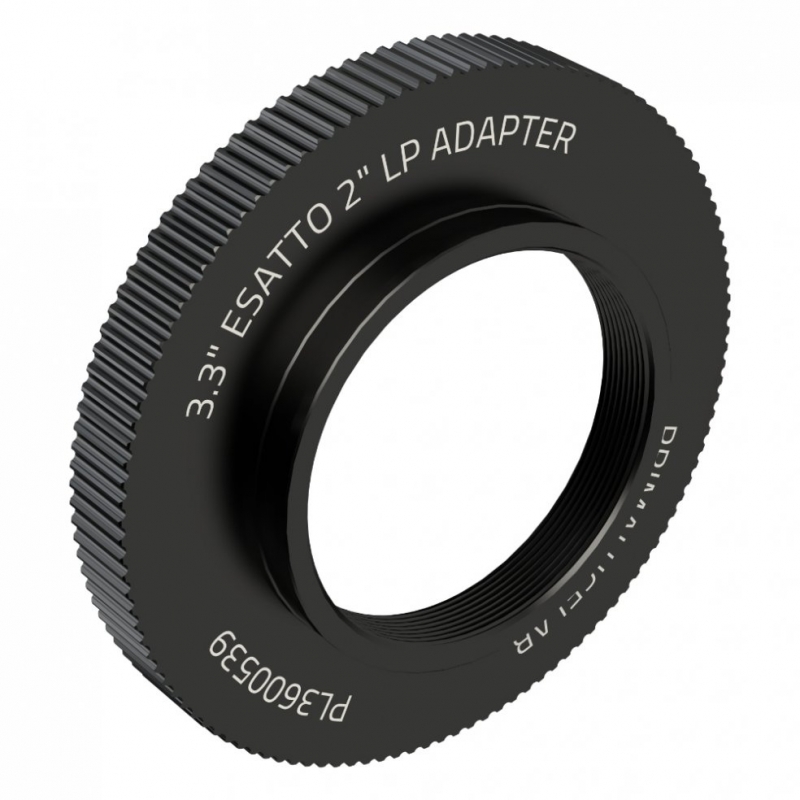

PLL-3600539 - PrimaLuceLab Adapter ESATTO 2" LP for Telescopes with Large 3.3" SC Thread
PLL-3600539 - PrimaLuceLab Adapter ESATTO 2" LP for Telescopes with Large 3.3" SC Thread
About This Product
Adapter ESATTO 2" LP for ARCO 2" allows you to connect the rotator to ESATTO 2" LP robotic focuser and control it through the special port on ESATTO. By adding this adapter to ARCO 2", thickness of rotator is 22mm.
$95.00 each

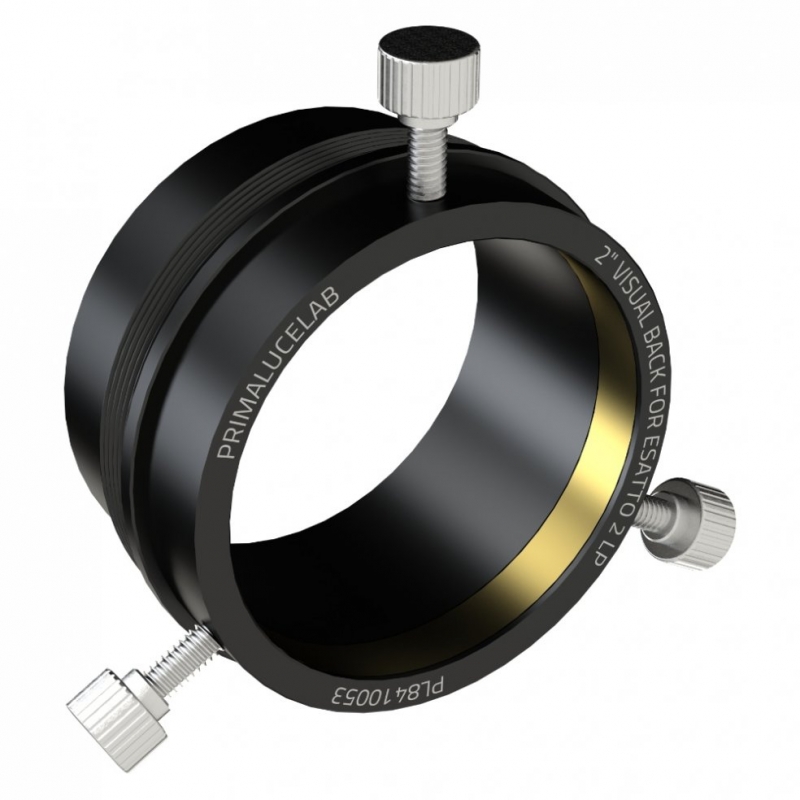

PLL-8410053 - PrimaLuceLab 2" Visual Back for ESATTO 2" LP
PLL-8410053 - PrimaLuceLab 2" Visual Back for ESATTO 2" LP
About This Product
If you want to connect a camera with a 2" nosepiece to your ESATTO 2” LP, just connect the 2" visual back to the M60 thread of ESATTO 2” LP. This adapter has an internal brass compression ring to avoid scratching the inserted nosepiece as well as 3 locking screws (120° separation) for a perfect fit, even for heavy cameras or accessories. Optical thickness 11mm.
$95.00 each
PLL-3600543 - PrimaLuceLab Adapter M60 to T2 ESATTO 2" LP
PLL-3600543 - PrimaLuceLab Adapter M60 to T2 ESATTO 2" LP
About This Product
Adapter from M60 to M54 with stop ring for ESATTO 2" LP allows you to connect any camera or accessory with M54 female thread. Just thread this adapter to the M60 thread of the ESATTO 2" LP draw tube. Thanks to the M54 stop ring for ESATTO 2" LP you can also fix the camera at a precise angle in order to better frame your camera sensor at the desired object. Optical thickness is 2.5mm and, if you remove the stop ring, optical thickness is zero.
$125.00 each
PLL-3600545 - PrimaLuceLab Adapter M60 to M48 for ESATTO 2" LP
PLL-3600545 - PrimaLuceLab Adapter M60 to M48 for ESATTO 2" LP
About This Product
Adapter ESATTO 2" LP for ARCO 2" allows you to connect the rotator to ESATTO 2" LP robotic focuser and control it through the special port on ESATTO. By adding this adapter to ARCO 2", thickness of rotator is 22mm.
$125.00 each
PLL-3600547 - PrimaLuceLab Adapter M60 to M54 ESATTO 2" LP
PLL-3600547 - PrimaLuceLab Adapter M60 to M54 ESATTO 2" LP
About This Product
Adapter from M60 to M54 with stop ring for ESATTO 2" LP allows you to connect any camera or accessory with M54 female thread. Just thread this adapter to the M60 thread of the ESATTO 2" LP draw tube. Thanks to the M54 stop ring for ESATTO 2" LP you can also fix the camera at a precise angle in order to better frame your camera sensor at the desired object. Optical thickness is 2.5mm and, if you remove the stop ring, optical thickness is zero.
$125.00 each
PLL-3600538 - PrimaLuceLab Adapter ESATTO 2" LP for ARCO 2"
PLL-3600538 - PrimaLuceLab Adapter ESATTO 2" LP for ARCO 2"
About This Product
Adapter ESATTO 2" LP for ARCO 2" allows you to connect the rotator to ESATTO 2" LP robotic focuser and control it through the special port on ESATTO. By adding this adapter to ARCO 2", thickness of rotator is 22mm.
$95.00 each
QTY:
Price as Configured: $875.00

Product Help
Need help deciding?
Tell us what you're looking for, and we’ll point you in the right direction. .
Main Features:
  • Special low profile design for high load capacity (up to 5 kgs) and precision.
  •

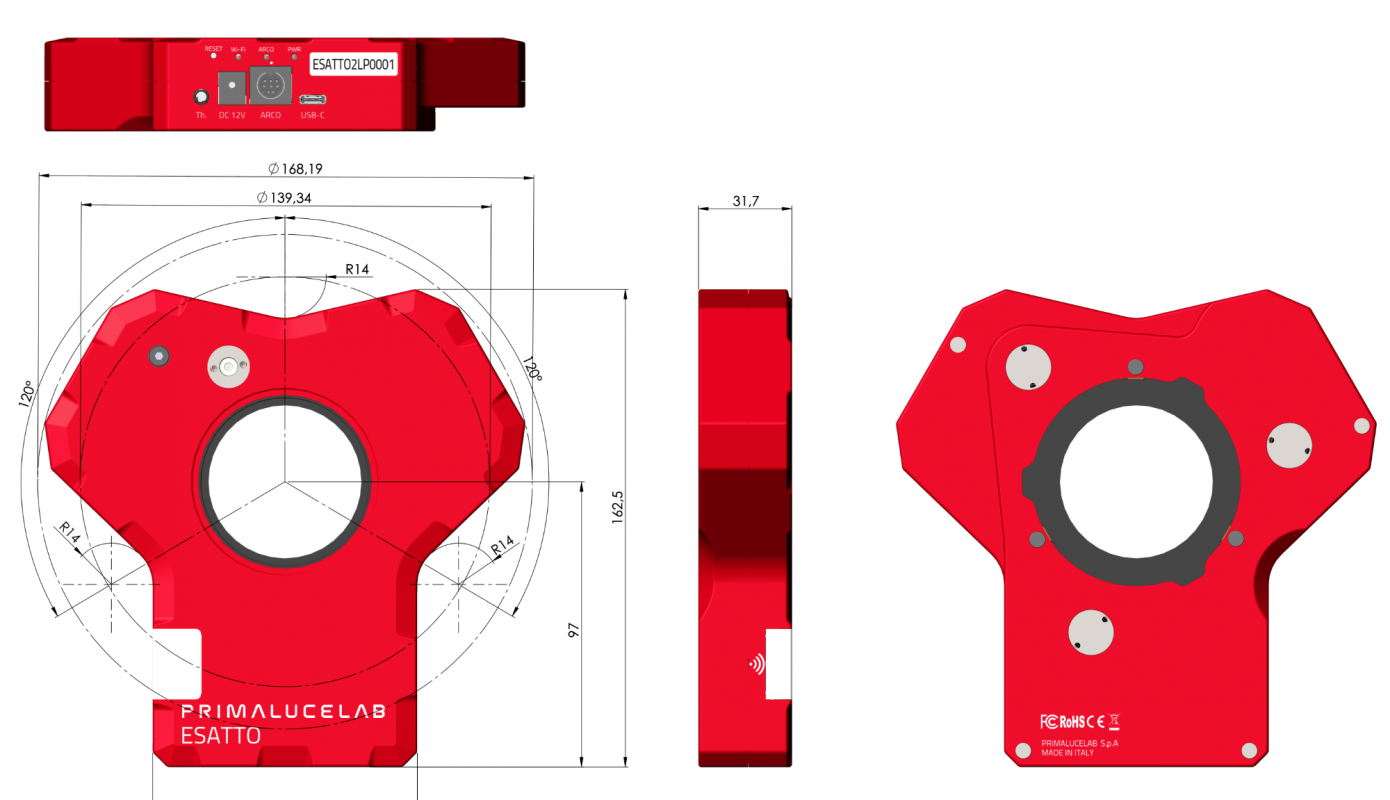

Low profile with only 32mm thickness.

  • 10mm focuser travel with an incredible resolution of 0.03 microns per step!

  • Special optional adapters to easily connect to many different telescopes.
  • Remotely controlled from EAGLE or any Windows computer, it's also provided with ASCOM driver.
  • USB-C connector offering greater reliability and can be connected to any USB type port thanks to the included cable.
  • It works also with PLAY astrophotography software, much more than a standalone program.
  • Remote control with WiFi from any smartphone, tablet or computer and ESATTO Virtual HandPad app for visual use!
  • Many threaded camera adapters with stop ring on the camera side to rotate and keep the camera in the optical axis.
  •
ARCO port to easily connect the ARCO camera rotator and field de-rotator to the ESATTO without the need for additional USB or 12V power cables.

  • Weight: 730 gr.
The ESATTO 2” low profile robotic focuser is compact and lightweight; its special design allow you to connect it also to Celestron EdgeHD 8" telescope without touching the primary mirror lock knobs and the manual focus knob. This way, with a body thickness of just 32mm, you can take advantage of a motorized focuser with 50.9mm free aperture that is able to carry up 5 kg of imaging accessories.

ESATTO 2” LP comes with PLAY, the astrophotography software developed by PrimaLuceLab in order to record beautiful pictures of the night sky in the simpler way and with the telescope, mount and other accessories you prefer! PLAY includes many features needed for astrophotography and it allows you to configurate your telescope by selecting the OTA and mount provided with ASCOM drivers (tested with ASCOM platform 6.5 and later), control focus with ESATTO or SESTO SENSO 2 and camera rotation with ARCO. In order to use PLAY you have to have at least ESATTO focuser or SESTO SENSO 2 focusing motor and, if you install PLAY in the EAGLE computer, it automatically adds more advanced features!

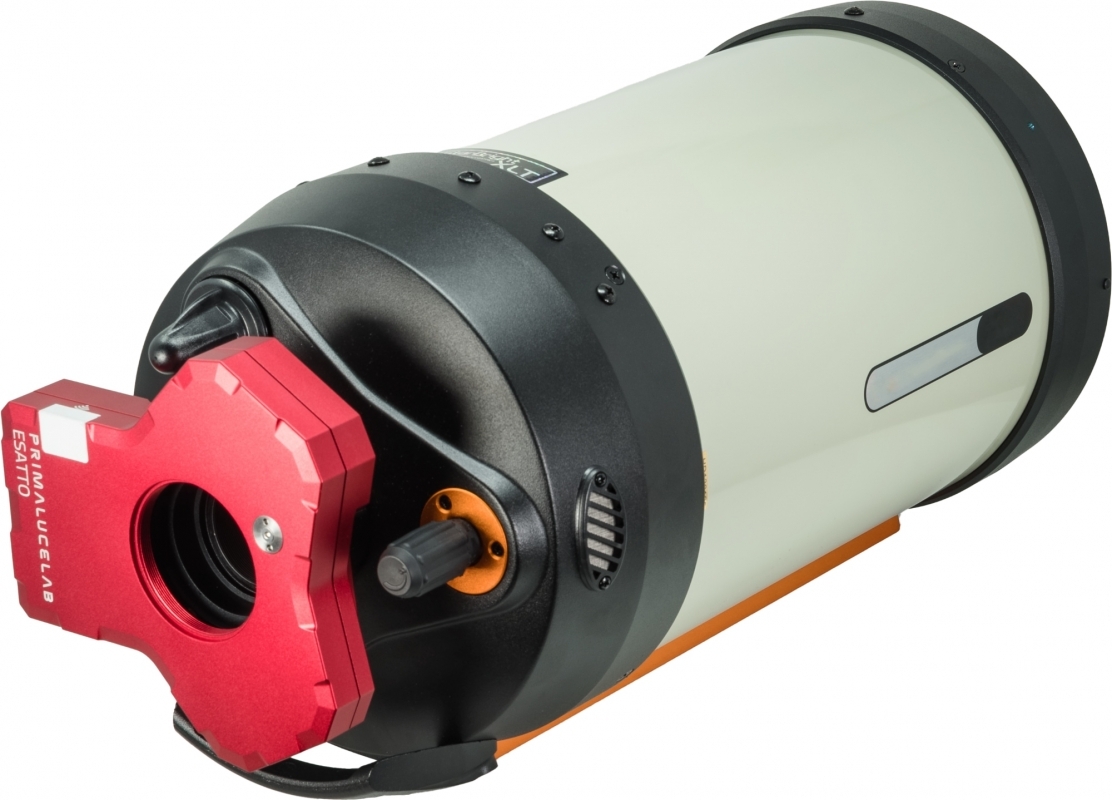

The special design of the ESATTO 2” low profile robotic focuser allows you to connect it also to Celestron EdgeHD 8" telescope without touching the primary mirror lock knobs and the manual focus knob. This way, even if you add the optional 0.7x reducer (that reduces backfocus from 133mm to 105mm) you still have a lot of space to connect camera and accessories, also if you want to add the ARCO 2" camera rotator and field de-rotator!

ESATTO includes a special port allowing ARCO, the camera rotator and field de-rotator, to be directly connected. With ARCO, you can remotely control the rotation angle of your camera in order to achieve perfect framing of the object you want to record. If you have an alt-az mount, you can use ARCO to de-rotate the field without the need of an equatorial wedge! By connecting ESATTO 2” LP to ARCO 2” you will have a rotating focuser in just 54.2mm of thickness and 50.9mm of free aperture.




ESATTO 2 LP low profile focuser
