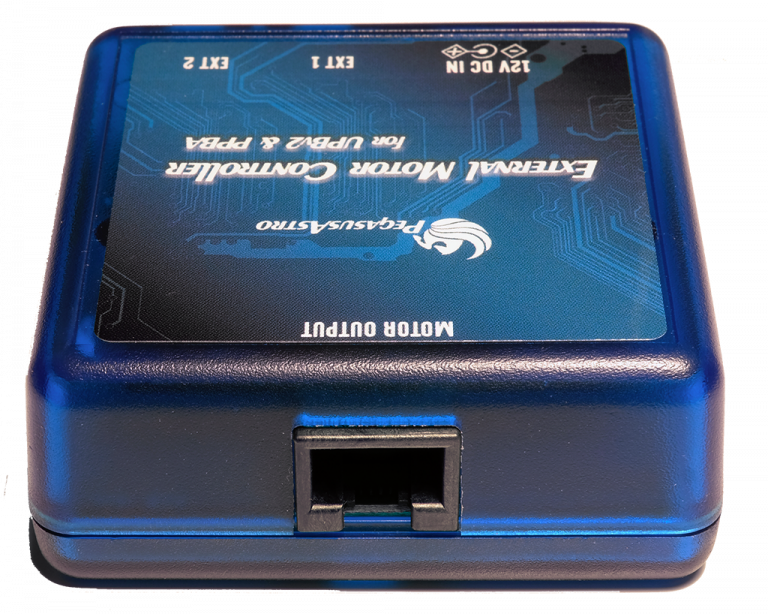

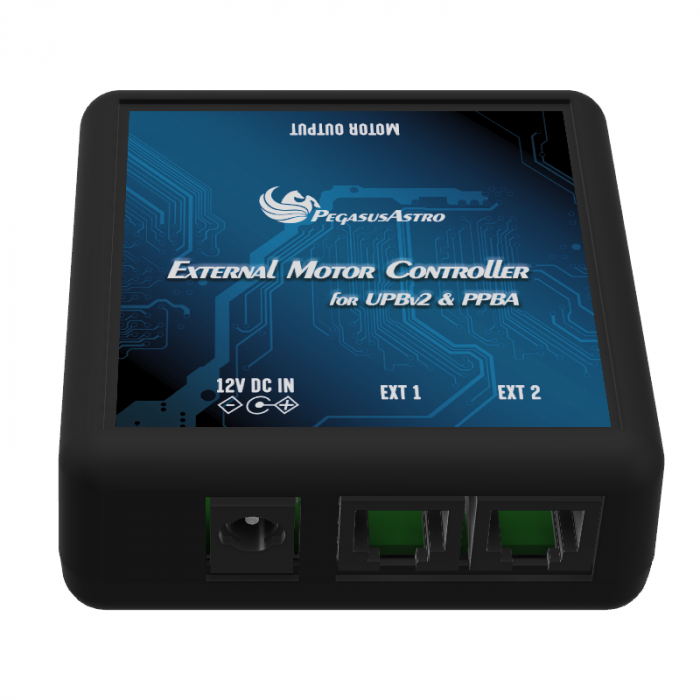

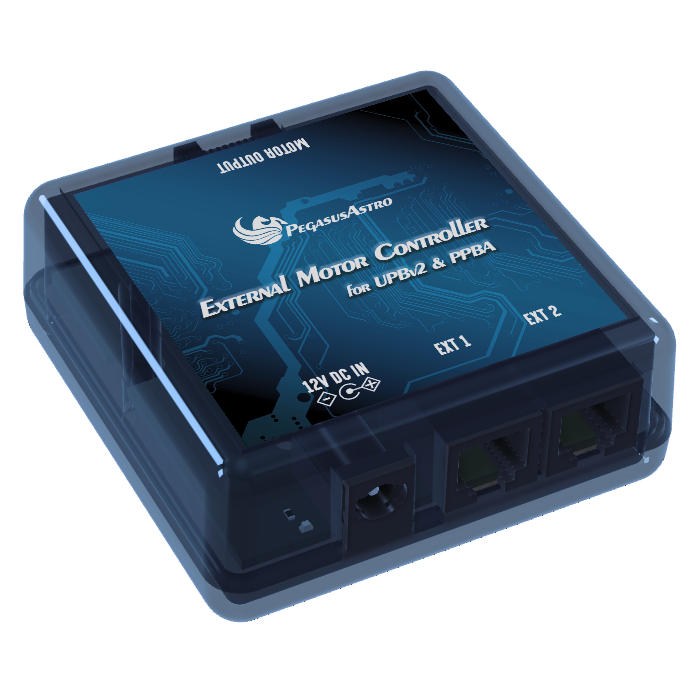

Pegasus Astro External Motor Controller

Starting Price: $168.00
Price as Configured: $168.00
Brand: Pegasus Astro / SKU: PEG-XMOTORCTRL

The Pegasus Astro External Motor Controller is a great expansion accessory for the “Ultimate Powerbox v2” and the Pocket Powerbox Advance. The external motor controller is designed to expand the focus capabilities of the "Ultimate Powerbox v2” (supports a 2nd focus controller) and adds focus functionality to the “Pocket Powerbox Advance." The device does not require a USB cable and can be attached directly to the EXT port of the Powerboxes. It can drive a large bipolar or unipolar stepper motor (up to 2Amps per coil) with high precision.

Recommended Add-ons and Accessories
Product Price Quantity
PEG-CMOT-HSM - Pegasus Astro Stepper Motor Cable for Starlight HSM Motor
PEG-CMOT-HSM - Pegasus Astro Stepper Motor Cable for Starlight HSM Motor
About This Product

RJ45 to RJ45 (Custom Pinout)

Compatible with:

  • Starlight HSM Motors
  • Starlight POSI Drive Motor
  • Optec QuickSync FT Motor
$18.00 each
PEG-CMOT-LCRT - Pegasus Astro Stepper Motor Cable for Lacerta Motor
PEG-CMOT-LCRT - Pegasus Astro Stepper Motor Cable for Lacerta Motor
About This Product
Stepper motor cable for Lacerta motor
$18.00 each
PEG-CMOT-MSM - Pegasus Astro Stepper Motor Cable for MSM and Rigel Motor
PEG-CMOT-MSM - Pegasus Astro Stepper Motor Cable for MSM and Rigel Motor
About This Product

RJ45 to RJ11 (Custom Pinout)

Compatible with:

  • Starlight MSM Motors
  • Rigel nStep Motors
$18.00 each
PEG-CMOT-RJ45D89 - Pegasus Astro Stepper Motor Cable for RJ45 to D89
PEG-CMOT-RJ45D89 - Pegasus Astro Stepper Motor Cable for RJ45 to D89
About This Product

RJ45 to DB9 (Custom Pinout)

Compatible with:

  • Lakeside Motors
  • Robofocus
  • MoonLite High Resolution Stepper Motor
$18.00 each
View More Add-ons and Accessories

Recommended Add-ons and Accessories

Enter the quantity desired for each item and click the close button to continue with your purchase.
PEG-CMOT-HSM - Pegasus Astro Stepper Motor Cable for Starlight HSM Motor
PEG-CMOT-HSM - Pegasus Astro Stepper Motor Cable for Starlight HSM Motor
$18.00
« Back to All Add-ons
PEG-CMOT-HSM - Pegasus Astro Stepper Motor Cable for Starlight HSM Motor
About This Product

RJ45 to RJ45 (Custom Pinout)

Compatible with:

  • Starlight HSM Motors
  • Starlight POSI Drive Motor
  • Optec QuickSync FT Motor
PEG-CMOT-LCRT - Pegasus Astro Stepper Motor Cable for Lacerta Motor
PEG-CMOT-LCRT - Pegasus Astro Stepper Motor Cable for Lacerta Motor
$18.00
« Back to All Add-ons
PEG-CMOT-LCRT - Pegasus Astro Stepper Motor Cable for Lacerta Motor
About This Product
Stepper motor cable for Lacerta motor
PEG-CMOT-MSM - Pegasus Astro Stepper Motor Cable for MSM and Rigel Motor
PEG-CMOT-MSM - Pegasus Astro Stepper Motor Cable for MSM and Rigel Motor
$18.00
« Back to All Add-ons
PEG-CMOT-MSM - Pegasus Astro Stepper Motor Cable for MSM and Rigel Motor
About This Product

RJ45 to RJ11 (Custom Pinout)

Compatible with:

  • Starlight MSM Motors
  • Rigel nStep Motors
PEG-CMOT-RJ45D89 - Pegasus Astro Stepper Motor Cable for RJ45 to D89
PEG-CMOT-RJ45D89 - Pegasus Astro Stepper Motor Cable for RJ45 to D89
$18.00
« Back to All Add-ons
PEG-CMOT-RJ45D89 - Pegasus Astro Stepper Motor Cable for RJ45 to D89
About This Product

RJ45 to DB9 (Custom Pinout)

Compatible with:

  • Lakeside Motors
  • Robofocus
  • MoonLite High Resolution Stepper Motor
PEG-PSU-1215 - Pegasus Astro Power Supply Unit 12V/1.5A - 2.1mm Plug\
PEG-PSU-1215 - Pegasus Astro Power Supply Unit 12V/1.5A - 2.1mm Plug\
$18.00
« Back to All Add-ons
PEG-PSU-1215 - Pegasus Astro Power Supply Unit 12V/1.5A - 2.1mm Plug\
About This Product

This PSU is suitable for the following products:

  • Falcon Rotator
  • FocusCube
  • Dual Motor Focus Controller
QTY:
Price as Configured: $168.00

Product Help
Need help deciding?
Tell us what you're looking for, and we’ll point you in the right direction. .

The External Motor Controller works with the following stepper motors (see the cable requirement also available from Deep Space Products):

STEPPER MOTOR CABLE TYPE
Pegasus Motor Focus (v1 & v2) Straight RJ45 Network Cable
Starlight HSM 25 / 30 / 35 PEG-CMOT-HSM
Starlight MSM 25 / 30 / 35 PEG-CMOT-MSM
Starizona Micro-Touch PEG-CMOT-MSM
Rigel nStep Motors PEG-CMOT-MSM
Moonlite Stepper Motor PEG-CMOT-RJ45DB9
Robofocus Stepper Motor PEG-CMOT-RJ45DB9
Lakeside Stepper Motor PEG-CMOT-RJ45DB9
Lacerta Motor PEG-CMOT-LCRT

Microstepping

The External Motor Controller supports micro-stepping for a smooth rotation and extra precision. With software, configure it to Full, Half, 1/4 step and 1/8 step.

No USB Port Required

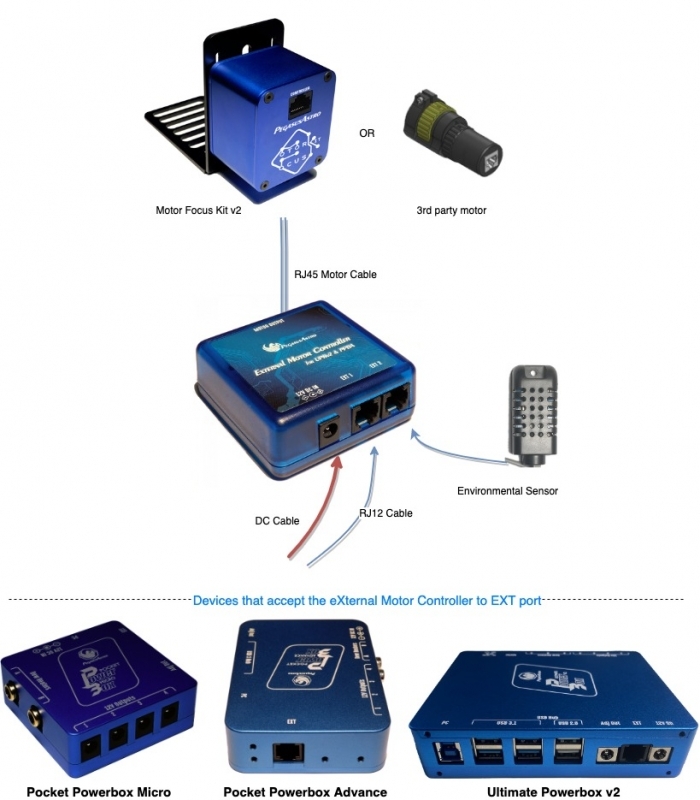

The External Motor Controller does not require USB connectivity and so it does not need to take up a USB port. Simply plug the RJ12 port into the UPBv2 or PPBA's EXT port and the powerbox software will recognize the controller.

Second EXT Port Available

A second EXT port allows you to daisy chain future equipment or connect your environmental sensor.

Protections

The controller is fully protected against undervoltage, overcurrent, and overtemperature events.
