Pegasus Astro Dual Motor Focus Controller

Starting Price: $204.00
Price as Configured: $204.00
Brand: Pegasus Astro / SKU: PEG-DMFC

The Pegasus Astro Dual Motor Focus Controller allows you to enjoy fast, reliable, and accurate telescope focusing with a stepper or DC motor. The Dual Motor Focus is designed from decades of experience in astrophotography and telescope focusing and assists in providing the focusing precision necessary to keep up with current technologies. Fast optics and modern camera devices require automatic focusing in every small period of time since temperature can affect focal length and modify the optimal focus position. The Pegasus Dual Motor Focus Controller meets these requirements.

Recommended Add-ons and Accessories
Product Price Quantity

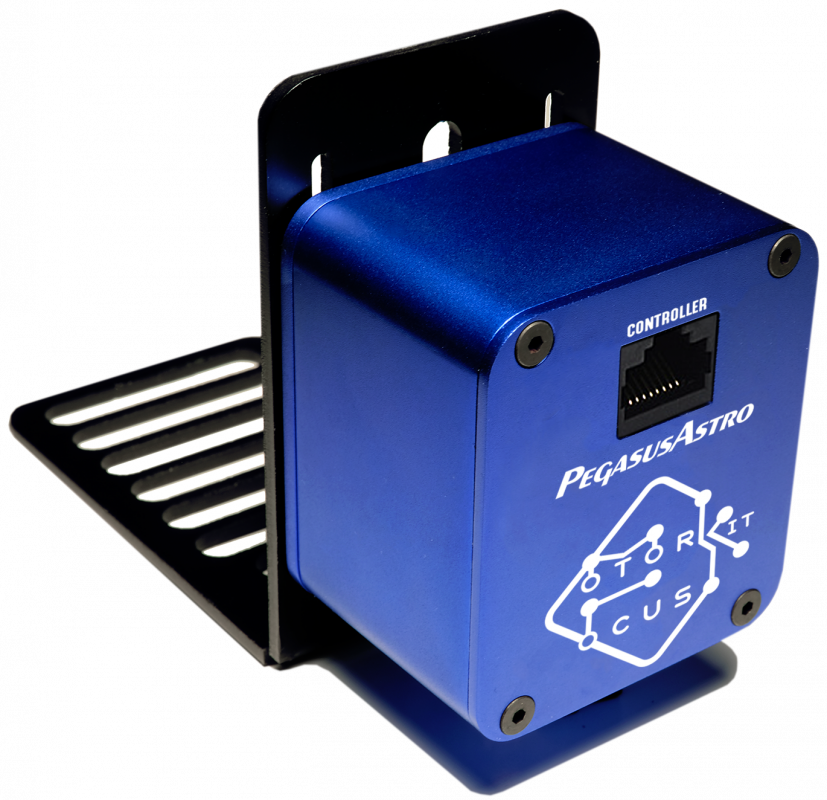

PEG-MFKv2-UNIV - Pegasus Astro Motor Focus Kit v.2 (Universal)
PEG-MFKv2-UNIV - Pegasus Astro Motor Focus Kit v.2 (Universal)
About This Product

Focus your telescope accurately and quickly using Pegasus Astro’s powerful Motor Focus Kit. This high resolution blue anodized gearbox has a 0.06 degree step size and can easily lift more than 6 kg (per cm) due to its high torque.  The RJ45 socket converts to the compatible Robofocus pinout.

Note: Don't forget to add a stepper controller to drive the motor. Check out the Dual Motor Focus Controller, Ultimate Powerbox, or the External Motor Controller below.



$144.00 each
PEG-MFKZERO-SCT11 - Pegasus Astro Motor Focus Kit Zero Celestron SCT C11, EdgeHD
PEG-MFKZERO-SCT11 - Pegasus Astro Motor Focus Kit Zero Celestron SCT C11, EdgeHD
About This Product
Focus your Celestron Schmidt-Cassegrain Telescope accurately and quickly the Pegasus Astro powerful Motor Focus Kit Zero. This fast and zero backlash stepper motor has the required torque to focus your telescope with great precision.

The pulley and belt design allows the motor to stay clear of your filter wheel (and not collide with it) when you use a focal reducer.  Its sophisticated bracket design is made to fit all Celestron SCTs and RASAs with this specific model containing a metal pulley with a bore size that is compatible with the 22 mm focus shaft on 11" telescopes.

The Pegasus Astro Motor Focus Kit SCT has been replaced by the this Motor Focus Kit Zero. Zero allows backlash free movement and is much faster than previous model. Don't forget to add a stepper controller to drive the motor. Check out the Dual Motor Focus Controller, Ultimate Powerbox, or External Motor Controller below.

$186.00 each

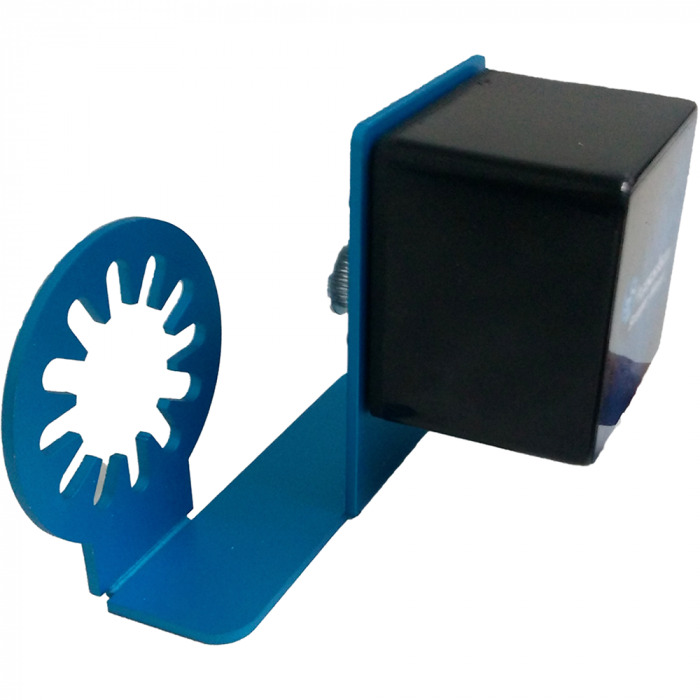

PEG-MFKZERO-SCT68925 - Pegasus Astro Motor Focus Kit Zero Celestron SCT C6, 8, 9.25'', Edge, RASA 8"
PEG-MFKZERO-SCT68925  - Pegasus Astro Motor Focus Kit Zero Celestron SCT C6, 8, 9.25'', Edge, RASA 8"
About This Product
Focus your Celestron Schmidt-Cassegrain Telescope accurately and quickly the Pegasus Astro powerful Motor Focus Kit Zero. This fast and zero backlash stepper motor has the required torque to focus your telescope with great precision.

The pulley and belt design allows the motor to stay clear of your filter wheel (and not collide with it) when you use a focal reducer.  Its sophisticated bracket design is made to fit all Celestron SCTs and RASAs with this specific model containing a metal pulley with a bore size that is compatible with the 13 mm focus shaft on 6", 8", and 9.25" telescopes.

The Pegasus Astro Motor Focus Kit SCT has been replaced by the this Motor Focus Kit Zero. Zero allows backlash free movement and is much faster than previous model. Don't forget to add a stepper controller to drive the motor. Check out the Dual Motor Focus Controller, Ultimate Powerbox, or External Motor Controller below.

$186.00 each
PEG-PSU-1215 - Pegasus Astro Power Supply Unit 12V/1.5A - 2.1mm Plug\
PEG-PSU-1215 - Pegasus Astro Power Supply Unit 12V/1.5A - 2.1mm Plug\
About This Product

This PSU is suitable for the following products:

  • Falcon Rotator
  • FocusCube
  • Dual Motor Focus Controller
$18.00 each

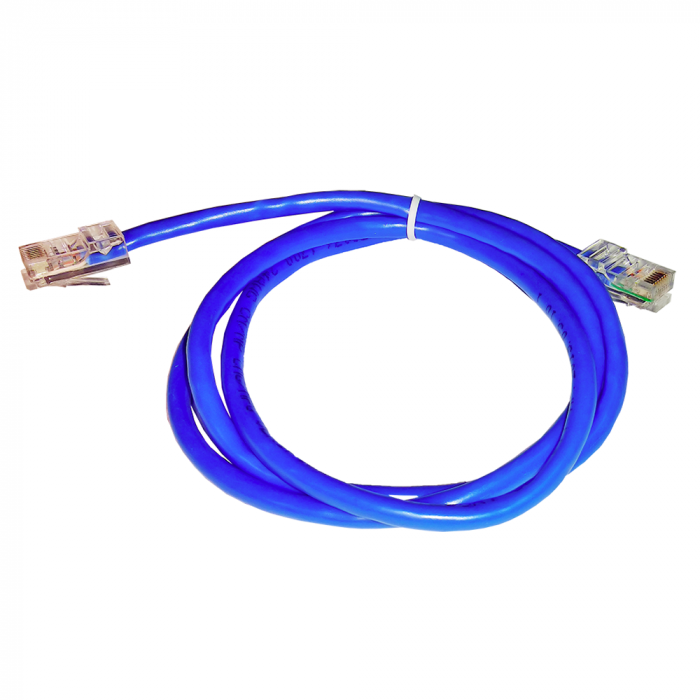

PEG-CMOT-HSM - Pegasus Astro Stepper Motor Cable for Starlight HSM Motor
PEG-CMOT-HSM - Pegasus Astro Stepper Motor Cable for Starlight HSM Motor
About This Product

RJ45 to RJ45 (Custom Pinout)

Compatible with:

  • Starlight HSM Motors
  • Starlight POSI Drive Motor
  • Optec QuickSync FT Motor
$18.00 each
PEG-CMOT-LCRT - Pegasus Astro Stepper Motor Cable for Lacerta Motor
PEG-CMOT-LCRT - Pegasus Astro Stepper Motor Cable for Lacerta Motor
About This Product
Stepper motor cable for Lacerta motor
$18.00 each

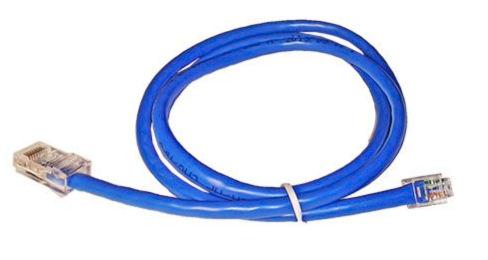

PEG-CMOT-MSM - Pegasus Astro Stepper Motor Cable for MSM and Rigel Motor
PEG-CMOT-MSM - Pegasus Astro Stepper Motor Cable for MSM and Rigel Motor
About This Product

RJ45 to RJ11 (Custom Pinout)

Compatible with:

  • Starlight MSM Motors
  • Rigel nStep Motors
$18.00 each

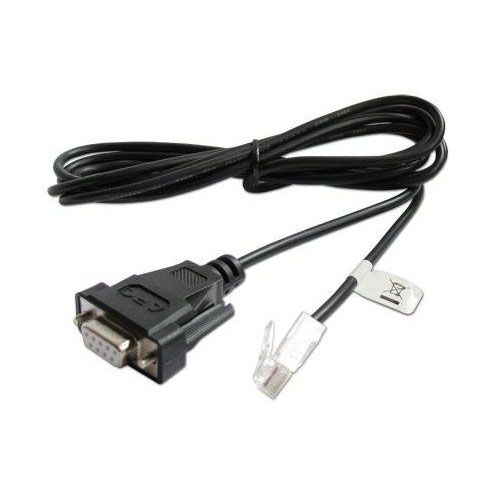

PEG-CMOT-RJ45D89 - Pegasus Astro Stepper Motor Cable for RJ45 to D89
PEG-CMOT-RJ45D89 - Pegasus Astro Stepper Motor Cable for RJ45 to D89
About This Product

RJ45 to DB9 (Custom Pinout)

Compatible with:

  • Lakeside Motors
  • Robofocus
  • MoonLite High Resolution Stepper Motor
$18.00 each
QTY:
Price as Configured: $204.00

Product Help
Need help deciding?
Tell us what you're looking for, and we’ll point you in the right direction. .

Dual Mode

The Dual Motor Focus Controller supports the following two motor types:

  • High Resolution Stepper motors (unipolar and bipolar) for absolute position focusing.
  • DC motors with their Pulse Width Modulation (PWM) duty cycle control.

Controller software allows you to switch between stepper and dc motor modes instantly with just one mouse click and then save to the controller's EEPROM memory.

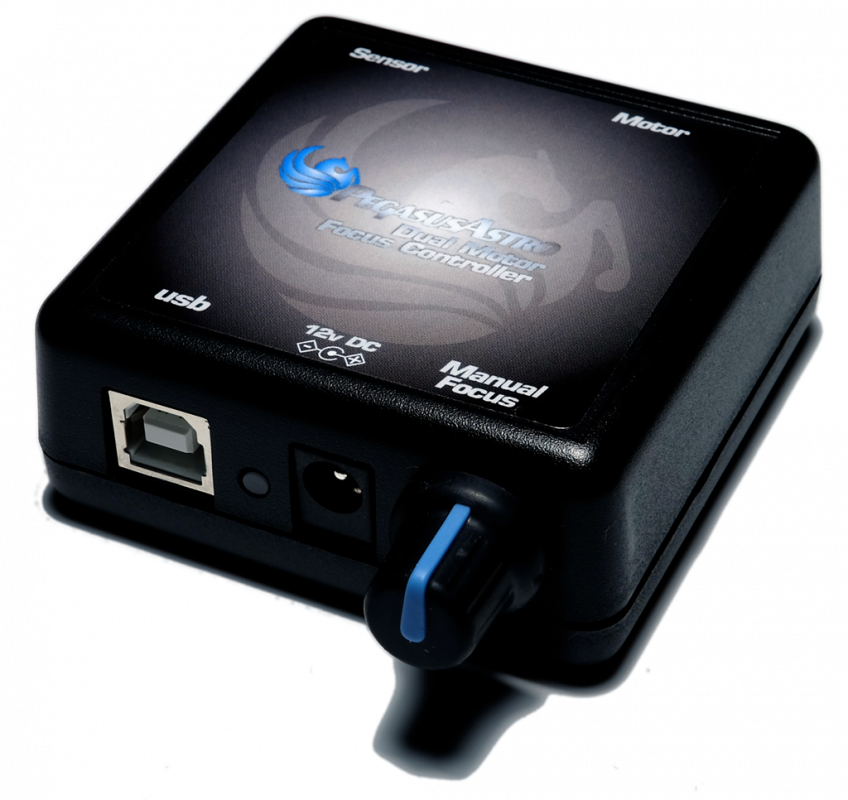

Manual and PC Operation

This controller has USB 2.0 connectivity so it can be operated via a PC. The digital encoder located on the side of the controller simulates your actual focuser's knob for manual operation. Pressing this digital encoder reduces motor speed to 1:10.

Dual Color Indicator

This Dual Motor Focus Controller is equipped with a dual green and yellow light emitting diode (LED) on its side. LED colors indicate speed and can be turned on or off during observing sessions using the controller's software. Keeping the LED pressed disables the knob.

Supported Motors

Please note that each motor requires its own cable due to the different pin-out selection of each manufacturer. Check cable type SKU at below table and add to your order above (see "Recommended Add-ons and Accessories).

STEPPER MOTOR CABLE TYPE
Pegasus Motor Focus (v1 & v2) Straight RJ45 Network Cable
Starlight HSM 25 / 30 / 35 PEG-CMOT-HSM
Starlight MSM 25 / 30 / 35 PEG-CMOT-MSM
Starizona Micro-Touch PEG-CMOT-MSM
Rigel nSTEP Motors PEG-CMOT-MSM
Moonlite Stepper Motor PEG-CMOT-RJ45DB9
Robofocus Stepper Motor PEG-CMOT-RJ45DB9
Lakeside Stepper Motor PEG-CMOT-RJ45DB9

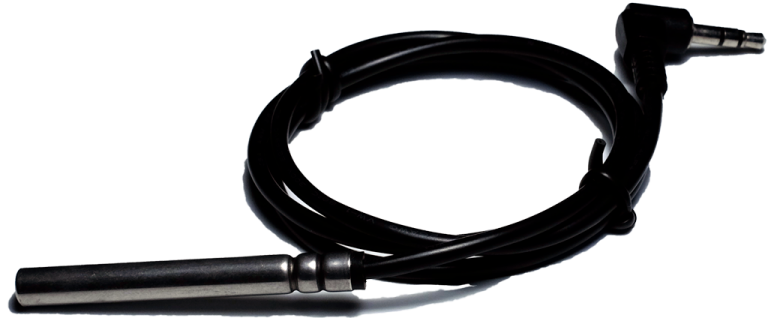

Temperature Probe

An external digital temperature sensor input is located near the motor connector. This input accepts the included one (1) meter long digital probe. This can be placed near the focuser so that the precise temperature of the focuser/environment can be determined through the supplied software or ASCOM driver.

Backlash Compensation

The Pegasus motor has minimal backlash, but the Dual Motor Focus Controller still features backlash compensation for use with other systems. This is supported via the controller's interior firmware.

ASCOM Compliant

The controller is fully compliant with the latest ASCOM6 and can be controlled from your computer.

Firmware Upgrade Support

The Controller firmware supports re-programming for Pegasus Astro upgrades via the USB 2.0 connection and upgrade software.

Warranty

A two-year warranty covers the controller device and temperature sensor.
