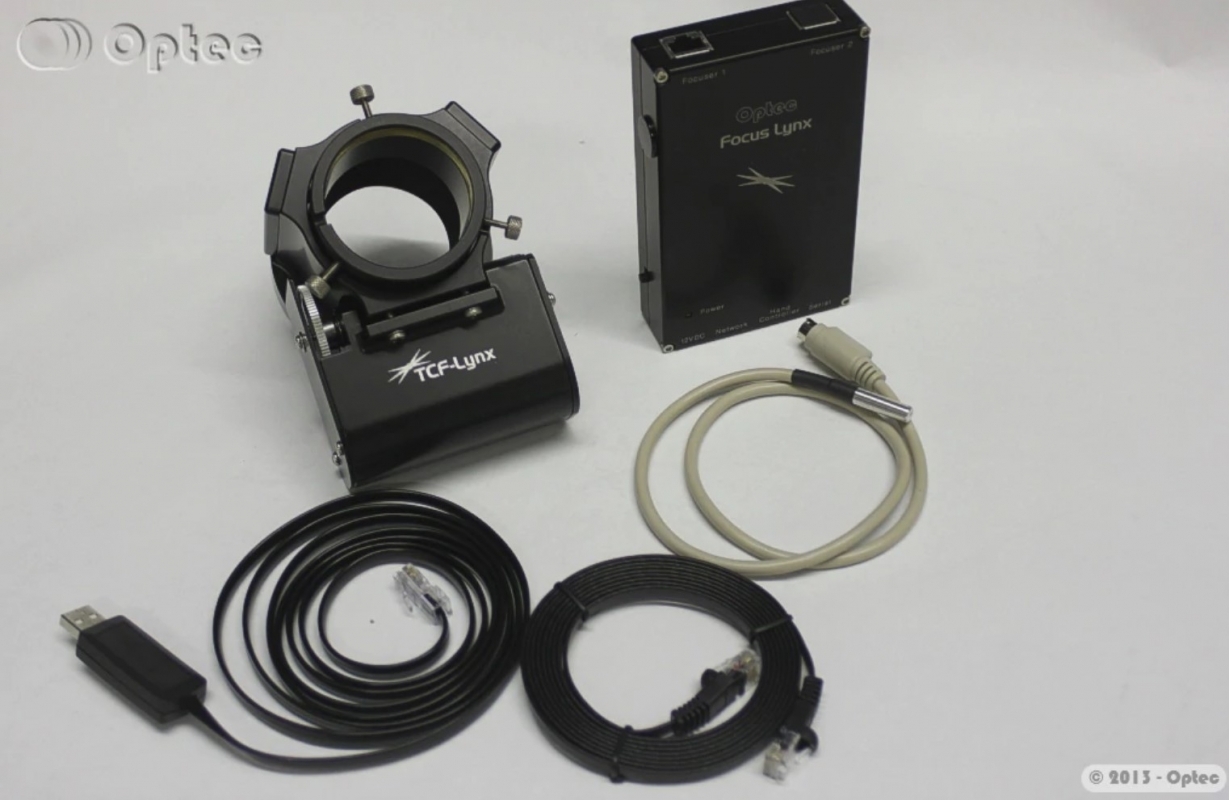

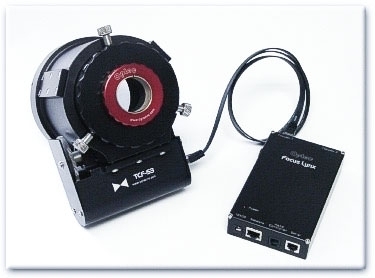

Optec TCF-Lynx3, 3" Temperature Compensating Focuser with FocusLynx Controller

Starting Price: $1,895.00
Price as Configured: $1,895.00
Brand: Optec / SKU: OP-19706
The TCF-Lynx continues the long tradition of the TCF-S focuser - a robust, 3-inch Crayford style focuser capable of handling 10-lb. (4.5 kg) camera packages without flexure. As a true absolute ASCOM homing focuser, the TCF-Lynx is capable of fully unattended telescope focus control with unprecedented positional accuracy.

  • Telescope side interface: Optec-4300 dovetail system
  • Camera side interface: 3" Optec-3000 receiver. 2" Precision Centering Adapter is included.
Connectivity: Serial, USB, ethernet, optional wifi

Includes FocusLynx Dual-Focuser control hub.

Price as Configured: $1,895.00

Product Help
Need help deciding?
Tell us what you're looking for, and we’ll point you in the right direction. .
Lifting Capacity22 lbs. (10kg)
Step Resolution2.5 micron / step
Weight10 lb
Clear Aperture3.0 inches (76.2mm)
Back-focus Usage3.8 to 4.8-inches (96.5 to 122mm)
