Optec Sagitta Off-Axis Guider

Starting Price: $995.00
Price as Configured: $995.00
Brand: Optec / SKU: OP-19340
The Sagitta OAG to provide a solution for remote imagers who require the ability to adjust guide camera focus independently of the imaging camera focus.
Recommended Add-ons and Accessories
Product Price Quantity
OP-19533 - Optec FocusLynx Stepper Board for Second Focuser
OP-19533 - Optec FocusLynx Stepper Board for Second Focuser
About This Product

The standard FocusLynx Controller hub can be converted into a Dual-Focus Controller with the addition of the optional Second Stepper Driver board. Featuring an easy-to-install board with a double row connector, the Second Stepper Driver pushes directly into the main FocusLynx control board. Compatible with:

  • Optec FocusLynx controller,
  • Starlight Instruments FocusBoss II controller.
$40.00 each
OP-19690 - Optec FocusLynx Dual-Focus Control Hub
OP-19690 - Optec FocusLynx Dual-Focus Control Hub
About This Product

Optec's FocusLynx Controller is capable of operating two focusers simultaneously and has full ASCOM compliance.

$350.00 each
OP-19691 - Optec Universal Mounting Bracket for Focus Lynx Control Hub
OP-19691 - Optec Universal Mounting Bracket for Focus Lynx Control Hub
About This Product

The Optec Universal Mounting Bracket screws directly to the back of the FocusLynx Control Hub back and allows easy attachment to most any mount.

  • Material:  6061 aluminum, anodized black
  • Length:  4.9" (124mm)
  • Width:  4.7" (120mm)
  • Thickness: 0.1" (2.5mm)
  • Weight: 1.8 oz (50 g)
  • Mounting Holes:  Clearance for 1/4-20
  • Connection to FocusLynx:  Four 4-40 flathead screws (included)
$55.00 each
View More Add-ons and Accessories

Recommended Add-ons and Accessories

Enter the quantity desired for each item and click the close button to continue with your purchase.
OP-19533 - Optec FocusLynx Stepper Board for Second Focuser
OP-19533 - Optec FocusLynx Stepper Board for Second Focuser
$40.00
« Back to All Add-ons
OP-19533 - Optec FocusLynx Stepper Board for Second Focuser
About This Product

The standard FocusLynx Controller hub can be converted into a Dual-Focus Controller with the addition of the optional Second Stepper Driver board. Featuring an easy-to-install board with a double row connector, the Second Stepper Driver pushes directly into the main FocusLynx control board. Compatible with:

  • Optec FocusLynx controller,
  • Starlight Instruments FocusBoss II controller.
OP-19690 - Optec FocusLynx Dual-Focus Control Hub
OP-19690 - Optec FocusLynx Dual-Focus Control Hub
$350.00
« Back to All Add-ons
OP-19690 - Optec FocusLynx Dual-Focus Control Hub
About This Product

Optec's FocusLynx Controller is capable of operating two focusers simultaneously and has full ASCOM compliance.

OP-19691 - Optec Universal Mounting Bracket for Focus Lynx Control Hub
OP-19691 - Optec Universal Mounting Bracket for Focus Lynx Control Hub
$55.00
« Back to All Add-ons
OP-19691 - Optec Universal Mounting Bracket for Focus Lynx Control Hub
About This Product

The Optec Universal Mounting Bracket screws directly to the back of the FocusLynx Control Hub back and allows easy attachment to most any mount.

  • Material:  6061 aluminum, anodized black
  • Length:  4.9" (124mm)
  • Width:  4.7" (120mm)
  • Thickness: 0.1" (2.5mm)
  • Weight: 1.8 oz (50 g)
  • Mounting Holes:  Clearance for 1/4-20
  • Connection to FocusLynx:  Four 4-40 flathead screws (included)
OP-19950 - Optec-3000-S to T-thread
OP-19950 - Optec-3000-S to T-thread
$95.00
« Back to All Add-ons
OP-19950 - Optec-3000-S to T-thread
About This Product

OPTEC-3000-S short dovetail adapter to M42x0.75mm T-thread.

OP-19951 - Optec-3000-S Short to M54 x 0.75mm
OP-19951 - Optec-3000-S Short to M54 x 0.75mm
$95.00
« Back to All Add-ons
OP-19951 - Optec-3000-S Short to M54 x 0.75mm
About This Product

OPTEC-3000-S short dovetail adapter to M54x0.75mm T-thread.

OP-19952 - Optec-3000-S to 2” x 24tpi
OP-19952 - Optec-3000-S to 2” x 24tpi
$95.00
« Back to All Add-ons
OP-19952 - Optec-3000-S to 2” x 24tpi
About This Product
OPTEC-3000-S short dovetail adapter to 2" X 24tpi threaded interface. Fits FLI filter wheels.

Outside Diameter: 3.15" (80mm)
Overall Height: .6" (15.2mm)
Clear Aperture: 1.8" (45.7mm)
Weight: 1.4oz (39.7g)
Back-focus Usage: .10" (2.54mm)
OP-19953 - Optec-3000-S to 3” x 24tpi
OP-19953 - Optec-3000-S to 3” x 24tpi
$95.00
« Back to All Add-ons
OP-19953 - Optec-3000-S to 3” x 24tpi
About This Product
OPTEC-3000-S short 3-inch dovetail adapter to short 3" X 24tpi male thread. Fits FLI filter wheels.
OP-19954 - Optec-3000-S to FLI ZTA
OP-19954 - Optec-3000-S to FLI ZTA
$95.00
« Back to All Add-ons
OP-19954 - Optec-3000-S to FLI ZTA
About This Product
OPTEC-3000-S short 3-inch dovetail adapter to FLI Centerline ZTA adapter
OP-19955 - Optec-3000-S to FLI M92 x 1mm
OP-19955 - Optec-3000-S to FLI M92 x 1mm
$95.00
« Back to All Add-ons
OP-19955 - Optec-3000-S to FLI M92 x 1mm
About This Product
OPTEC-3000-S short 3-inch dovetail adapter to M92 x 1mm short thread.
OP-19956 - Optec-3000-S to M72 x 1mm
OP-19956 - Optec-3000-S to M72 x 1mm
$95.00
« Back to All Add-ons
OP-19956 - Optec-3000-S to M72 x 1mm
About This Product
OPTEC-3000-S short 3-inch dovetail adapter to male M72 Takahashi thread.

OP-19958 - Optec-3000-S to M48 x 0.75mm Female
OP-19958 - Optec-3000-S to M48 x 0.75mm Female
$95.00
« Back to All Add-ons
OP-19958 - Optec-3000-S to M48 x 0.75mm Female
About This Product
OPTEC-3000-S short 3-inch dovetail adapter to female M48 x 0.75mm thread adapter.
OP-19957 - Optec-3000-S to M68 x 1mm
OP-19957 - Optec-3000-S to M68 x 1mm
$95.00
« Back to All Add-ons
OP-19957 - Optec-3000-S to M68 x 1mm
About This Product
OPTEC-3000-S short 3-inch dovetail adapter to M68X1mm adapter.
QTY:
Price as Configured: $995.00

Product Help
Need help deciding?
Tell us what you're looking for, and we’ll point you in the right direction. .

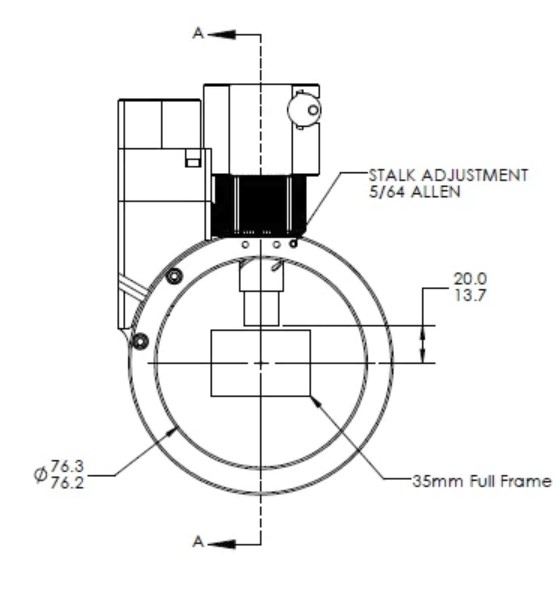

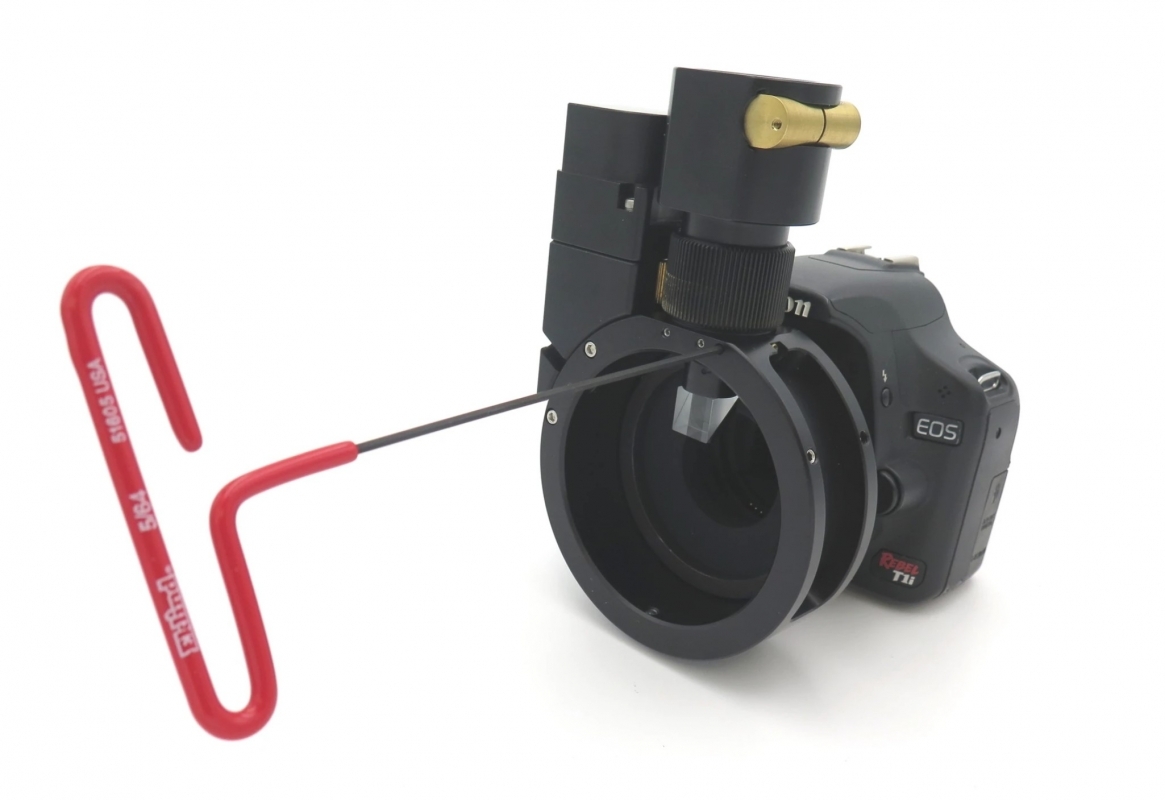

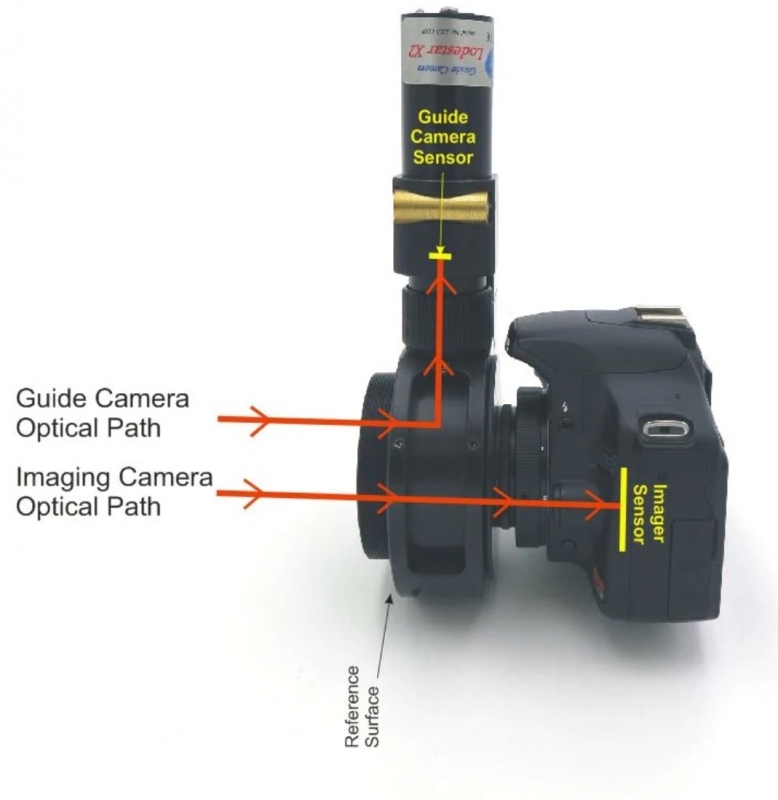

Featuring a full 3-inch (76.2mm) clear aperture, Sagitta includes a high-quality fully multi-coated pick-off prism with 12.5mm clear aperture to the guide camera. Sagitta features a large brass split-clamp for attachment of any 1-1/4” format guide camera with plenty of range for setting the guide camera parfocal to the imaging camera. Adjusting the prism stalk height can be accomplished with a single tool and provides prism engagement adjustment of 12mm. Overall, guide camera adjustments exceed 42mm while the OAG body thickness is held at only 31.75mm or 1-1/4”. The Sagitta uses the new OPTEC-3000-S dovetail to connect to various interfaces.

Note: Requires the #19690 FocusLynx Controller (sold separately) or Starlight Instruments FocusBoss II controller. The #19533 Secondary Stepper board allows you to convert the single focuser models into dual focuser models.
