Optec Hercules Focusing Rotator

Optec Hercules Focusing Rotator

Starting Price: $2,495.00
Price as Configured: $2,495.00
Brand: Optec / SKU: OP-19749

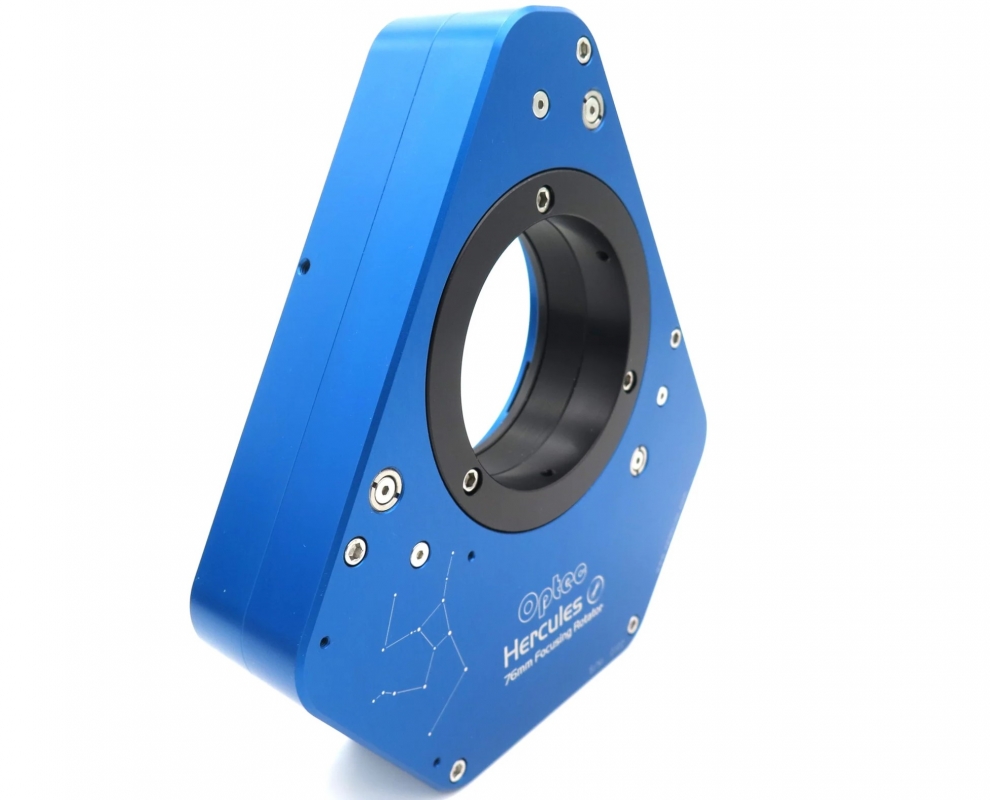

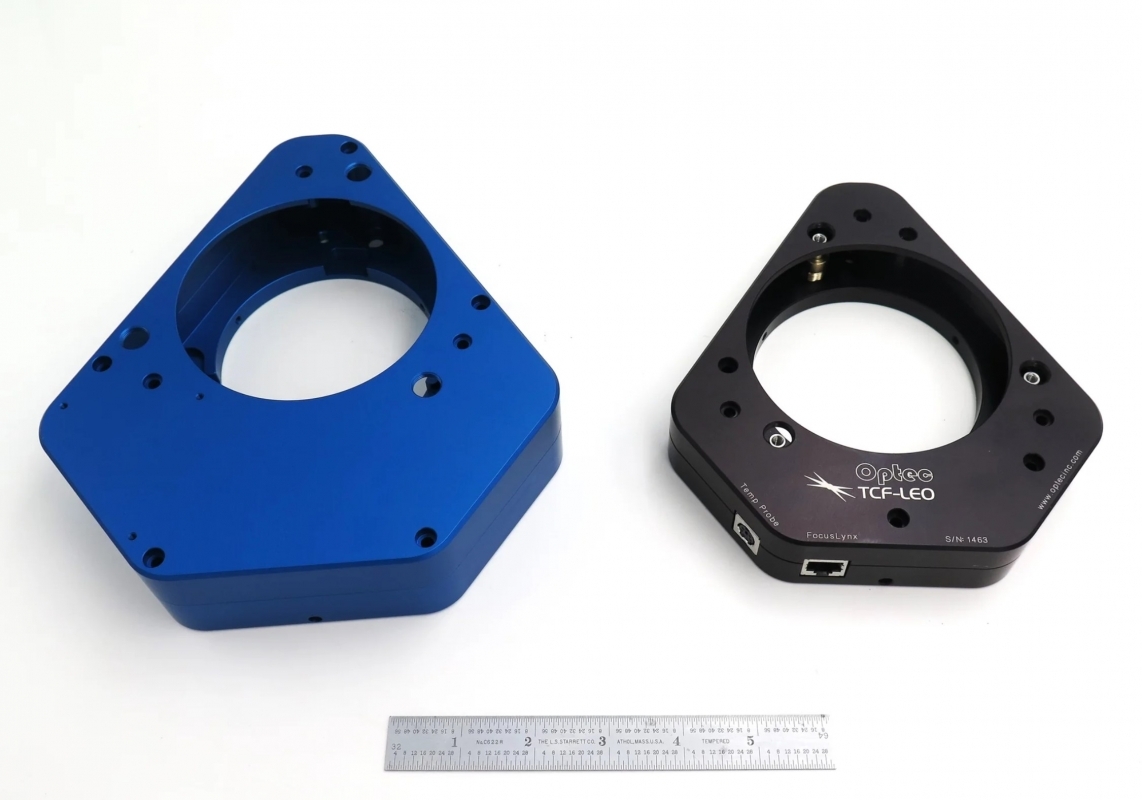

Optec’s new Hercules rotating focuser brings together precision focusing and camera field rotation in one compact, ultra-rigid package. Designed as a slightly smaller sibling to the proven Gemini focuser/rotator, Hercules delivers a full 3-inch clear aperture with 0.35 inches (9mm) of linear travel, all while maintaining an incredibly slim profile at under 2 inches thick.

Powered by Optec’s best-in-class ASCOM and Alpaca drivers, Hercules offers far more than just focus control. Advanced features include alt-az field de-rotation, image orientation, composition framing, and guide-star acquisition—making Hercules a versatile tool for both astrophotography and scientific imaging.

Compact, precise, and engineered for performance, Hercules puts big-league functionality into a slimmer, lighter package.

Takahashi Epsilon Kit (Required)
View Add-ons and Accessories

Recommended Add-ons and Accessories

Enter the quantity desired for each item and click the close button to continue with your purchase.
OP-19819 - Optec 3600 for Hercules and Takahashi Epsilon 130
OP-19819 - Optec 3600 for Hercules and Takahashi Epsilon 130
$375.00
Qty:
View Details
« Back to All Add-ons
OP-19819 - Optec 3600 for Hercules and Takahashi Epsilon 130
About This Product
Takahashi Epsilon 130 replacement saddle mount to OPTEC-3600 for Hercules rotating focuser.
OP-19817 - Optec 3600 for Hercules and Takahashi Epsilon 160
OP-19817 - Optec 3600 for Hercules and Takahashi Epsilon 160
$375.00
Qty:
View Details
« Back to All Add-ons
OP-19817 - Optec 3600 for Hercules and Takahashi Epsilon 160
About This Product
Takahashi Epsilon 160 replacement saddle mount to OPTEC-3600 for Hercules rotating focuser.
QTY:
Price as Configured: $2,495.00
Product Help
Need help deciding?
Tell us what you're looking for, and we’ll point you in the right direction. .
HERCULES SPECIFICATIONS

Physical:
Clear Aperture: 76.2mm
Height: 8.17" (208mm)
Width: 7.48" (190mm)

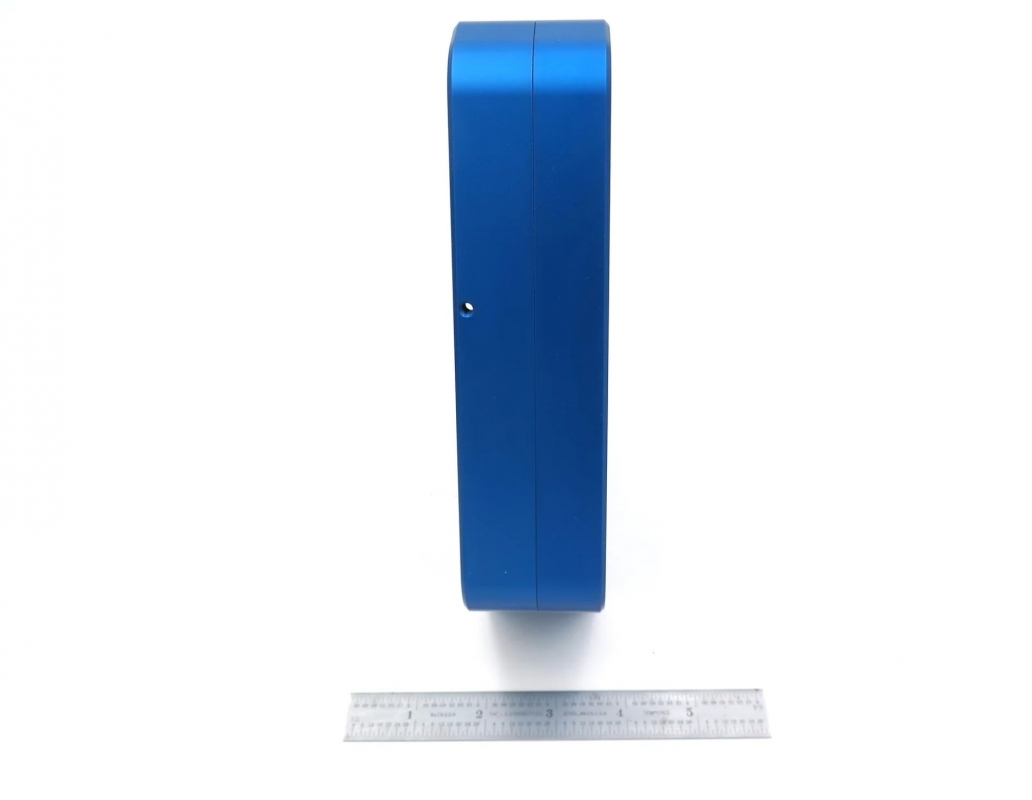

Thickness: 1.81" to 2.16" (46.0 to 54.9mm), at midpoint: 1.99" (50.5mm)
Weight: 3-lb. 8 oz. (1.6 kg)

Interface:
Telescope side: OPTEC-3600 receiver
Camera side: OPTEC-3000 3-inch receiver

Focuser:
Total Travel: 0.350" (8.89mm)
Total Steps: 112,000 steps
Resolution: 0.079 micron/step
Motor: Lin Engineering Hybrid Stepper 3709 Series
Made in USA

Rotator:
Total Steps: 168,000 steps
Resolution: 7.7 arc seconds / step
Rotation Speed: variable, ~ 3 degrees/second
Motor: Lin Engineering Hybrid Stepper 211 Series, NEMA 11
Made in USA

Electronics:
Circuit board: Internal
Communications: USB-C and Ethernet
Additional: Temperature Probe 3.5mm socket
2.5 x 5.5mm power socket
Power LED indicator

Power:
Power draw: 1.25A max, 0.6A while moving, 0.4A holding
Input voltage: 12VDC
Input connector: 2.5x5.5mm barrel plug, center pin positive

Software:
Compatibility: ASCOM and Alpaca
Capabilities: Focus, Guide star acquisition, field composition, Alt-Az De-rotation
De-Rotation: Compatible with Planewave L-mounts, TheSky X, Maxim D/L, N.I.N.A.
Any fully configured mount with ASCOM driver.
