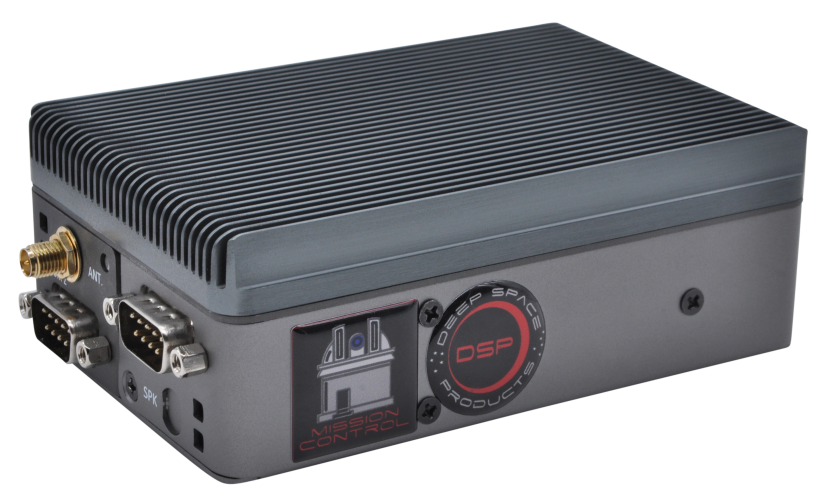

Small form factor, dustproof, ventless, industrial-grade fanless observatory computer.
Unlike other available small form-factor computers, the MC75 is completely fanless, protecting against dust or other debris in observatory applications. Removing the fan also removes a point of failure, creating a solid state solution with no moving parts that will outlast commercial mini PCs, laptops and desktops in the observatory. In addition, the use of passive cooling reduces the potential for vibration and eliminates all noise.
The single-interface heat sink provides optimal heat transfer, further improving cooling performance over other cases.
Power can be supplied from any 12VDC power source with at least 2.0 amps recommended. Peak system power consumption is approximately 1 amp. The power connector is a standard 2.5mm barrel connector.
Comes with Windows 10 Pro installed. We can provide additional services to install software sold by Deep Space Products or your own software that you provide to us.
We can also provide custom configurations, like the one seen below. Custom configurations can include complete custom scope-top systems with the computer and other observatory equipment, mountings, custom-length cables, etc. Contact us for complete custom systems.
The base configuration for the MC75 includes the following:
Unlike other available small form-factor computers, the MC75 is completely fanless, protecting against dust or other debris in observatory applications. Removing the fan also removes a point of failure, creating a solid state solution with no moving parts that will outlast commercial mini PCs, laptops and desktops in the observatory. In addition, the use of passive cooling reduces the potential for vibration and eliminates all noise.
The single-interface heat sink provides optimal heat transfer, further improving cooling performance over other cases.
Measuring a scant 122 x 80 x 44 mm (4.8" x 3.15" x 1.73") and approximately 9.5 ounces (270 grams) , the MC75 is small enough and light enough for discreet placement in space-constrained observatory environments, particularly in scope-top applications.
Power can be supplied from any 12VDC power source with at least 2.0 amps recommended. Peak system power consumption is approximately 1 amp. The power connector is a standard 2.5mm barrel connector.
Comes with Windows 10 Pro installed. We can provide additional services to install software sold by Deep Space Products or your own software that you provide to us.
We can also provide custom configurations, like the one seen below. Custom configurations can include complete custom scope-top systems with the computer and other observatory equipment, mountings, custom-length cables, etc. Contact us for complete custom systems.
Fanless case with single-piece heat sink
Intel® Celeron® N3350 (2C. 1.1 GHz, up to 2.4 GHz, TDP 6W)
Windows 10 Pro
4GB RAM
64GB SSD
Wifi/Bluetooth with single antenna
RS-232 Com port
Intel® Celeron® N3350 (2C. 1.1 GHz, up to 2.4 GHz, TDP 6W)
Windows 10 Pro
4GB RAM
64GB SSD
Wifi/Bluetooth with single antenna
RS-232 Com port
RS-232/422/485 Com port
Board Specifications
Processor - Intel® Celeron® N3350 (2C. 1.1 GHz, up to 2.4 GHz, TDP 6W)Intel® HD Graphics 500
General Specifications
Storage
Internal Drive Form Factor - mSATA SSD (SATA 6.0Gb/s unused)
Internal Drives Supported - 1 x mSATA, 1 x SATA
Memory
Max Memory Size - 204-pin, Max. 8GB
Memory Type - DDR3L SODIMM x 1, DDR3L 1867MHz
Max # of DIMMs - 1
Graphics
Integrated graphics
HDMI output
Expansion
PCIe Mini Card Slot (Half Length) x 1 for WiFi card
I/O
USB3 x 2
Intel® Gigabit Ethernet i210AT, 10/100/1000Base-TX, RJ-45 x 1
Line-Out Connector x 1 (unused)
HDMI - 1
COM1: RS-232 x 1,
COM2: RS-232/422/485 x 1 (Ring/ +5V/ +12V)
Power
12 VDC, 2.0 amp
Warranty
20 Months
Processor - Intel® Celeron® N3350 (2C. 1.1 GHz, up to 2.4 GHz, TDP 6W)Intel® HD Graphics 500
General Specifications
Storage
Internal Drive Form Factor - mSATA SSD (SATA 6.0Gb/s unused)
Internal Drives Supported - 1 x mSATA, 1 x SATA
Memory
Max Memory Size - 204-pin, Max. 8GB
Memory Type - DDR3L SODIMM x 1, DDR3L 1867MHz
Max # of DIMMs - 1
Graphics
Integrated graphics
HDMI output
Expansion
PCIe Mini Card Slot (Half Length) x 1 for WiFi card
I/O
USB3 x 2
Intel® Gigabit Ethernet i210AT, 10/100/1000Base-TX, RJ-45 x 1
Line-Out Connector x 1 (unused)
HDMI - 1
COM1: RS-232 x 1,
COM2: RS-232/422/485 x 1 (Ring/ +5V/ +12V)
Power
12 VDC, 2.0 amp
Warranty
20 Months
Custom configurations adding things like super duty SSDs, SATA DOM, and cellular modems are available upon request.
