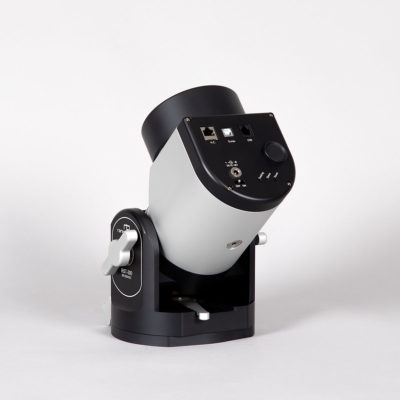

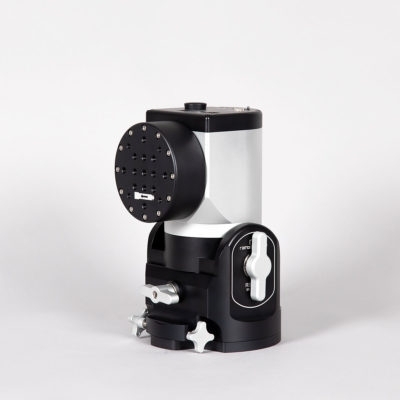

Rainbow Astro RST-300 Weightless Mount

Starting Price: $8,490.00
Price as Configured: $8,490.00
Brand: RainbowAstro / SKU: RA-MNT000300
  • Counterweights Not Required
  • Only 8.5kg weight
  • Capacity 30kg (max 50kg)
  • Strain Wave Gear (Harmonic Drive)
  • Built-in brake (RA Axis)
  • 5-years warranty
View Add-ons and Accessories

Recommended Add-ons and Accessories

Enter the quantity desired for each item and click the close button to continue with your purchase.

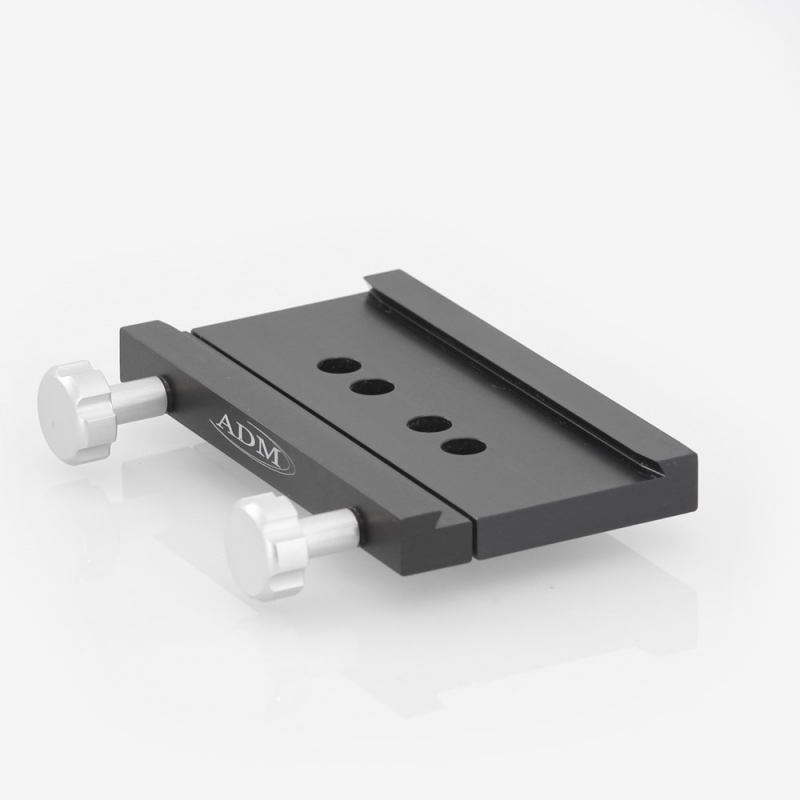

ADM-DSAD-M8 - ADM D Series Saddle. 8mm Counterbored Version
ADM-DSAD-M8 - ADM D Series Saddle. 8mm Counterbored Version
$105.00
« Back to All Add-ons
ADM-DSAD-M8 - ADM D Series Saddle. 8mm Counterbored Version
About This Product
Fits many ADM Accessories mount adapters as well as the Losmandy G11 and some Takahashi mounts. 2 holes 3″ apart, 2 holes 35mm apart for a 5/16″ or 8mm socket head cap screw. The split clamp design grips the dovetail bar along the entire surface of the saddle and will not dent or scratch the dovetail bar. Features two large locking hand knobs for tool free operation, spring loaded jaws, anodized aluminum and stainless steel construction. 7″ Long, 4″ Wide, .75″ thick, Wt. 26 oz.

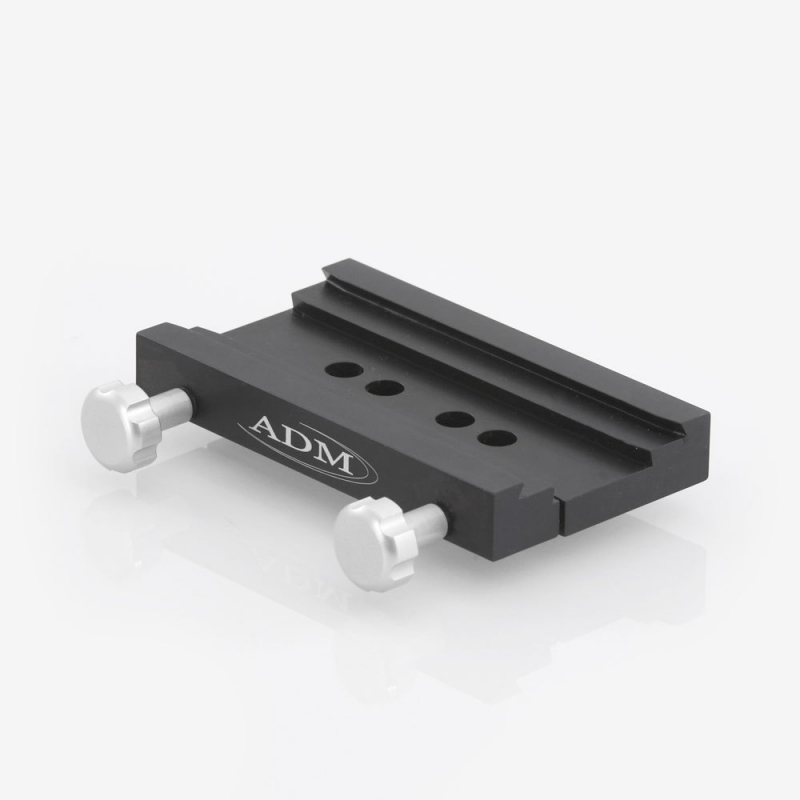

ADM-DUAL-M8 - ADM DUAL Series Saddle. 8mm Counterbored Version
ADM-DUAL-M8 - ADM DUAL Series Saddle. 8mm Counterbored Version
$125.00
« Back to All Add-ons
ADM-DUAL-M8 - ADM DUAL Series Saddle. 8mm Counterbored Version
About This Product
Fits many ADM Accessories mount adapters as well as the Losmandy G11 and some Takahashi mounts. Accepts both D Series and V Series dovetail bars. 2 holes 3"; apart, 2 holes 35mm apart for a 5/16"; or 8mm socket head cap screw. The split clamp design grips the dovetail bar along the entire surface of the saddle and will not dent or scratch the dovetail bar. Features two large locking hand knobs for tool free operation, spring loaded jaws, anodized aluminum and stainless steel construction. 7"; Long, 4"; Wide, .75"; thick, Wt. 26 oz. INCLUDED ITEMS: -1x DUAL Series Saddle -2x 1/4×20 SHCS

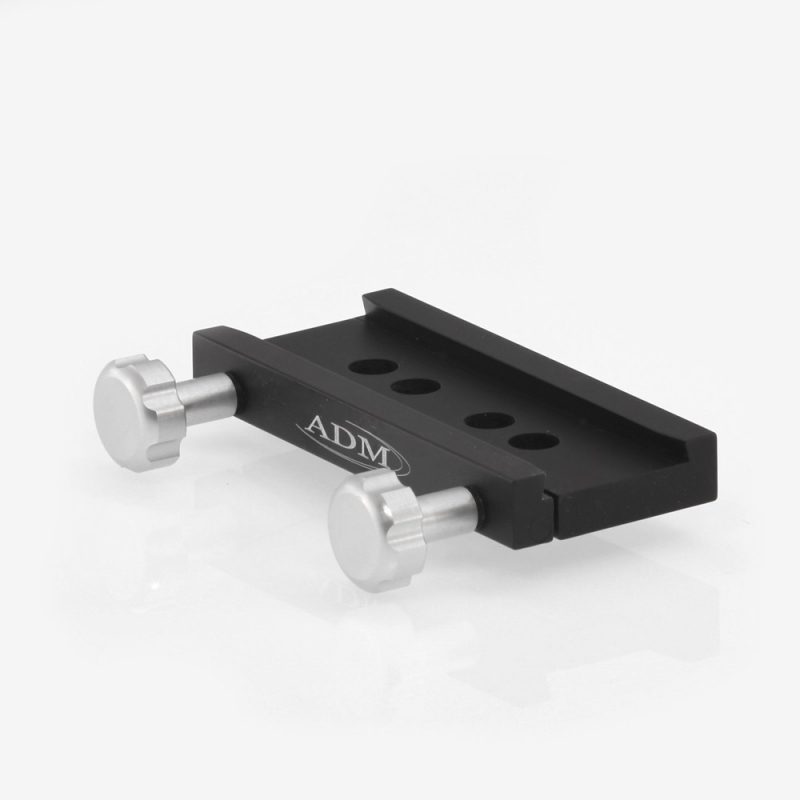

ADM-VSAD-M8 - ADM V Series Saddle. 8mm Counterbored Version
ADM-VSAD-M8 - ADM V Series Saddle. 8mm Counterbored Version
$85.00
« Back to All Add-ons
ADM-VSAD-M8 - ADM V Series Saddle. 8mm Counterbored Version
About This Product
ADM's V Series dovetail saddles are designed to replace the existing telescope mount saddle. The ADM V Series saddle features spring-loaded jaws, large locking hand knobs and full contact grip. All parts are machined from 6061 aluminum and have been anodized for long-lasting durability.

The ADM VSAD-M8 fits many ADM mount adapters, the Losmandy G11, and some Takahashi mounts. Two holes are 3″ apart, 2 holes 35mm apart for a 5/16″ or 8mm socket head cap screw. The split clamp design grips the dovetail bar along the entire surface of the saddle and will not dent or scratch the dovetail bar.

Includes:
- One V Series saddle
- Two 5/16x18 tpi socket head cap screws

6″ Long
2.5″ Wide
0.75″ thick
Weight 16 oz

DSP-DSD - D-Series Dovetail Clamp With 2 Brass clamps and 2 Locking Screws
DSP-DSD - D-Series Dovetail Clamp With 2 Brass clamps and 2 Locking Screws
$97.50
« Back to All Add-ons
DSP-DSD - D-Series Dovetail Clamp With 2 Brass clamps and 2 Locking Screws
About This Product
Length: 158MM
Center: 1/4
Four holes on the edge of the center: 35MM-8MM
6MM hole distance: 60MM
Edge slot: 95-140mm

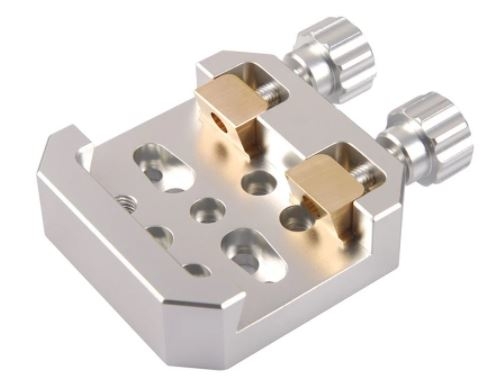

DSP-VSD - V-Series, Double Clamp Saddle
DSP-VSD - V-Series, Double Clamp Saddle
$55.00
« Back to All Add-ons
DSP-VSD - V-Series, Double Clamp Saddle
About This Product
Deluxe Vixen clamp w/Brass 2 clamps and 2 Locking screws
Loading weight 20kgs
Length 88mm
Height 28mm
dovetail upside 45mm
dovetail downside 49mm
dovetail depth 14mm
RA-ACCWT0500 - Rainbow Astro 3kg Counterweight
RA-ACCWT0500 - Rainbow Astro 3kg Counterweight
$80.00

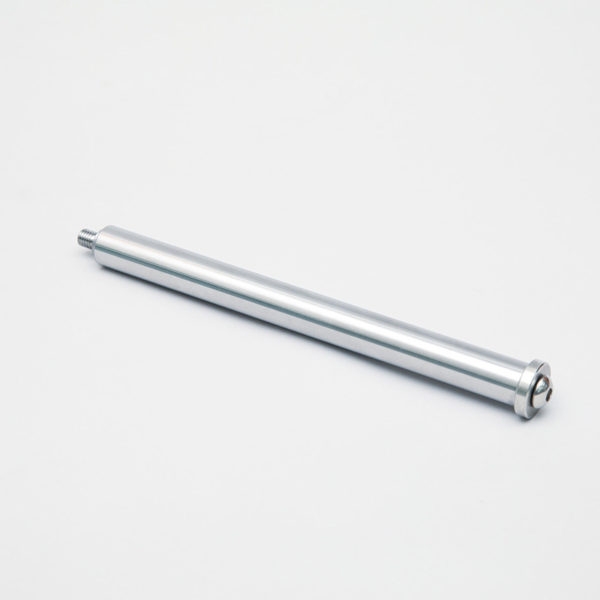

RA-ACCWS0200 - Rainbow Astro Counterweight Shaft
RA-ACCWS0200 - Rainbow Astro Counterweight Shaft
$40.00
QTY:
Price as Configured: $8,490.00
Product Help
Need help deciding?
Tell us what you're looking for, and we’ll point you in the right direction. .
Rainbow Astro is part of Rainbow Robotics, a professional mechatronics company providing robotic system engineering technology. The development of their telescope mounts is based on humanoid robotic technology.

The Rainbow Astro RST-300 uses a drive system new to small telescope mounts to drive both axes. Strain wave gears are commonly used for industrial robots. Strain wave, or harmonic, drives are based on the elastic mechanics of metals. They provide high reduction and high torque in a compact, lightweight package. In addition, the drives have essentially zero backlash with a long, sinusoidal error that makes them perfect for guiding.

Rainbow Astro is part of Rainbow Robotics, a professional mechatronics company providing robotic system engineering technology. The development of their telescope mounts is based on humanoid robotic technology.

The Rainbow Astro RST-300 uses a drive system new to small telescope mounts to drive both axes. Strain wave gears are commonly used for industrial robots. Strain wave, or harmonic, drives are based on the elastic mechanics of metals. They provide high reduction and high torque in a compact, lightweight package. In addition, the drives have essentially zero backlash with a long, sinusoidal error that makes them perfect for guiding.
Rainbow Astro RST-135
Harmonic Drive
A strain wave drive consists of a motor, a circular spline, a wave generator and a flexible or "flex" spline. In the animation on the left, the circular spline is blue, the wave generator is green and the flex spline is red. The circular spline is fixed, the flex spline is attached to the output shaft, and the wave generator is attached to the motor. Ball bearings are located between the wave generator and the flex spline.
Due to the high torque of the strain wave gear and motor, counterweights are not needed for loads under 66 lbs. (30kg). Strain wave gears are commonly used for industrial robots. The mount weighs only 18.7 lbs. (8.5kg) and measures only about 18.3 x 17.5 x 27.9 cm. Rainbow Astro calls this breakthrough mount a "Weightless Mount." With the RST-300, volume and weight of the mount is no longer a problem for traveling astrophotography and visual astronomy.
The mount can be operated in either equatorial or Alt/Azimuth modes making it ideal for both imaging and visual use.

WiFi (hotspot) and GPS (location and time) are built into the mount and home sensors are used to place the mount in the specified home position.

SPECIFICATIONS

Mount Type Equatorial / Alt-Az Dual Mount
Drive System
Strain Wave Gear
Payload 30kg (66 lbs) - without counterweight
50kg (110 lbs) – with counterweight
Slew Speed
1,200x (5deg/sec) – 16V DC
1,000x (4deg/sec) – 12V DC
Latitude Range 0º to 90
Power Input 12 to 16 VDC
Power Consumption 0.4A - Tracking at 12V
4.0A - Slewing at 12V
Weight 8.5kg (18.7lbs)
Size 18.3 x 17.5 x 27.9 cm (7.2 x 6.9 x 11.0 in.)
Materials AL 6061, Steel, Brass
ASCOM Compatible
Yes
Hand Controller Multi-line text display
WiFi Hotspot
GPS Receiver
Yes
Home Sensor
Yes
Brake Built-in RA axis : To prevent back-driving
High voltage, reverse polarity
input protection
Built-in

Included with RST-300 mount
Hand controller (Hubo-i SE)
Cable for hand controller
USB cable
Power cable (Cigarette Lighter Plug)
Power cable (5.5×2.1 DC Jack)
AC-DC power adapter
Adapter for PoleMaster
Soft case
5mm Hex Wrench
