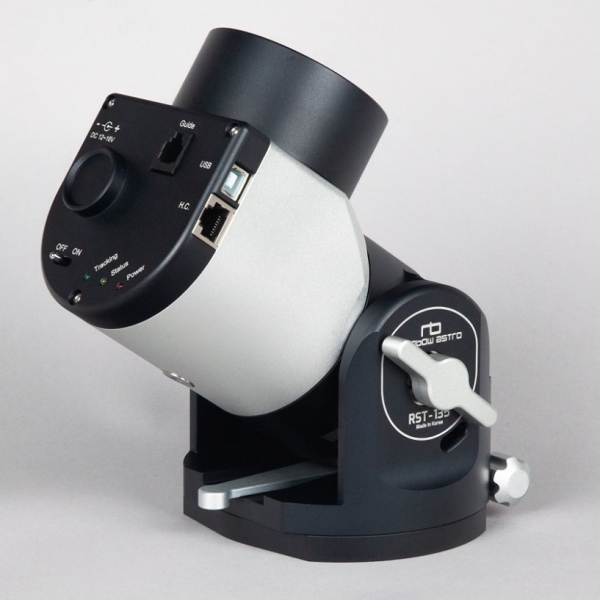

Rainbow Astro RST-135 Weightless Mount

Starting Price: $3,895.00
Price as Configured: $3,895.00
Brand: RainbowAstro / SKU: RA-MNT000700
Dovetail Saddles (Optional)
Tripod (Optional)
Recommended Add-ons and Accessories
Product Price Quantity
RA-ACCHP0300 - Rainbow Astro Half Pier for the Gitzo Systemetic 5 Series, RT90C, and Leofoto LN404C tripods
RA-ACCHP0300 - Rainbow Astro Half Pier for the Gitzo Systemetic 5 Series, RT90C, and Leofoto LN404C tripods
About This Product
Half pier compatible with Gitzo Systemetic 5 Series, RT90C, and Leofoto LN404C tripods.

Mounts and half pier are tightened with two M8 knob bolts, making them more secure than one 3/8 inch bolt.

The half pier adapter rotates 360 degrees for easy polar alignment.

Weight: 1.3kg (2.9 lbs)
$210.00 each

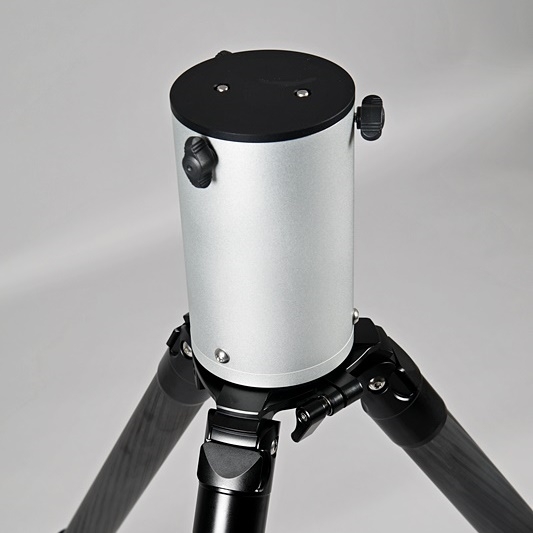

RA-ACCHP0200 - Rainbow Astro Half Pier for the Gitzo 3, Gitzo 4, and L404C Tripods
RA-ACCHP0200 - Rainbow Astro Half Pier for the Gitzo 3, Gitzo 4, and L404C Tripods
About This Product
Half pier compatible with GiGitzo 3, Gitzo 4, and L404C Tripods.

Mounts and half pier are tightened with two M8 knob bolts, making them more secure than one 3/8 inch bolt.

The half pier adapter rotates 360 degrees for easy polar alignment.

Weight: 1.3kg (2.9 lbs.)
$210.00 each
RA-ACCHP0500 - Rainbow Astro Half Pier for the PTP-C22 and L402C Tripods
RA-ACCHP0500 - Rainbow Astro Half Pier for the PTP-C22 and L402C Tripods
About This Product
Half pier compatible with PTP-C22 and L402C Tripods.

Mounts and half pier are tightened with two M8 knob bolts, making them more secure than one 3/8 inch bolt.

The half pier adapter rotates 360 degrees for easy polar alignment.

Weight 1.3kg (2.9 lbs.)
$210.00 each

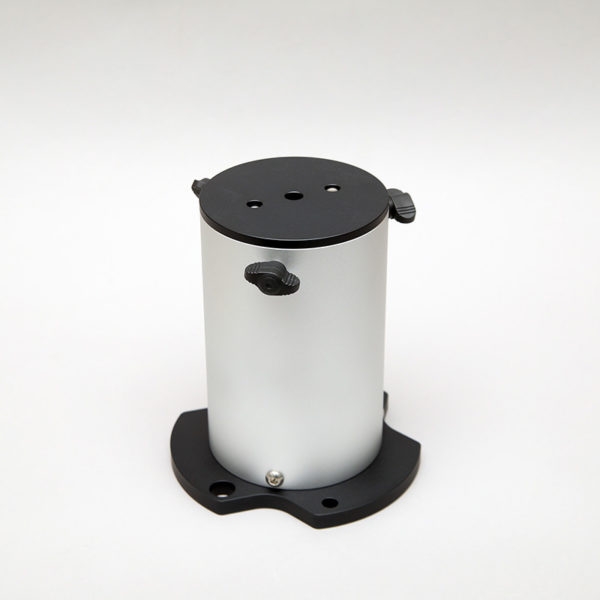

RA-ACCHP0900 - Rainbow Astro Half Pier for the Avalon T-90 Tripod
RA-ACCHP0900 - Rainbow Astro Half Pier for the Avalon T-90 Tripod
About This Product
Half pier compatible with Avalon T-POD 110, 130 tripods.

Weight: 1.6kg (3.5 lbs.)
$240.00 each

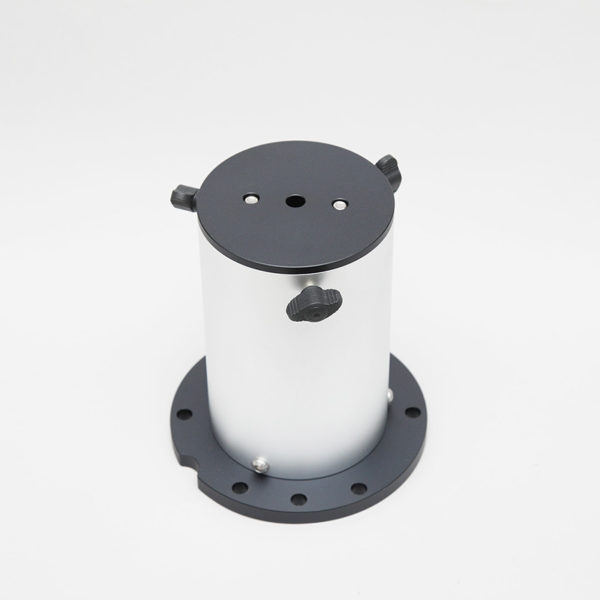

RA-ACCHP0700 - Rainbow Astro Half Pier for the Avalon T-110 and T-130 Tripods
RA-ACCHP0700 - Rainbow Astro Half Pier for the Avalon T-110 and T-130 Tripods
About This Product
Half pier compatible with Avalon T-POD 110 and 130 tripods.

Weight 1.6kg (3.5 lbs.)
$240.00 each

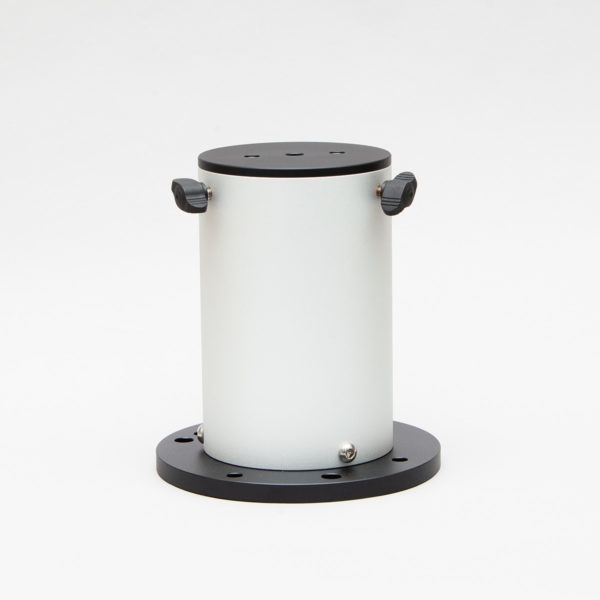

RA-ACCHP0600 - Rainbow Astro Half Pier for the iOptron Tripod
RA-ACCHP0600 - Rainbow Astro Half Pier for the iOptron Tripod
About This Product
Half pier compatible with iOptron tripod.

Weight : 1.6kg (3.5 lbs.)
$240.00 each

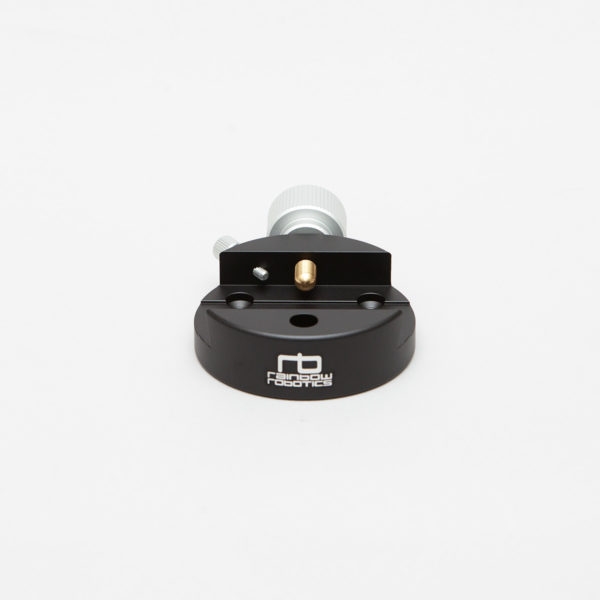

RA-GSO010700 - Rainbow Astro Vixen Type Saddle
RA-GSO010700 - Rainbow Astro Vixen Type Saddle
About This Product
Vixen type saddle for the RST-135 mount.
$45.00 each

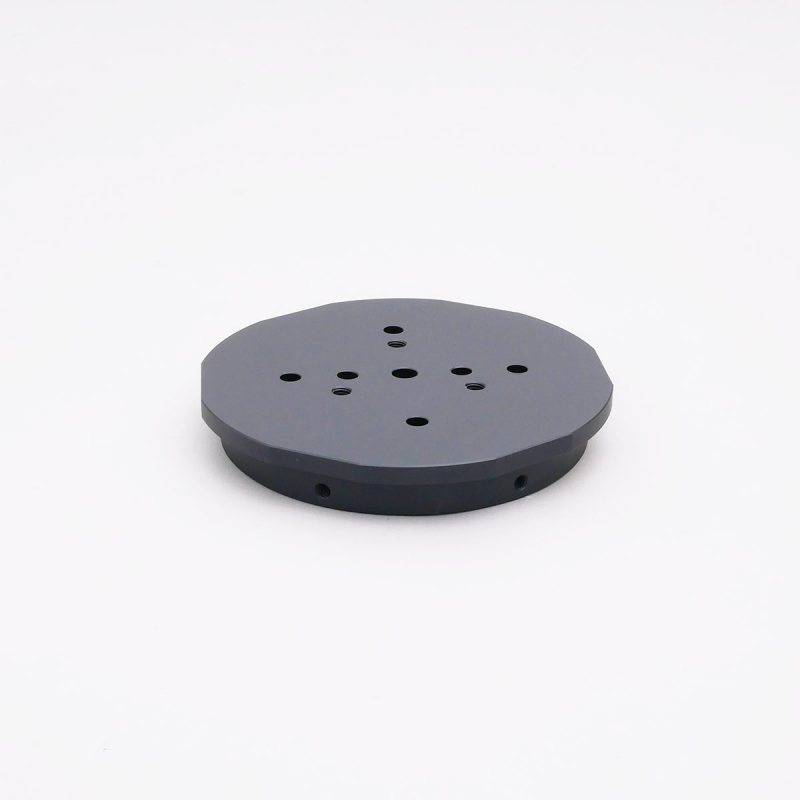

RA-ACCHP0920 - Rainbow Astro AP Mach1 Compatible Base Adapter
RA-ACCHP0920 - Rainbow Astro AP Mach1 Compatible Base Adapter
About This Product
This adapter makes the bottom of the RST-300 and RST-135 mounts the same as the bottom of the AP Mach1 mount.
$190.00 each
View More Add-ons and Accessories

Recommended Add-ons and Accessories

Enter the quantity desired for each item and click the close button to continue with your purchase.
RA-ACCHP0300 - Rainbow Astro Half Pier for the Gitzo Systemetic 5 Series, RT90C, and Leofoto LN404C tripods
RA-ACCHP0300 - Rainbow Astro Half Pier for the Gitzo Systemetic 5 Series, RT90C, and Leofoto LN404C tripods
$210.00
« Back to All Add-ons
RA-ACCHP0300 - Rainbow Astro Half Pier for the Gitzo Systemetic 5 Series, RT90C, and Leofoto LN404C tripods
About This Product
Half pier compatible with Gitzo Systemetic 5 Series, RT90C, and Leofoto LN404C tripods.

Mounts and half pier are tightened with two M8 knob bolts, making them more secure than one 3/8 inch bolt.

The half pier adapter rotates 360 degrees for easy polar alignment.

Weight: 1.3kg (2.9 lbs)
RA-ACCHP0200 - Rainbow Astro Half Pier for the Gitzo 3, Gitzo 4, and L404C Tripods
RA-ACCHP0200 - Rainbow Astro Half Pier for the Gitzo 3, Gitzo 4, and L404C Tripods
$210.00
« Back to All Add-ons
RA-ACCHP0200 - Rainbow Astro Half Pier for the Gitzo 3, Gitzo 4, and L404C Tripods
About This Product
Half pier compatible with GiGitzo 3, Gitzo 4, and L404C Tripods.

Mounts and half pier are tightened with two M8 knob bolts, making them more secure than one 3/8 inch bolt.

The half pier adapter rotates 360 degrees for easy polar alignment.

Weight: 1.3kg (2.9 lbs.)
RA-ACCHP0500 - Rainbow Astro Half Pier for the PTP-C22 and L402C Tripods
RA-ACCHP0500 - Rainbow Astro Half Pier for the PTP-C22 and L402C Tripods
$210.00
« Back to All Add-ons
RA-ACCHP0500 - Rainbow Astro Half Pier for the PTP-C22 and L402C Tripods
About This Product
Half pier compatible with PTP-C22 and L402C Tripods.

Mounts and half pier are tightened with two M8 knob bolts, making them more secure than one 3/8 inch bolt.

The half pier adapter rotates 360 degrees for easy polar alignment.

Weight 1.3kg (2.9 lbs.)
RA-ACCHP0900 - Rainbow Astro Half Pier for the Avalon T-90 Tripod
RA-ACCHP0900 - Rainbow Astro Half Pier for the Avalon T-90 Tripod
$240.00
« Back to All Add-ons
RA-ACCHP0900 - Rainbow Astro Half Pier for the Avalon T-90 Tripod
About This Product
Half pier compatible with Avalon T-POD 110, 130 tripods.

Weight: 1.6kg (3.5 lbs.)
RA-ACCHP0700 - Rainbow Astro Half Pier for the Avalon T-110 and T-130 Tripods
RA-ACCHP0700 - Rainbow Astro Half Pier for the Avalon T-110 and T-130 Tripods
$240.00
« Back to All Add-ons
RA-ACCHP0700 - Rainbow Astro Half Pier for the Avalon T-110 and T-130 Tripods
About This Product
Half pier compatible with Avalon T-POD 110 and 130 tripods.

Weight 1.6kg (3.5 lbs.)
RA-ACCHP0600 - Rainbow Astro Half Pier for the iOptron Tripod
RA-ACCHP0600 - Rainbow Astro Half Pier for the iOptron Tripod
$240.00
« Back to All Add-ons
RA-ACCHP0600 - Rainbow Astro Half Pier for the iOptron Tripod
About This Product
Half pier compatible with iOptron tripod.

Weight : 1.6kg (3.5 lbs.)
RA-GSO010700 - Rainbow Astro Vixen Type Saddle
RA-GSO010700 - Rainbow Astro Vixen Type Saddle
$45.00
« Back to All Add-ons
RA-GSO010700 - Rainbow Astro Vixen Type Saddle
About This Product
Vixen type saddle for the RST-135 mount.
RA-ACCHP0920 - Rainbow Astro AP Mach1 Compatible Base Adapter
RA-ACCHP0920 - Rainbow Astro AP Mach1 Compatible Base Adapter
$190.00
« Back to All Add-ons
RA-ACCHP0920 - Rainbow Astro AP Mach1 Compatible Base Adapter
About This Product
This adapter makes the bottom of the RST-300 and RST-135 mounts the same as the bottom of the AP Mach1 mount.
RA-ACCWT0700 - Rainbow Astro Counterweight Shaft + 3kg Counterweight
RA-ACCWT0700 - Rainbow Astro Counterweight Shaft + 3kg Counterweight
$160.00
« Back to All Add-ons
RA-ACCWT0700 - Rainbow Astro Counterweight Shaft + 3kg Counterweight
About This Product
3kg weight for RST-135 and RST-150H. This prevents the tripod from falling and increases the load capacity of the mount. The hole diameter of the weight is 18mm. Made of stainless steel.

Counterweight shaft for using weights on RST-135 and RST-150H mounts. 8mm in diameter. Made of stainless steel.
QTY:
Price as Configured: $3,895.00
Product Help
Need help deciding?
Tell us what you're looking for, and we’ll point you in the right direction. .
Rainbow Astro is part of Rainbow Robotics, a professional mechatronics company providing robotic system engineering technology. The development of their telescope mounts is based on humanoid robotic technology.

The Rainbow Astro RST-135 uses a drive system new to small telescope mounts to drive both axes. Strain wave gears are commonly used for industrial robots. Strain wave, or harmonic, drives are based on the elastic mechanics of metals. They provide high reduction and high torque in a compact, lightweight package. In addition, the drives have essentially zero backlash with a long, sinusoidal error that makes them perfect for guiding.

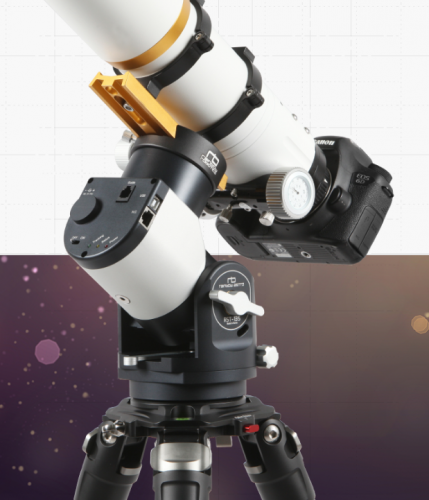

Rainbow Astro RST-135
Harmonic Drive
A strain wave drive consists of a motor, a circular spline, a wave generator and a flexible or "flex" spline. In the animation on the left, the circular spline is blue, the wave generator is green and the flex spline is red. The circular spline is fixed, the flex spline is attached to the output shaft, and the wave generator is attached to the motor. Ball bearings are located between the wave generator and the flex spline.
Due to the high torque of the strain wave gear and motor, counterweights are not needed for loads under 30 lbs. (13.5kg). Strain wave gears are commonly used for industrial robots. The mount weighs only 7.28 lbs. (3.3kg) and measures only about 5.1 x 4.7 x 7.5 inches. Rainbow Astro calls this breakthrough mount a "Weightless Mount." With the RST-135, volume and weight of the mount is no longer a problem for traveling astrophotography and visual astronomy.

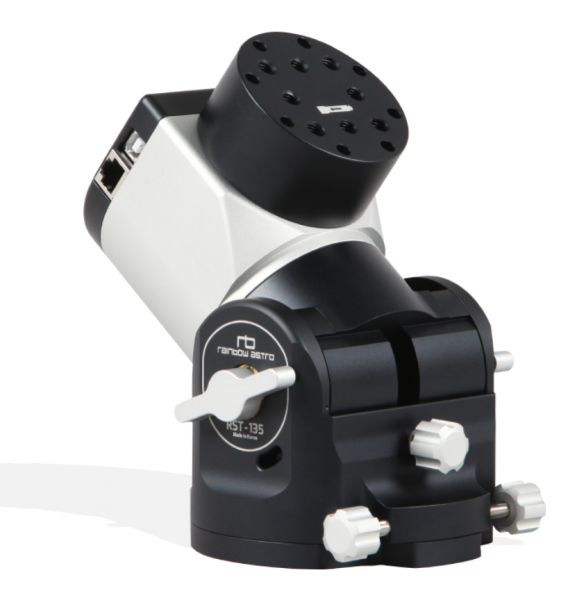

Rainbow RST-135
Rainbow RST-135 in Case
Depending on the tripod, the mount may be easily carried attached to the tripod and placed in a case while attached to the tripod.
The mount can be operated in either equatorial or Alt/Azimuth modes making it ideal for both imaging and visual use.
RST-135 Alt/Azimuth Mode
RST-135 Equatorial Mode
The mount body and parts are machined from solid aluminum block making for a premium fit and feel.
Rainbow RST-135 in Case


WiFi (hotspot) and GPS (location and time) are built into the mount and home sensors are used to place the mount in the specified home position.

SPECIFICATIONS

Mount Type Equatorial / Alt-Az Dual Mount
Drive System
Strain Wave Gear
Payload 13.5kg (30lbs) - without counterweight

18kg (40lbs) – with counterweight
Slew Speed
6º / Second
Latitude Range 0º to 90
Power Input 12 to 16 VDC
Power Consumption 0.2A - Tracking at 16V

3A - Slewing at 16V
Weight 3.3kg (7.3lbs)
Size 130 x 120 x 190mm (5.1 x 4.7 x 7.5 in.)
Materials AL 6061, Steel, Brass
ASCOM Compatible
Yes
Hand Controller Multi-line text display
WiFi Hotspot
GPS Receiver
Yes
Home Sensor
Yes


Besides the stock Vixen bolt-lock saddle, V-series and D-series compression saddles are available from companies like ADM accessories.

Complete Travel Kits

At Deep Space Products, we specialize in putting together complete astronomy systems. We can put together a complete custom traveling astronomy/astrophotography kit. We can use Takahashi and Stellarvue telescopes, QHY cameras, Mission Control computers, Starlight and Optec focusers, etc. purchased from us or pieces that you supply. Below is an example of a cable-less setup that includes an 80mm refractor side-by-side with a 50mm refractor, one scope guiding while the other is imaging. Also shown is a complete PC for operating the mount, cameras, and an automated focuser that can all be connected to a remote laptop via a small travel router. The entire system is powered by a Lithium Polymer (LiFEPO4) battery mounted on top of the 80mm scope, eliminating the need to run a power cable up to the mount or other equipment. The imaging system can be removed from the mount by disconnecting two cables and then transported complete, or it can be completely disassembled without tools for transport.
