QHY5III174M USB 3.0 Monochrome CMOS Planetary/Guiding Camera

Starting Price: $599.00
Price as Configured: $599.00
Brand: QHYCCD / SKU: QHY-5III174M (100063)

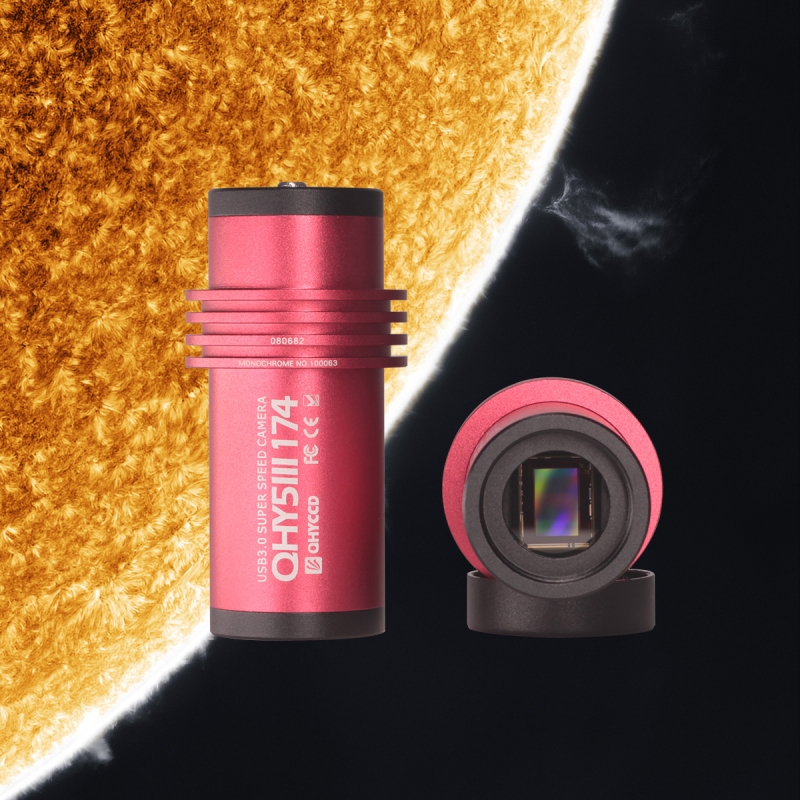

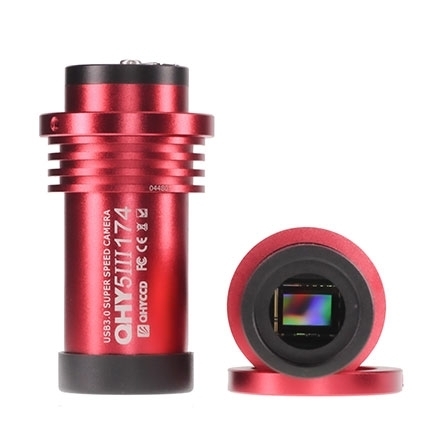

QHY5III174M/C uses a 1/1.2-inch, 2.3 Megapixel, Sony Exmore IMX174 CMOS sensor with global shutter. Available in both monochrome and color. The large sensor size is a great choice for solar imaging and the large pixel size and high QE makes it excellent for deep-sky imaging as well. Typical of all models in the QHY5III Series, this camera produces a high frame rate with the USB 3.0 interface, 138 frames per second at full resolution, up to 490 FPS at selected ROI.

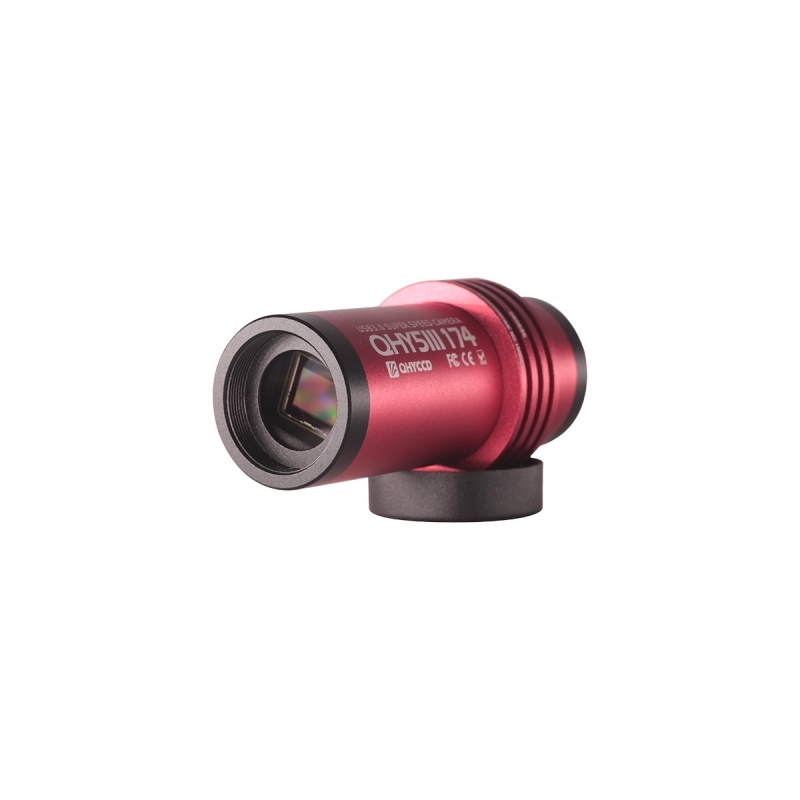

This is the monochrome version.
Recommended Add-ons and Accessories
Product Price Quantity
QHY-MiniGuidescope (100062) - QHY Mini GuideScope
QHY-MiniGuidescope (100062) - QHY Mini GuideScope
About This Product
When the pixels of a guide camera becomes small and QE becomes high, you may not need a big guide scope. Smaller pixels can detect the guide error in a shorter focal length. When the focal length is reduced, the FOV becomes larger, so it is easier to find bright guide stars.

QHYCCD’s Mini GuideScope is based on just this idea. The Mini GuideScope is a 30mm f/4.3 (130mm FL) ultra-small telescope. It has no complex focal adjust system. Just rotate the front of the OTA and it provides fine focal adjustment. Once focus is achieved, the tube can be locked into position and there is not need to focus again unless the system is moved.

The Mini GuideScope provides pin-point star images as sharp as any lens in the industry.
$129.00 each
QHY-020133 - QHY Color Filter Wheel 1.25-inch Adapter
QHY-020133 - QHY Color Filter Wheel 1.25-inch Adapter
About This Product
This adapter is designed for connecting QHY planetary cameras (mono) and QHY-CFW3S (SR or US version), so that you can use a mono planetary cam with 1.25 inch or 31mm filters.
$30.00 each
QTY:
Price as Configured: $599.00

Product Help
Need help deciding?
Tell us what you're looking for, and we’ll point you in the right direction. .
Model QHY5III174
CMOS Sensor Sony IMX174
Color/Mono Both
FSI/BSI FSI
Pixel Size 5.86um
Pixel Array 1920*1200
Effective Pixels 2.3MP
Sensor Size 1/1.2inch
Frame Rate @Full Frame 138FPS
Frame rate @ROI readout 262FPS@ 960*600490FPS@ 480*300
Ful Well Capacity 32ke-
A/D 12bit
Computer Interface USB3.0
Non-volatile memory / On camera storage Build-in total 512Kbytes Flash Memory. 100Kbytes user-accessible space
Guide Port St4
Telescope Interface 1.25-inch, CS mount
Weight 89g/85g
