QHY QFocuser
Starting Price: $199.00
Price as Configured: $199.00
Price as Configured: $199.00
Brand: QHYCCD / SKU: QHY-Q-Focuser

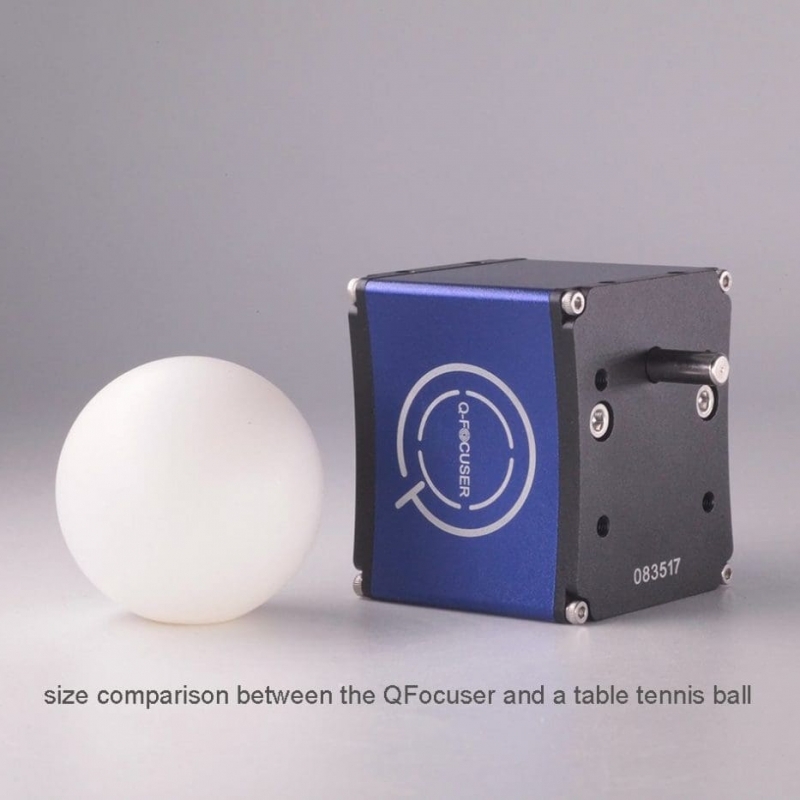

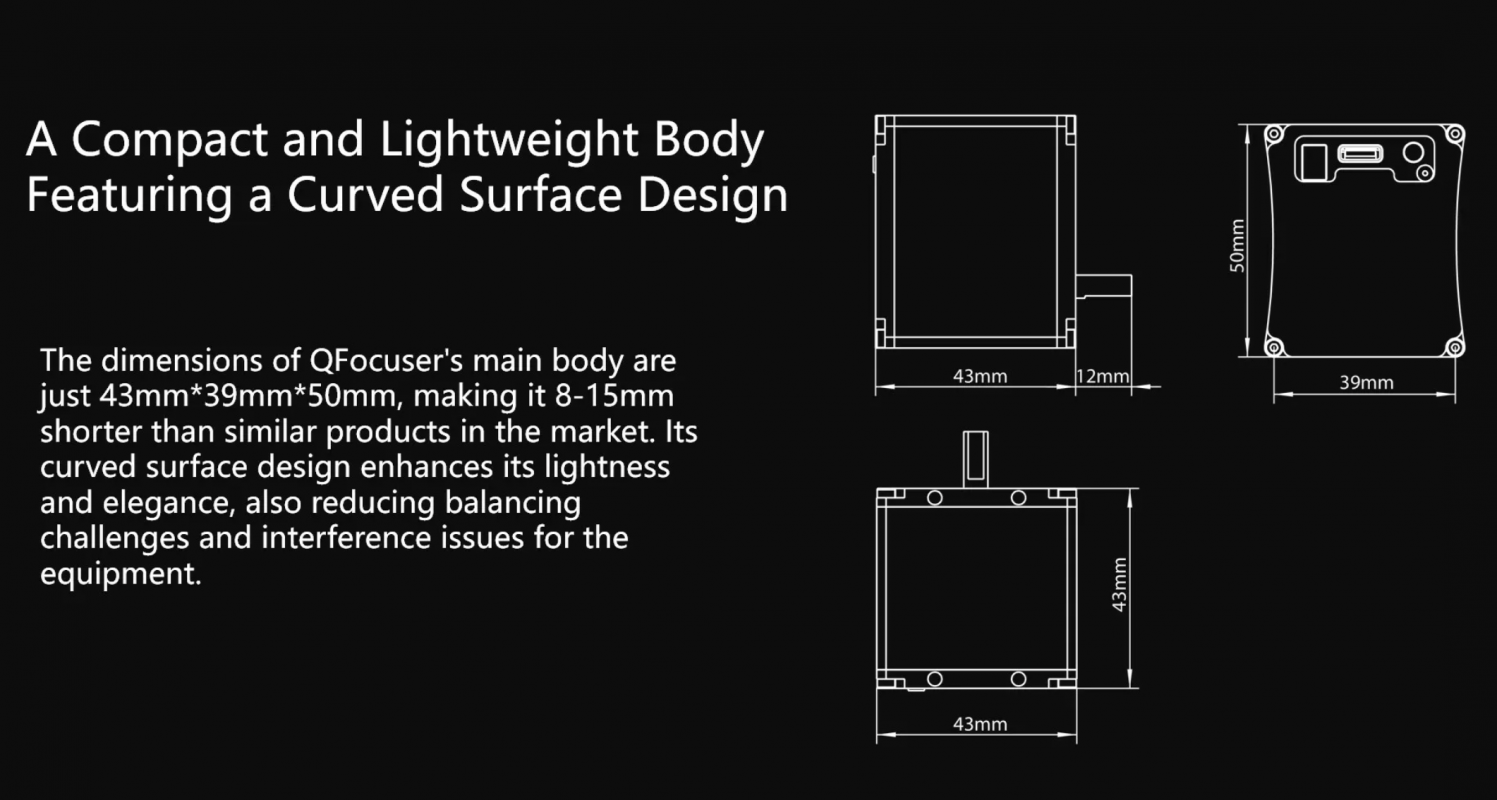

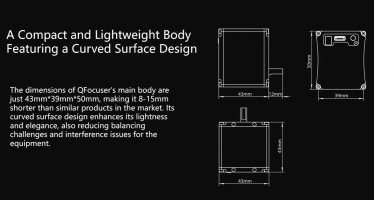

The new QFocuser from QHY is a small but sleek and curvy electronic focuser designed to allow for precise and remote focusing. This electronic focuser will add very little bulk to your system. QHY offers two versions: Standard Version and High Precision Version. As of May 1, 2024, QHY will add an extra 5mm-2.5mm coupler as standard accessory. This is to make the focuser compatible for some small telescopes with a smaller-diameter focuser axis.
Need help deciding?
Tell us what you're looking for, and we’ll point you in the right direction. Email Us.
Tell us what you're looking for, and we’ll point you in the right direction. Email Us.

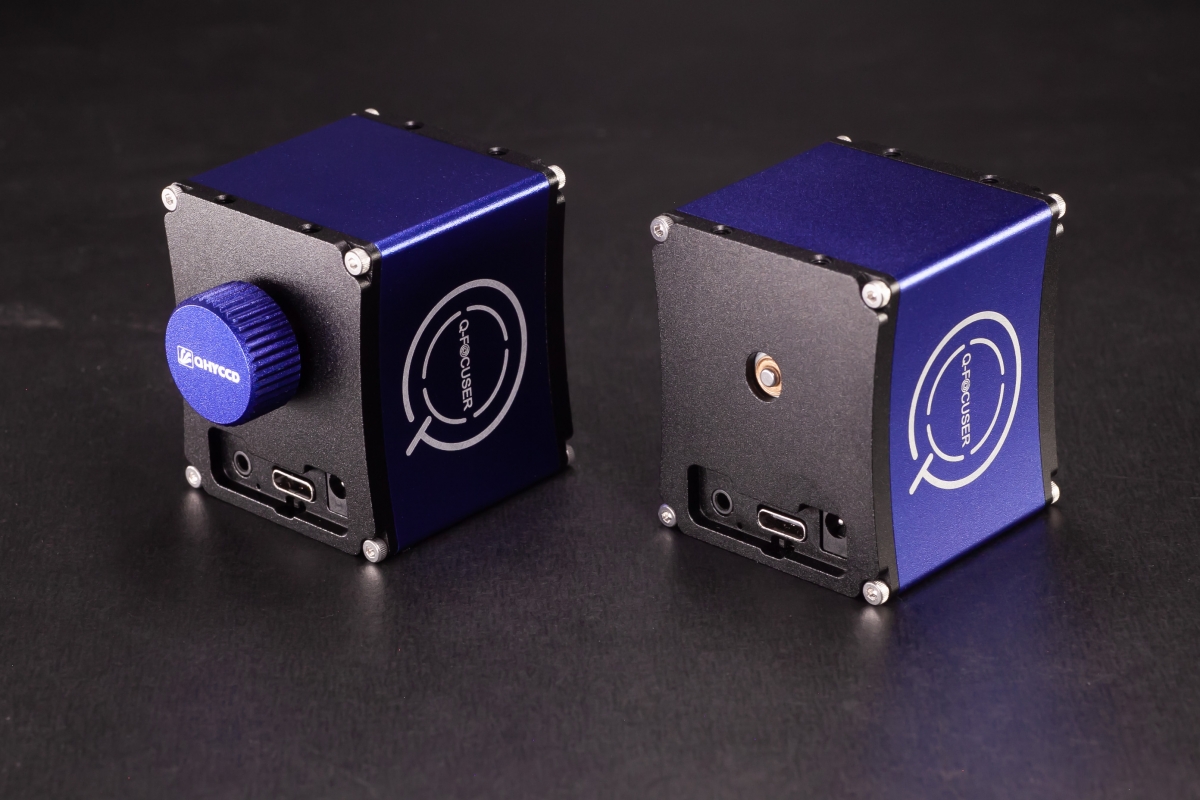

Version Introduction

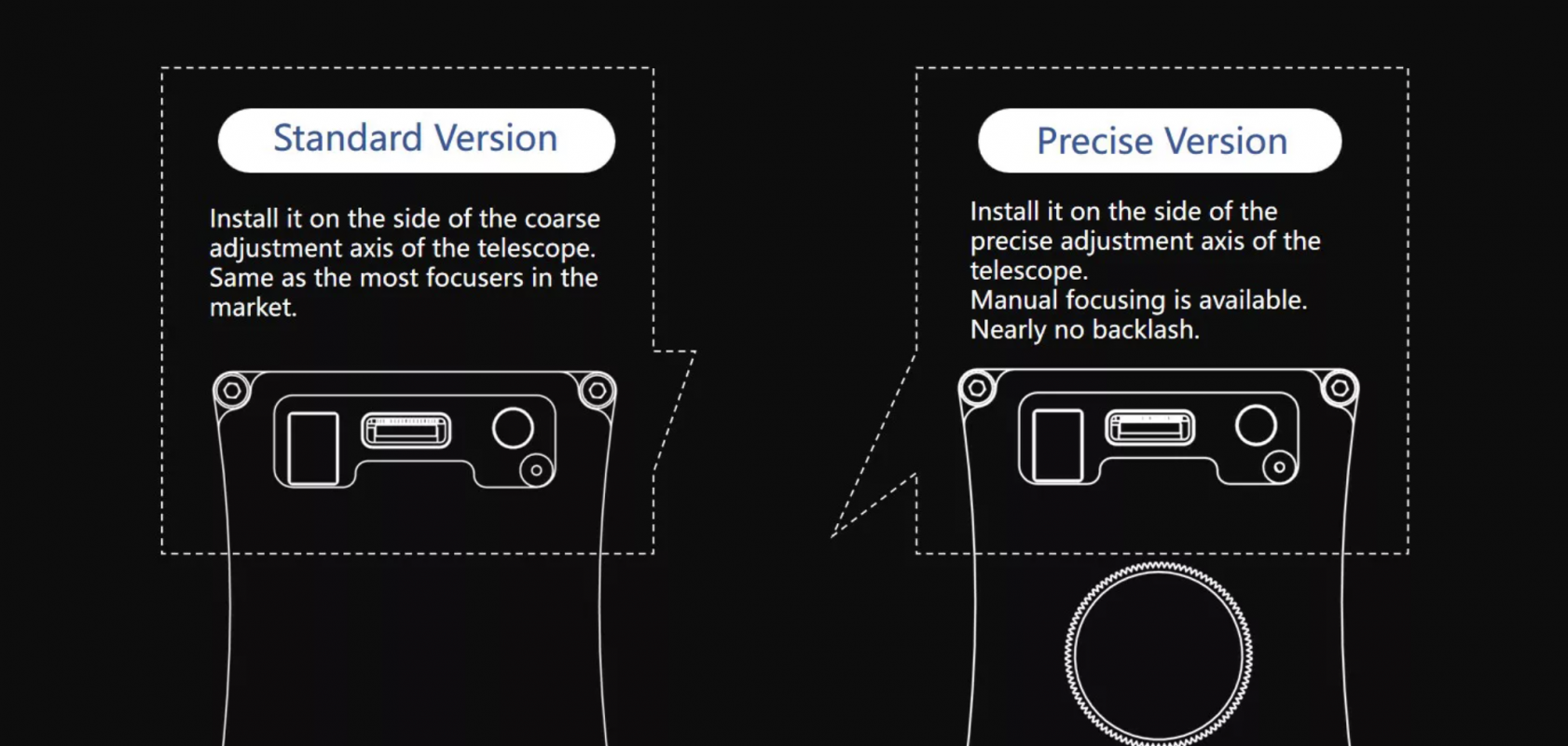

The Standard version is designed to be installed on the side of the standard adjustment axis of the telescope focusing mechanism. This is the same with most focusers available in the market. The High Precision version is installed on the other side — the precise adjustment axis of the telescope focusing mechanism.
Most electric focusers use a motor and reducing gears and once installed on the telescope manual focusing is not possible. However, the High Precision QFocuser is equipped with a non-reducing motor, allowing it to be manually adjusted even after installation on the telescope, without the need for a power connection or a clutch switch.
Another advantage of the QFocuser High Precision Version is that it allows the entire system to achieve almost zero backlash. Backlash calculations involve the entire focusing system, including the focus motor mount, not just the electronic focuser itself. Backlash will exist if there are mechanical gears in the focusing system. Since the High precision QFocuser uses a non-reducing motor (i.e., no mechanical reduction gears) the added backlash from the motor is almost zero. Then, if a good focusing mount is used, the entire focusing system will operate with almost zero backlash.
Multiple Installation Options
QFocuser features several holes on its bottom and side, providing a variety of fixing methods. Unlike mounting plates with fixed holes, QFocuser adopts a flexible structure where the fixed holes position and mounting plate height can be freely adjusted to achieve the best compatibility with your telescope.
Software and Interface
QFocuser can be powered in two ways: TypeC-5V and 12V DC. The USB 5V power is enough in most cases. Both the standard version and precision version support an external temperature sensor (included) for users who require temperature monitoring.
Additionally, a manual controller will be available as an optional accessory in the near future. This item allows direct operation of the electronic focuser without the need to connect it to a computer or touch the focuser.

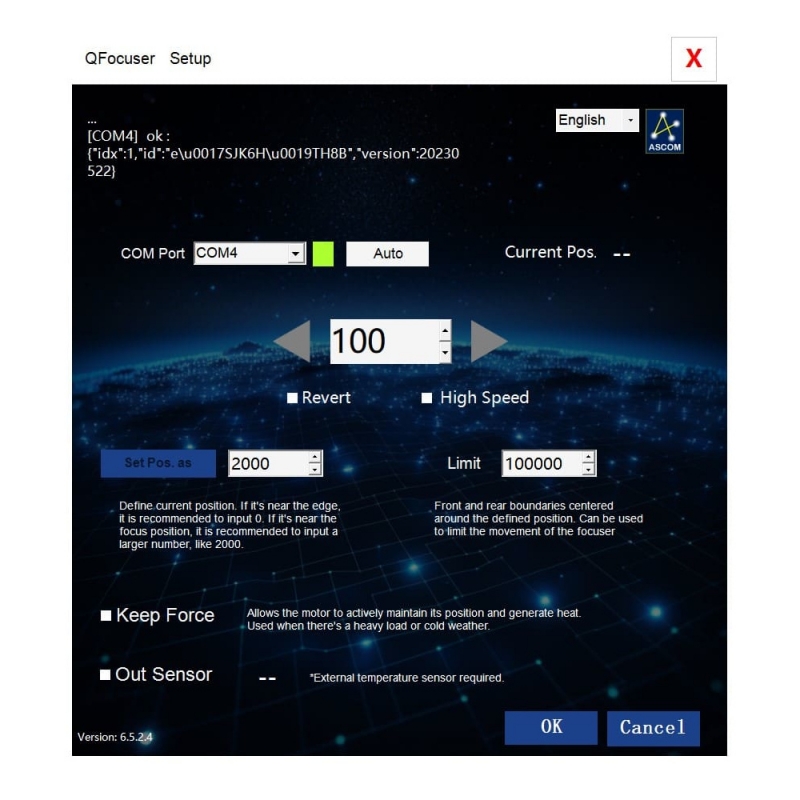

Currently, QFocuser supports both Windows (with ASCOM drivers) and Linux systems. In the ASCOM driver, QHY has integrated basic functions such as move, custom current position, limit switches, torque maintenance, and temperature display, etc. It can also be controlled through other third-party software.
