QHY Off-Axis Guider - Medium

Starting Price: $230.00
Price as Configured: $230.00
Brand: QHYCCD / SKU: QHY-OAG-M (100074)

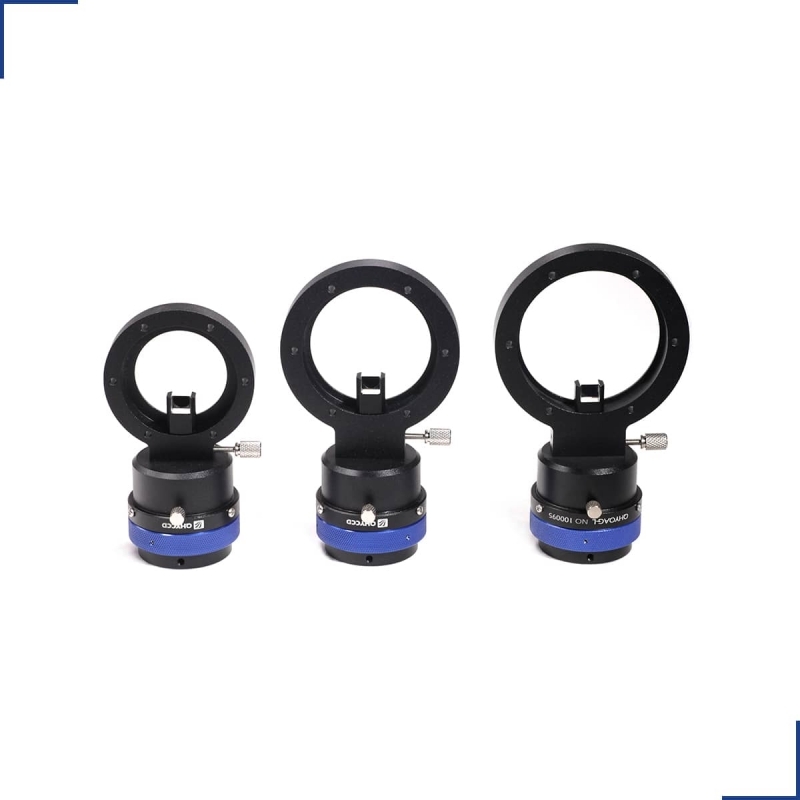

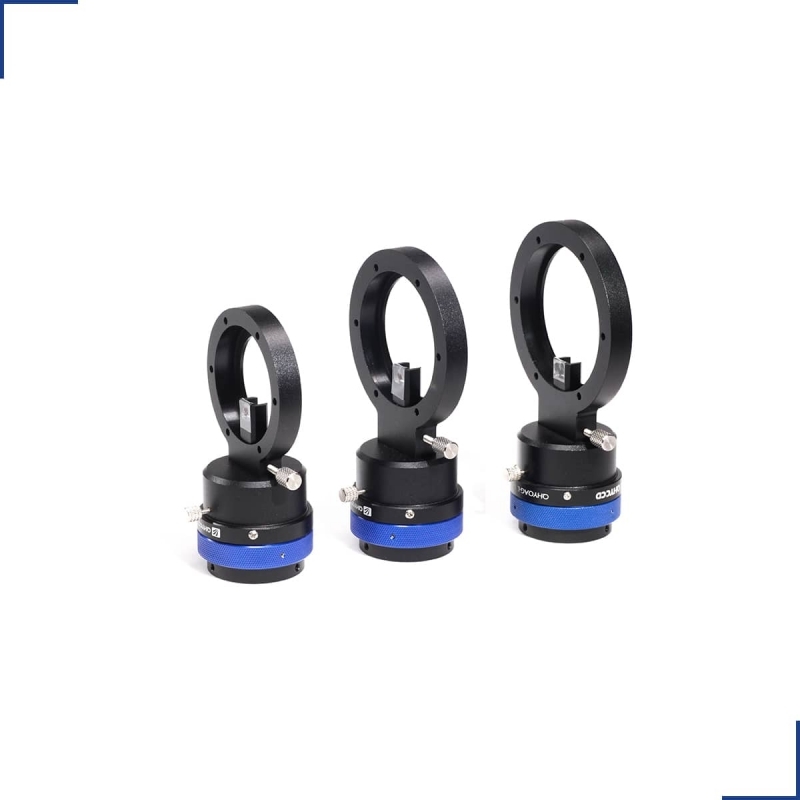

The QHY Off-Axis Guider (OAG) has three models (QHYOAG-S,QHYOAG-M,QHYOAG-L).

This product is the Medium version.

Model QHYOAG-S QHYOAG-M QHYQAG-L
Telescope Interface M42/0.75 M54/0.75 M62/0.75
Diameter of 6 x M3 screw hole positions 54mm 62mm 68mm
Suitable for CCD/CMOS Size 1inch or smaller 4/3 inch

APS-C,

APS-H,

36 x 24mm

View Add-ons and Accessories

Recommended Add-ons and Accessories

Enter the quantity desired for each item and click the close button to continue with your purchase.
QHY-M54-all-in-one (020112) - QHY M54 All-In-One-Kit
QHY-M54-all-in-one (020112) - QHY M54 All-In-One-Kit
$135.00
« Back to All Add-ons
QHY-M54-all-in-one (020112) - QHY M54 All-In-One-Kit
About This Product
  • Compatible with all cooled CMOS cameras, QHY CFW3-S-SR, CFW3-S-US, CFW3-L, and OAG-M.
  • Kit includes:
    • 1x 5mm M54 to M48 Adapter
    • 1x 3mm M54 to M42 Adapter
    • 1x QHY 2,5mm 2" Filter Fixer #1932780
    • 1x 4mm M54 Screwed Adapter (original name QHY #020070)
    • 1x Cam Top Adapter (QHY #020063)
    • 1x 0.5mm/1mm/2mm/3mm/7mm/10mm/14mm Spacer
    • 8x 8mm M3 screws
    • 8x 10mm M3 screws
    • 8x 12mm M3 screws
    • 8x 14mm M3 screws
    • 8x 16mm M3 screws
    • 8x 21mm M3 screws
    • 8x 24mm M3 screws
    • 8x 28mm M3 screws
    • 8x 36mm M3 screws
    • 8x 50mm M3 screws
QTY:
Price as Configured: $230.00

Product Help
Need help deciding?
Tell us what you're looking for, and we’ll point you in the right direction. .

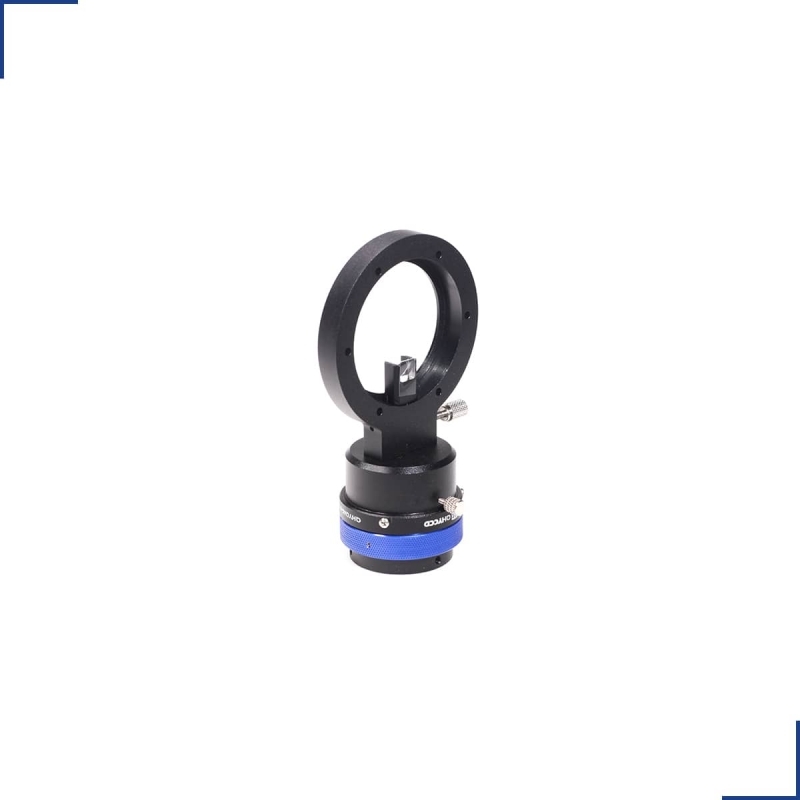

The main purpose of the OAG is to use the same optical path as the main camera. This avoids the problem of differential deflection that can occur when using a separate optical system for guiding. This method provides more accurate guiding and sharper images. QHYOAG includes a precision 1.25-inch helical focuser that accepts the QHY5II and QHY5III cameras. After focusing, you can lock the focus mechanism with thumbscrews.

QHYOAG is a thin and solid design. The OAG main body is just 10mm thick. Adding an M42 thread or M54 adapter ring adds only 3mm for a total thickness of 13mm. There are six 3mm through holes in the OAG for direct connection to the QHYCFW and QHY A Series cameras.
