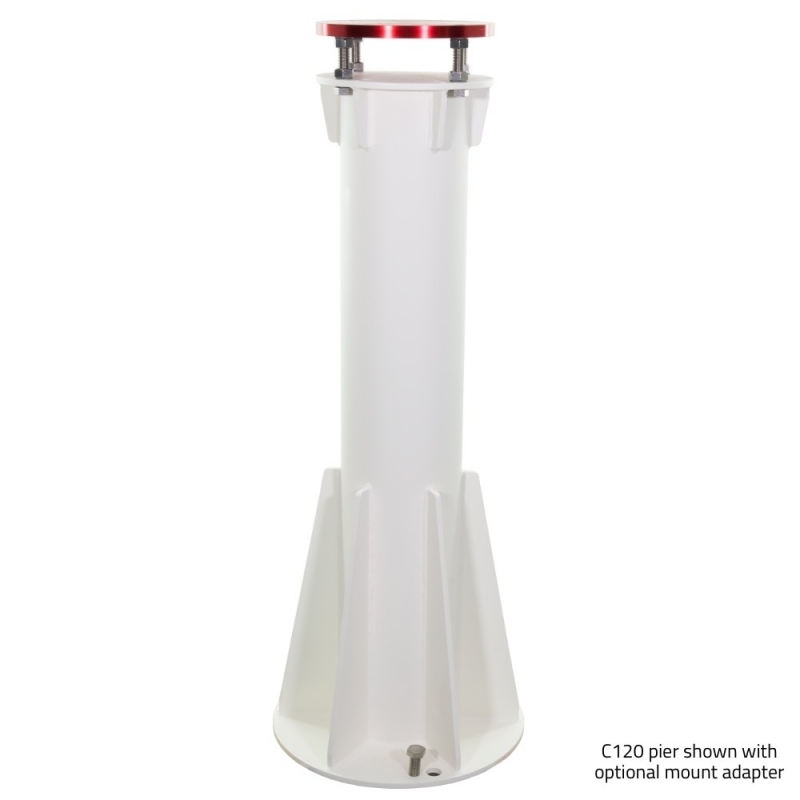

PrimaLuceLab C120 Pier for Concrete Base

Starting Price: $1,345.00
Price as Configured: $1,345.00
Brand: PrimaLuceLab / SKU: PLL-C120-C

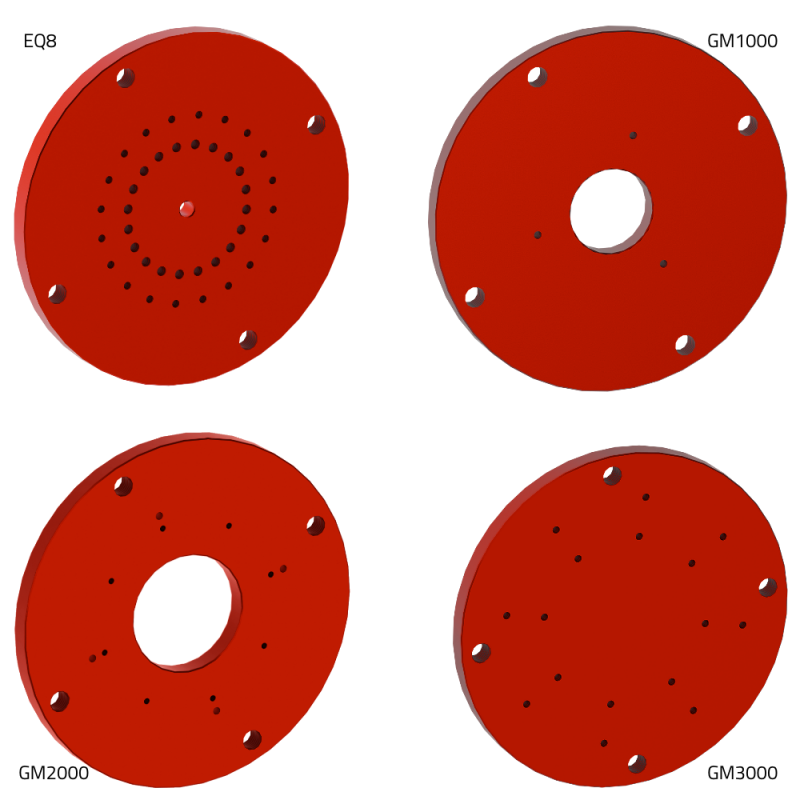

C120 pier is the perfect solution to install even a large telescope in an astronomical observatory. The C120 pier has a high load capacity (150 kg) and, compared to a standard tripod, it provides high stability and needs for less space. This pier is available also with different optional adapters for EQ8, GM1000, GM2000 or GM3000 mounts.

Please call for shipping information before ordering. Shipping is not included in the price and can range from about $500 to $800 depending on location. Piers are shipped from southern California.
Recommended Add-ons and Accessories
Product Price Quantity

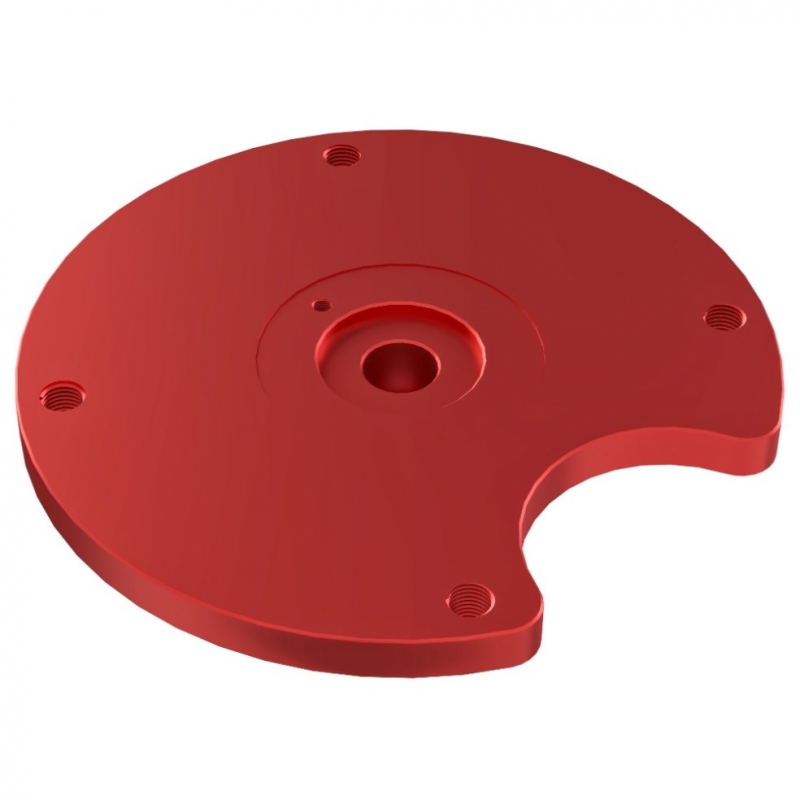

PLL-C120-EQ6 - PrimaLuceLab EQ6/EQ6-R/AZ-EQ6/CGEM Adapter for C120 Pier
PLL-C120-EQ6 - PrimaLuceLab EQ6/EQ6-R/AZ-EQ6/CGEM Adapter for C120 Pier
About This Product
This adapter allows you to install the EQ6 / EQ6-R / AZ-EQ6 / CGEM mounts on the C120 pier.
$395.00 each
PLL-C120-EQ8 - PrimaLuceLab EQ8 Adapter for C120 Pier
PLL-C120-EQ8 - PrimaLuceLab EQ8 Adapter for C120 Pier
$375.00 each
PLL-C120-GM1000 - PrimaLuceLab GM1000 Adapter for C120 Pier
PLL-C120-GM1000 - PrimaLuceLab GM1000 Adapter for C120 Pier
About This Product
This adapter allows you to install the GM2000 mount on the C120 pier.
$325.00 each
PLL-C120-GM2000 - PrimaLuceLab GM2000 Adapter for C120 Pier
PLL-C120-GM2000 - PrimaLuceLab GM2000 Adapter for C120 Pier
About This Product
This adapter allows you to install the GM2000 mount on the C120 pier.
$345.00 each

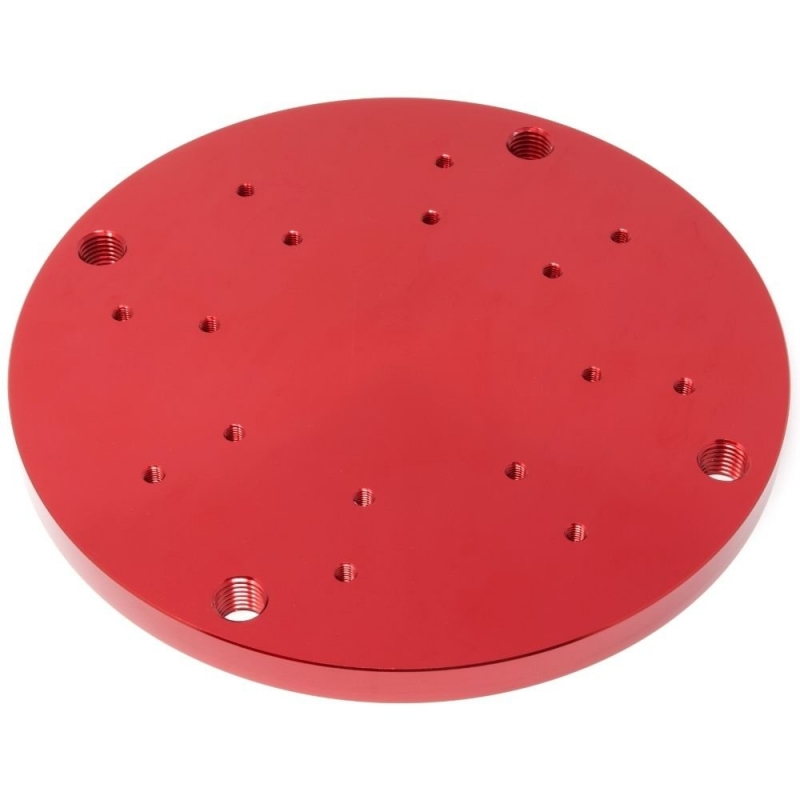

PLL-C120-GM3000 - PrimaLuceLab GM3000 Adapter for C120 Pier
PLL-C120-GM3000 - PrimaLuceLab GM3000 Adapter for C120 Pier
About This Product
This adapter allows you to install the GM3000 mount on the C120 pier.
$365.00 each
call for shipping fee
Shipping charges are calculated and charged separately.
Product Help
Need help deciding?
Tell us what you're looking for, and we’ll point you in the right direction. .

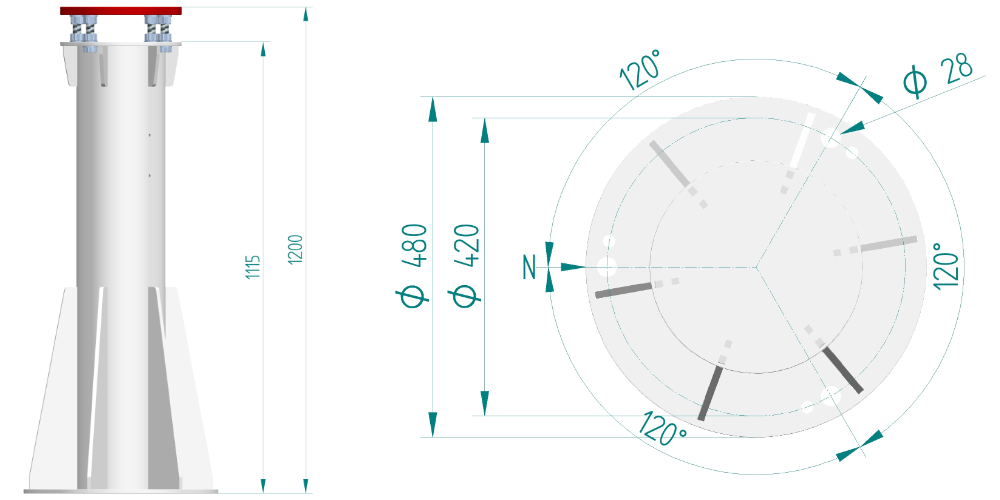

The C120 pier is 120cm high (height from the ground including the optional adapter) and is made up of steel with 4mm thickness and 220mm diameter tube in order to ensure high load capacity. The pier is powder coated. At the base of the pier there are 3 pairs of holes at 120°: each pair consists of a through hole that is used to fix the pier to the threaded bars (not included) that have to be in the concrete base and an M20 threaded hole where you screw in the M20 screws (supplied in the package) to allow leveling of the C120 pier. The C120 pier for concrete base weighs 60 kg without the optional adapter.

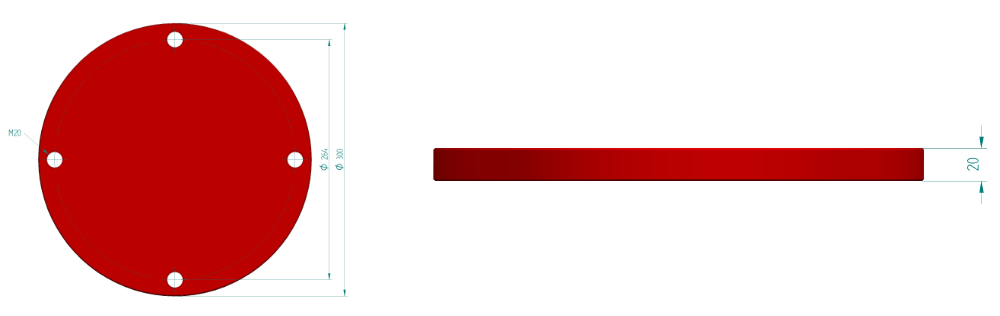

You can order the C120 pier also without the adapter: in this case the user will have to make an adapter for his mount, in the image below you will find the dimensions of the adapter with the connections for the C120 pier, then you will have to add the connection for your mount.
