PlaneWave Series-5 Focuser (Stackable with Series-5 Rotator)

Starting Price: $3,450.00
Price as Configured: $3,450.00
Brand: PlaneWave Instruments / SKU: PW-6011001

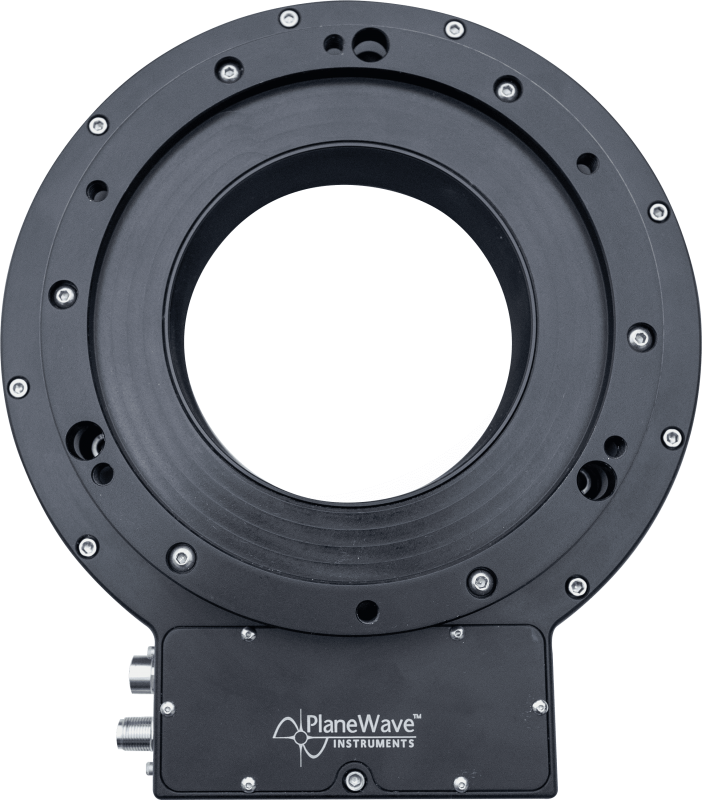

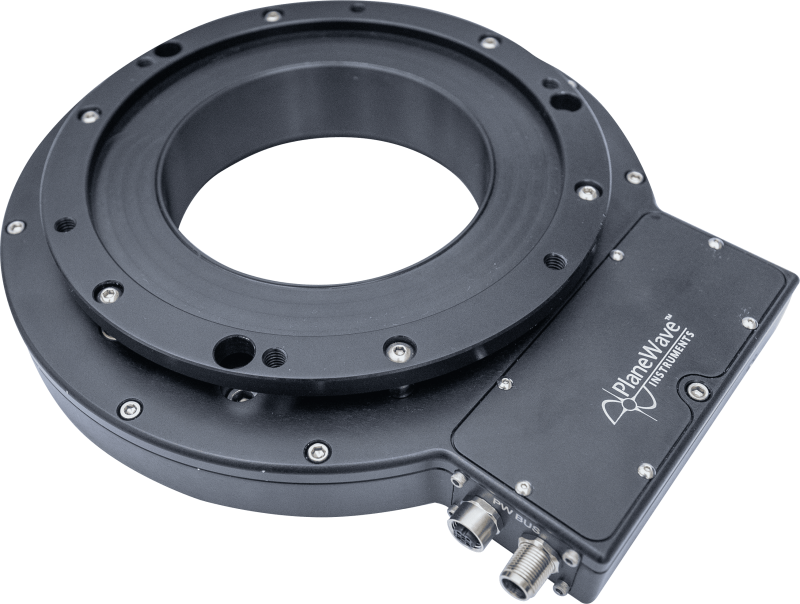

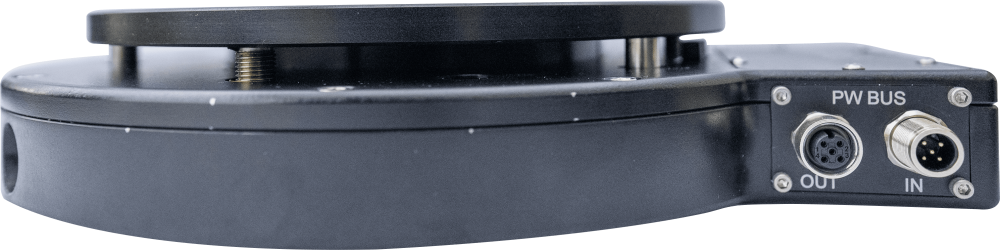

The Series -5 focuser is a large capacity focuser for use with ALT/AZ or equatorially-mounted systems. The Series-5 focuser requires the Series-5 Controller (600199) (see Options below).
Recommended Add-ons and Accessories
Product Price Quantity
PW-600199 - PlaneWave Series-5 Controller
PW-600199 - PlaneWave Series-5 Controller
About This Product
The PlaneWave Series -5 controller has been designed for operating the new Series-5 focuser and rotator. This controller will also power the fans on CDK12.5 to CDK24 telescopes.
$1,000.00 each
PW-6021001 - PlaneWave Series-5 Rotator (Stackable with Series-5 Focuser)
PW-6021001 - PlaneWave Series-5 Rotator (Stackable with Series-5 Focuser)
About This Product

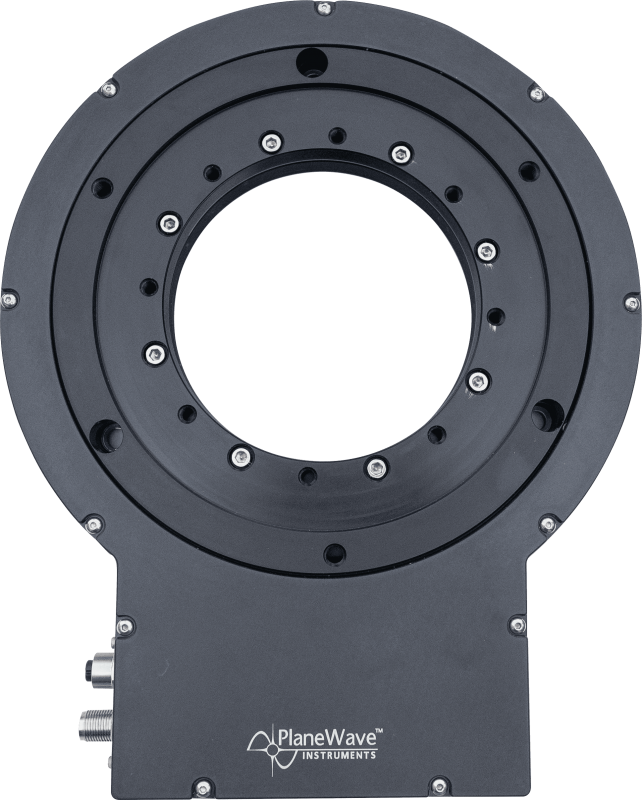

The Series-5 rotator is a large capacity rotator for use with ALT/AZ or equatorially-mounted systems.
$3,450.00 each
PW-6003148 - PlaneWave Adapter, Series-5 Focuser or Rotator to SecureFit Spacers
PW-6003148 - PlaneWave Adapter, Series-5 Focuser or Rotator to SecureFit Spacers
About This Product
ADAPTER, Series-5 FOCUSER OR ROTATOR TO SecureFit SPACERS. ALSO ALLOWS OTA TO SecureFit ADAPTATION (PATH-LENGTH = 0.302)
$150.00 each
QTY:
Price as Configured: $3,450.00

Product Help
Need help deciding?
Tell us what you're looking for, and we’ll point you in the right direction. .

While designing the new DeltaRho 350, PlaneWave also wanted to design a new focuser and rotator that would add even more flexibility to their systems. The goal was to create a faster, stronger focuser and rotator system that had a thinner profile than the IRF90. PlaneWave's Series-5 stackable focuser and rotator have achieved just that for users of the CDK700 and smaller telescopes. Both the focuser and rotator offer a clear aperture of 5” and are designed to stack for users that require derotation. for those only needing focusing capabilities, the new focuser also occupies less backfocus, which means more room for imaging train components.

  • The Series-5 focuser is a large capacity focuser for use with ALT/AZ, or equatorially-mounted systems.
  • The focuser is capable of lifting 40 lbs (18 kg) with a travel range of 16.5 mm (16500 microns).
  • The Series-5 focuser can be stacked with the Series-5 rotator (PW-6021001) for a complete focusing rotator solution (combined 2.78″ of occupied backfocus).
  • Occupies only 1.675” of backfocus.
  • Controlled via PWI3 software for autofocusing and optional field de-rotation (if using an ALT/AZ mounted system).
  • Requires the Series-5 Controller (PW-600199).
  • Compatible with CDK700, CDK24, CDK20, CDK17, CDK14, DeltaRho 350, and CDK12.5.
