Pegasus Astro FocusCube Zero Celestron Classic, Edge, and RASA 14" Telescopes

Starting Price: $354.00
Price as Configured: $354.00
Brand: Pegasus Astro / SKU: PEG-FCZERO-SCT14
Focus your Celestron Schmidt-Cassegrain Telescope accurately and quickly the Pegasus Astro FocusCube Zero. The evolution of technology in astronomy requires a system that focuses the telescope with great accuracy. Fast optics and modern camera devices require automatic focusing in every small time period as temperature can affect focal length and modify the optimal focus position. The Pegasus Astro FocusCube Zero meets all of these requirements. The electronics and stepper motor are in a compact box and provide high speed, focus accuracy and zero backlash. You only need this device to focus! Attach the FocusCube Zero to your SCT telescope, plug the power, USB cable, download ASCOM drivers or standalone software and you are ready to go!
Recommended Add-ons and Accessories
Product Price Quantity

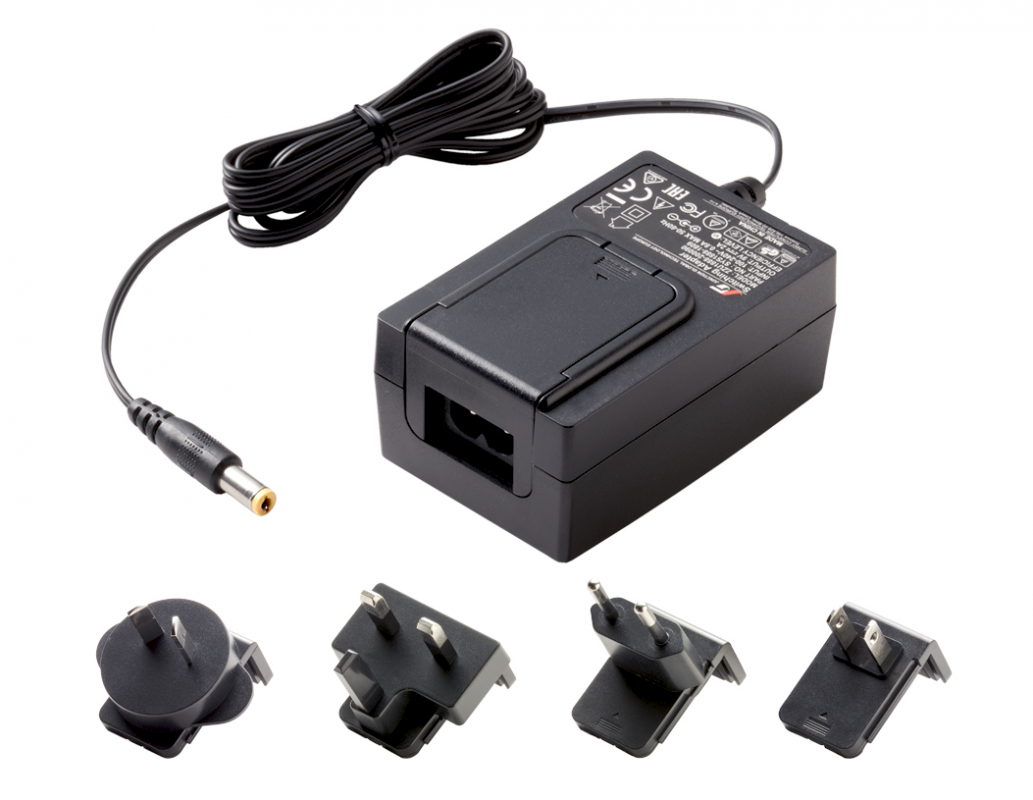

PEG-PSU-1215 - Pegasus Astro Power Supply Unit 12V/1.5A - 2.1mm Plug\
PEG-PSU-1215 - Pegasus Astro Power Supply Unit 12V/1.5A - 2.1mm Plug\
About This Product

This PSU is suitable for the following products:

  • Falcon Rotator
  • FocusCube
  • Dual Motor Focus Controller
$18.00 each
PEG-FC-HC - Pegasus Astro Hand Controller for FocusCube
PEG-FC-HC - Pegasus Astro Hand Controller for FocusCube
About This Product
This simple hand controller allows precise manual focus, vibration-free! Compatible with:
FocusCube v1
FocusCube v2
FocusCube Zero

Please note that this hand controller is NOT compatible with FocusCube v3.
$72.00 each
QTY:
Price as Configured: $354.00

Product Help
Need help deciding?
Tell us what you're looking for, and we’ll point you in the right direction. .
IMPORTANT NOTE
FocusCube is a standalone device and includes controller functionality.
No physical hand controller is included or required, but is optional.
DO NOT pair it with the Dual Motor Focus Controller or any other controller in the market.
DO NOT connect this RJ45 port to the Ultimate Powerbox RJ45 Stepper Output
The RJ45 port at the back is only for the hand controller or the included temperature sensor.

Zero Backlash Stepper Motor

Embedded bipolar stepper motor provides a zero backlash movement. Motor is very fast and allows you to quickly move from any focus point to another.

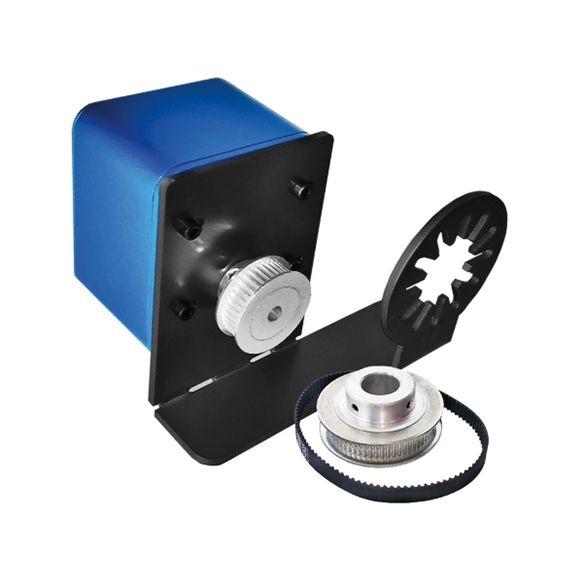

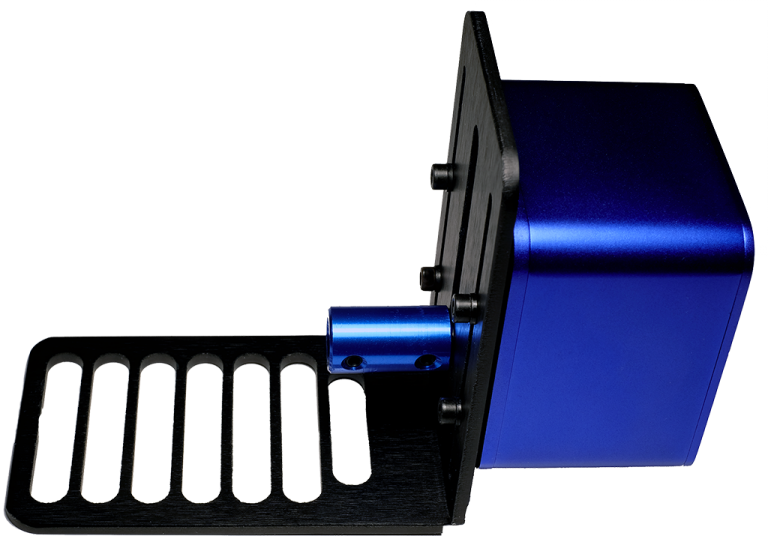

SCT Bracket

A unique and rigid black anodized aluminum bracket can be attached to most of the Celestron SCTs. Three different SCT versions are provided. The difference is the metal pulley bore diameter and the screw length in the package.

  • Celestron Classic & EdgeHD 6, 8, 9.25 (SKU:PEG-FCZERO-SCT68925)
  • Celestron Classic & Edge HD 11 (SKU:PEG-FCZERO-SCT11)
  • Celestron Classic & Edge HD 14 (SKU:PEG-FCZERO-SCT14)
  • Celestron RASA 8 (SKU: PEG-FCZERO-SCT68925)
  • Celestron RASA 11 (SKU:PEG-FCZERO-SCT11)
  • Celestron RASA 14” (SKU:PEG-FCZERO-SCT14)
Temperature Probe
An external digital temperature sensor input is located near the motor connector. A digital probe of one meter (3 feet) length is supplied. The probe can be placed near the focuser so the exact temperature of the focuser / environment can be seen through the supplied software or ASCOM driver (probe is included in the package).

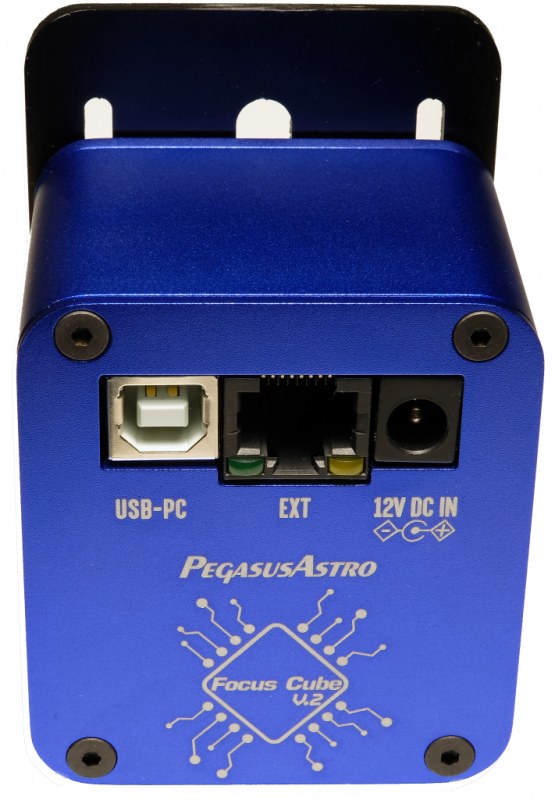

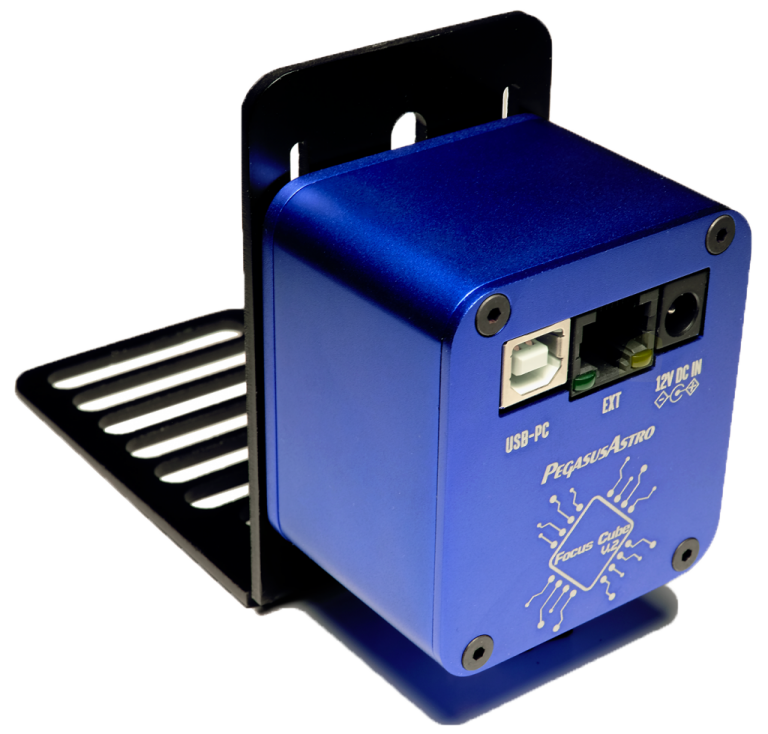

Expansion Port/Manual Focus (optional accessory)

The FocusCube includes an expansion RJ45 port at the back of the enclosure. This port provides input for the temperature sensor. An optional hand controller for manual focus control can be purchased separately.

ASCOM and INDI and Firmware Upgrade Support
The controller is fully compatible with the lasted ASCOM and INDI. Controller firmware supports re-programming via the USB 2.0 connection using upgrade software, for future upgrades as they become available.
