Optec ThirdLynx DirectSync SVX30

Starting Price: $525.00
Price as Configured: $525.00
Brand: Optec / SKU: OP-19978

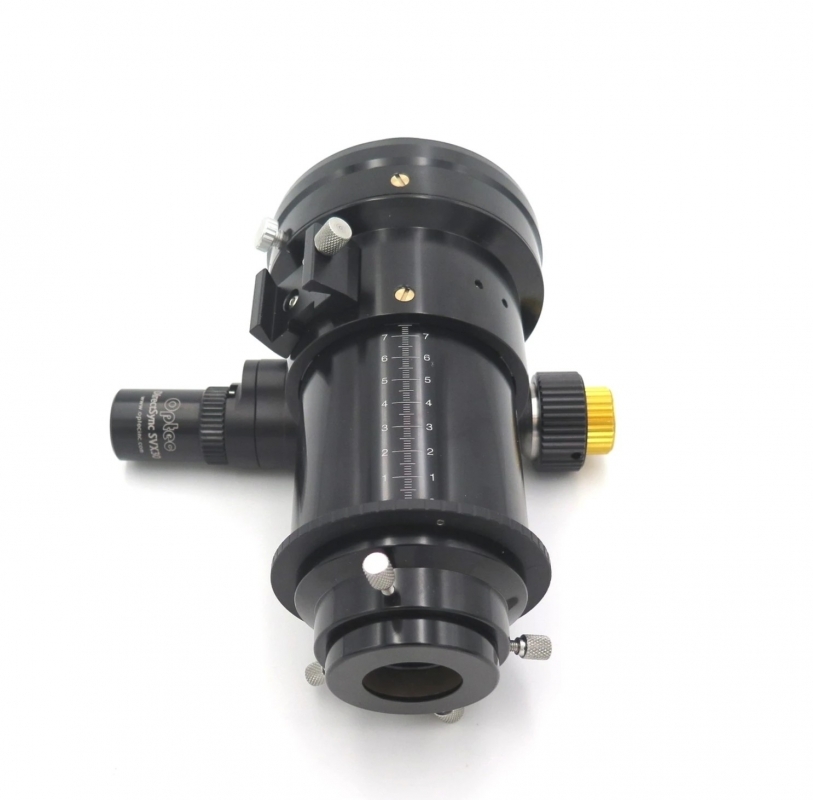

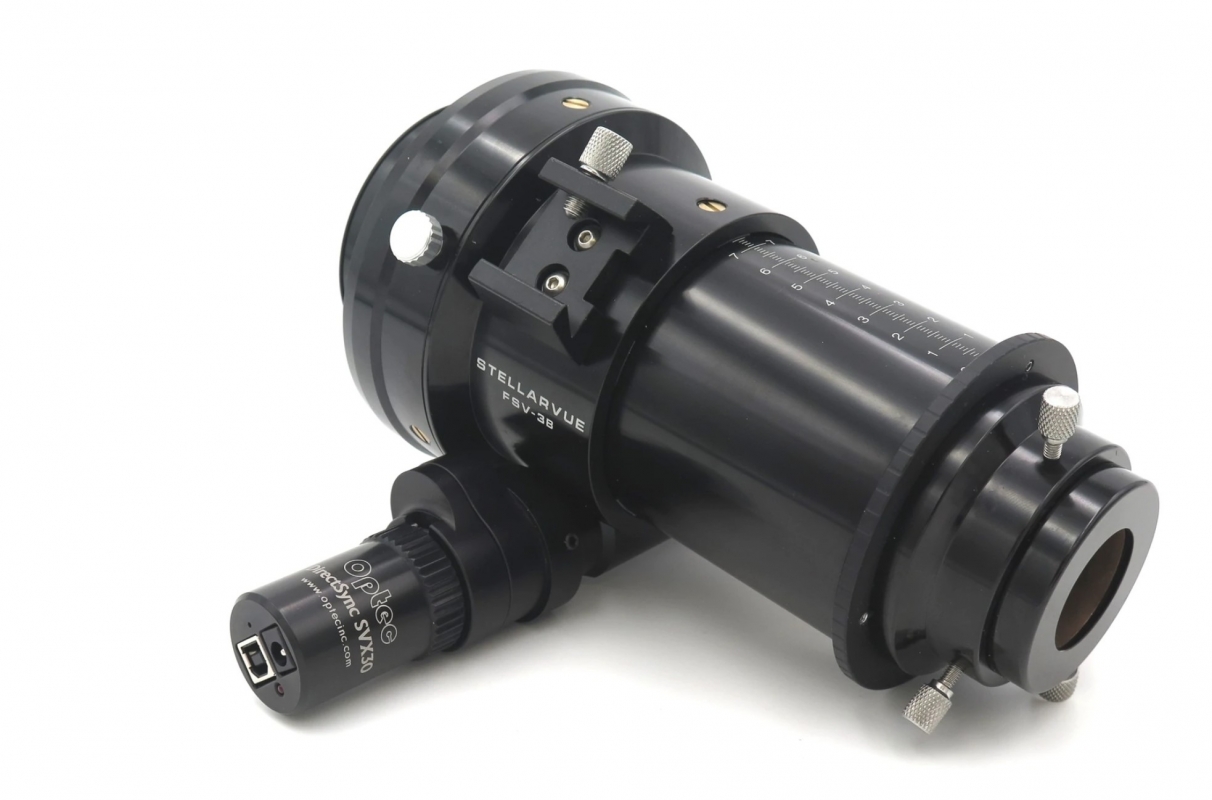

Optec's DirectSync SVX30 motor was developed specifically for the Stellarvue FSV-3B series focusers and features our ThirdLynx control circuit.

SVX30 also fits a variety of Stellarvue focusers including SVF25 and SVF30 3-inch focuser.   Similar to our original DirectSync SV30 motors with the same Best-In-Class clutch mechanism, the new DirectSync SVX30 includes an all-new integrated control circuit built into the focus motor end cap.

No external controller is required.  USB connectivity and fully compatible with all existing FocusLynx software. Compatible with:

  • Stellarvue SVF25 2-1/2-inch focuser,
  • Stellarvue SVF30 3-inch focuser,
  • Stellarvue -25SV 2-1/2-inch focuser,
  • Stellarvue -3SV 3-inch focuser,

  • NOTE:  New Stellarvue scopes with SV-F25B focuser require OP-19976 motor.
  • Many Stellarvue model telescopes including
  •  SV080ST-25SV,
  •  SV80-3SV,
  • SVR102T-25SV 102mm Raptor.
Recommended Add-ons and Accessories
Product Price Quantity
OP-17070 - Optec USB TO 12V DC Power Converter Cable
OP-17070 - Optec USB TO 12V DC Power Converter Cable
About This Product
Recommended for use with 1A or higher USB charger ports to power ThirdLynx focus motors.

USB to 12VDC power adapter cable. Special cable converts USB 5-volt output to 12VDC for use with low-power devices such as the ThirdLynx focus motors. 2.5 x 5.5mm power plug, 3-ft. (1m) length. RECOMMENDED FOR USE WITH USB 3.1 OR CHARGING PORTS ONLY.

  •  USB input: 5V 1A (5W) male type A plug,
  • 12VDC output: 2.5 x 5.5mm plug- center pin positive,
  • Length: 3-ft. (1m)
$25.00 each
QTY:
Price as Configured: $525.00

Product Help
Need help deciding?
Tell us what you're looking for, and we’ll point you in the right direction. .
  • Motor Housing Width: 1.9" (48mm)
  • Overall Length: 3.55" (90mm)
  • Weight: 6.0 oz (165 g)
  • Step Resolution: 1.1 micron per step
  • Stepper Motor: Bi-polar NPM 15-ohm with 1:25 gearhead
  • Controller:  Integrated ThirdLynx
  • Connectivity:  USB 2.0 A-B cable (included)
  • Temperature Sensor: Analog Devices ADT7302 embedded
  • Input Power: 12-volts DC, 2.5 x 5.5mm plug
  • Current Draw: Maximum draw approx. 350mA
