Optec QuickSync Motor for FeatherTouch 2" Focusers

Starting Price: $325.00
Price as Configured: $325.00
Brand: Optec / SKU: OP-19771

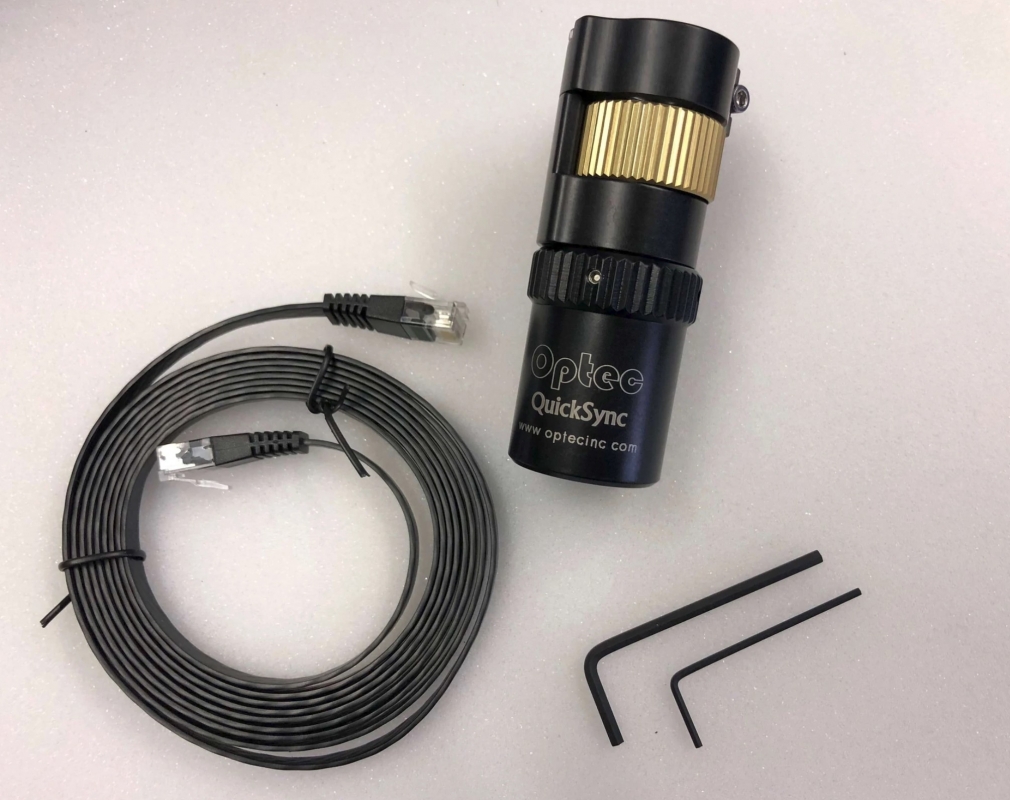

#19771 - QuickSync FT20 Motor for Feathertouch FTF20 series Crayford style focuser and FeatherTouch Micro focuser retrofits

The QuickSync FT20 motor with built-in clutch mechanism and temperature sensor allows both manual and motorized control with a simple twist of the motor housing.

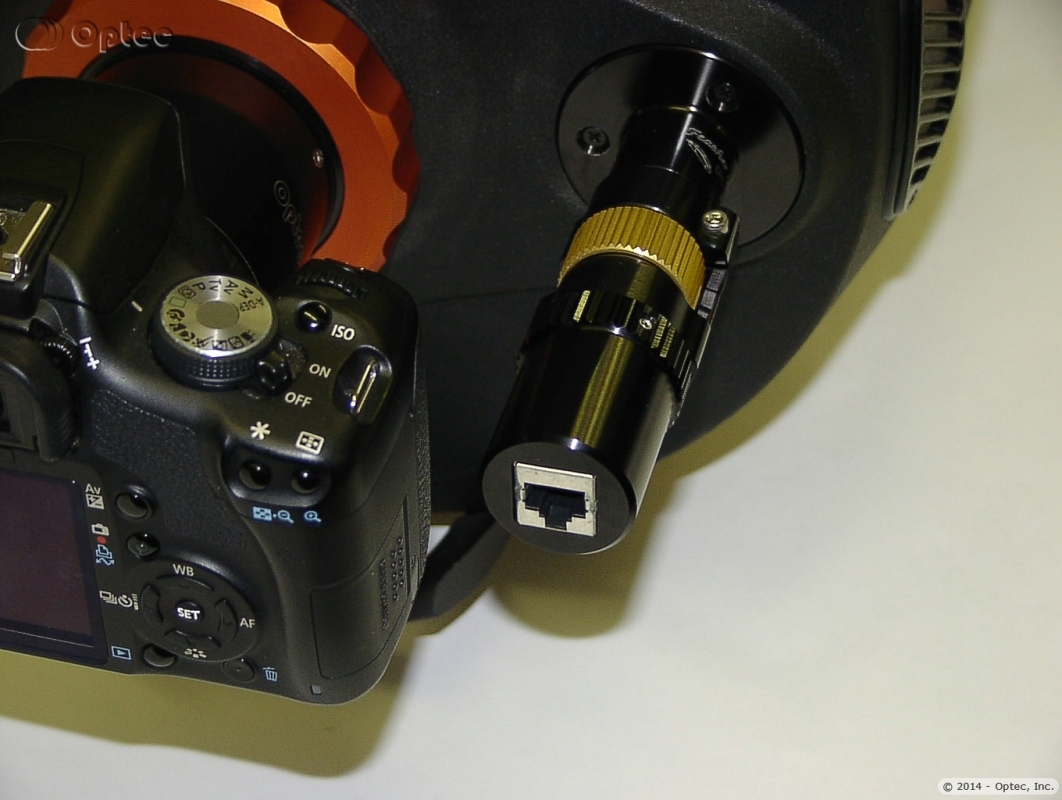

Designed especially for the FeatherTouch FTF20 series manual focusers, the FT20 can also be used with the FeatherTouch Micro Focuser for SCT's. Simple installation and elegant design with full compatibility to the FocusLynx Control Hub makes QuickSync the very best choice for motorizing a FeatherTouch.

This version requires the external Optec FocusLynx controller . If you would prefer the fully integrated solution consider the ThirdLynx model .
Recommended Add-ons and Accessories
Product Price Quantity
OP-19690 - Optec FocusLynx Dual-Focus Control Hub
OP-19690 - Optec FocusLynx Dual-Focus Control Hub
About This Product

Optec's FocusLynx Controller is capable of operating two focusers simultaneously and has full ASCOM compliance.

$350.00 each
OP-19691 - Optec Universal Mounting Bracket for Focus Lynx Control Hub
OP-19691 - Optec Universal Mounting Bracket for Focus Lynx Control Hub
About This Product

The Optec Universal Mounting Bracket screws directly to the back of the FocusLynx Control Hub back and allows easy attachment to most any mount.

  • Material:  6061 aluminum, anodized black
  • Length:  4.9" (124mm)
  • Width:  4.7" (120mm)
  • Thickness: 0.1" (2.5mm)
  • Weight: 1.8 oz (50 g)
  • Mounting Holes:  Clearance for 1/4-20
  • Connection to FocusLynx:  Four 4-40 flathead screws (included)
$55.00 each
OP-19695 - Optec FocusLynx Hand Control with Fine Focus and Digital Read Out
OP-19695 - Optec FocusLynx Hand Control with Fine Focus and Digital Read Out
About This Product

The Focus Lynx Hand Control provides an easy, vibration-free method of focusing the telescope when using the FocusLynx Control Hub. Featuring IN and OUT buttons, a 2-line display, and Quick Sync synchronization capability. The FocusLynx Hand Control is a "must-have" option for any system where the operator may be at the telescope.

It includes an electronic Fine Focus Knob for greater control and tactile feedback while using eyepieces at the telescope. An embedded rotary encoder switch allows one-hand fine focus control while using an eyepiece. No need to move your eye away from the eyepiece - with this improvement the FocusLynx hand control provides simple, intuitive and precise control of the focus motor. The FocusLynx Hand Control plugs into the Hand Controller port on the bottom of the FocusLynx Control Hub using the included telephone handset cord.

$145.00 each
Price as Configured: $325.00

Product Help
Need help deciding?
Tell us what you're looking for, and we’ll point you in the right direction. .
Material: 6061 aluminum, anodized black with gold knob,
Length: 6.3" (160mm)
Width: 3.2" (81.4mm)
Weight: 6.4 oz (180 g)
Tools Required: 1/16" and 7/64" hex keys (included)
Motor Cable: Standard Cat-5e or Cat-6 (6-ft. length included)
Connection to FocusLynx: Focuser 1 or Focuser 2 port- RJ45 socket

FeatherTouch FTF2008, FTF2015, FTF2020, FTF2025 focusers,
FeatherTouch FTM series Micros,
FeatherTouch MPA series Micro Pinion Assembly,
Televue-85 f/7 APO Refractor focuser,
TeleVue TV-NP101is, TV-NP127is focusers.

NOTE: 2-inch FeatherTouch rack-and-pinion focusers require the FT20R motor.
