Optec C-Mount Camera Mounting Plate for 2" NexGEN Telecompressors
Starting Price: $75.00
Price as Configured: $75.00
Price as Configured: $75.00
Brand: Optec / SKU: OP-17399-X
In order to attach a camera to one of the Optec 2" NextGEN Telecompressors (sold separately) you will need the right 2" Camera Mounting Plate. The Optec 17399, like all of the NextGEN 2" Camera Mounting Plates, attaches to the male 2.1" diameter OPTEC-2100 dovetail built into the camera side of the MAXfield, Ultra WideField or WideField NextGEN focal reducer. The mounting plate is secured in place by three set-screws. The other end of the 17399 has a C mount for C- or CS-mount cameras.
Need help deciding?
Tell us what you're looking for, and we’ll point you in the right direction. Email Us.
Tell us what you're looking for, and we’ll point you in the right direction. Email Us.

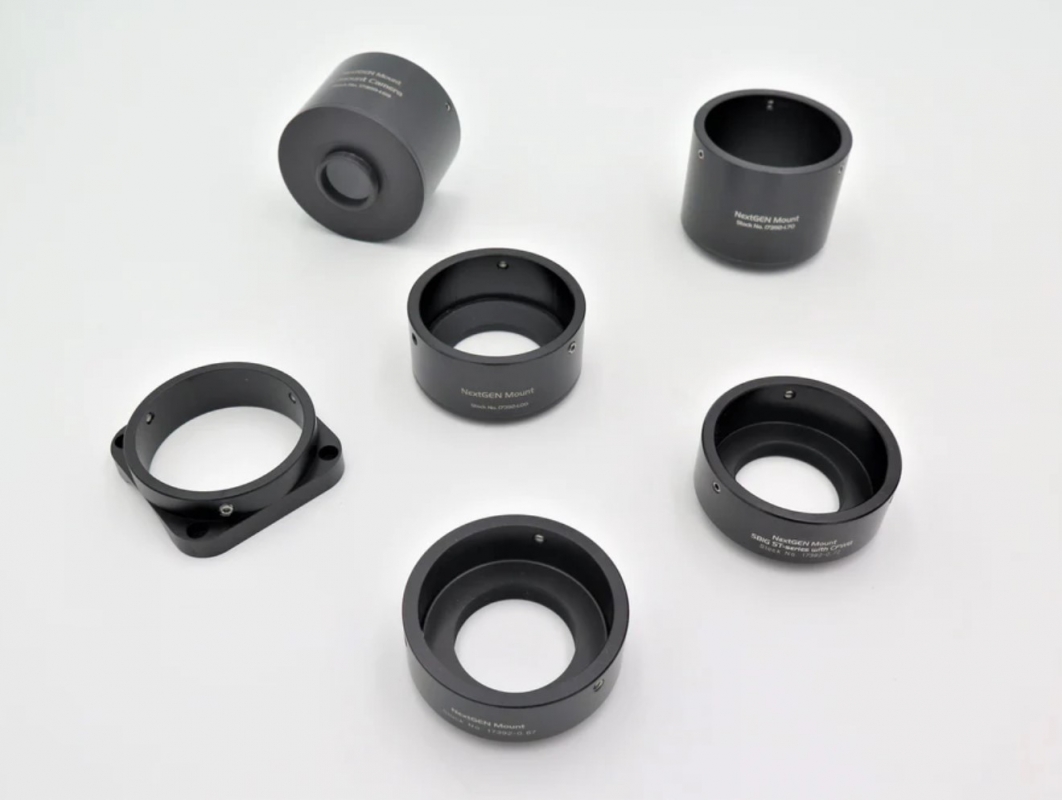

These mounting plates fit on the back dovetail of the NextGEN and are secured in place by three setscrews located in the mounting plate 120 degrees apart. It is important that the back-focus distance be set as closely as possible for the NextGEN reducers which is why each mounting plate has a unique length for every model camera. Backfocus distance should be known to +/- 0.04 inch (1mm) for best performance. Use the table below to find the appropriate mounting plate for your camera. If your camera is not listed below and you know the back-focus (BF) distance and thread type for your camera, you can find the stock number as follows:
1. Take the base stock number for your camera's thread:
T-thread #17392
Pentax-thread #17395
SCT-thread #17396
QSI 500wsg #17397
C-thread #17399
2. Add a dash
3. Add the tube length, which is equal to 2.39 - BF, with BF measured in inches.
Note: The minimum tube length available is 0.52 inches for the NGM (0.33X), and 0.67 inches for the NGW (0.5X) and the NGUW (0.70X).
| NextGEN Mounting Plate Finder | |||
|---|---|---|---|
| Camera Type | Tube Length (inches) | Thread | Stock No. |
| Any C-mount camera with standard lens mount | 1.69 | C | 17399-1.69 |
| Any CS-Mount Camera | 1.9 | C | 17399-1.90 |
| Apogee D02 Housing - U47, U77, U4000, U8300 std. body | 1.37 | SCT | 17396-1.37 |
| Atik Instruments 314L+ | 1.89 | T | 17392-1.89 |
| Atik Instruments 314L+ plus EFW | 1.12 | T | 17392-1.12 |
| *Canon DSLR Camera - Bayonet mount | 0.18 | N/A | N/A |
| Fishcamp Starfish | 1.93 | T | 17392-1.93 |
| Lumenera SKYnyx | 1.68 | T | 17392-1.68 |
| Meade Deep Sky Imager | 2.05 | T | 17392-2.05 |
| Meade Deep Sky Imager with RGB filter bar | 1.39 | T | 17392-1.39 |
| Meade Deep Sky Imager with ATIK manual filter wheel | 1.45 | T | 17392-1.45 |
| Orion StarShoot Pro | 1.8 | T | 17392-1.80 |
| QSI 500wsg | 0.35 | 4-bolt | 17397 |
| QSI 504 full body camera with filters | 1 | T | 17392-1.00 |
| QSI 504 full body camera without filters | 0.99 | T | 17392-0.99 |
| QSI 504 medium body camera without filters | 1.49 | T | 17392-1.49 |
| QSI 504 slim body camera with filters | 1.81 | T | 17392-1.81 |
| QSI 516, 532 full body camera with filters | 1 | T | 17392-1.00 |
| QSI 516, 532 full body camera without filters | 1.02 | T | 17392-1.02 |
| QSI 516, 532 medium body camera without filters | 1.5 | T | 17392-1.50 |
| QSI 516, 532 slim body camera without filters | 1.83 | T | 17392-1.83 |
| QSI 520 full body camera with filters | 1.01 | T | 17392-1.01 |
| QSI 520 full body camera without filters | 1 | T | 17392-1.00 |
| QSI 520 medium body camera without filters | 1.5 | T | 17392-1.50 |
| QSI 520 slim body camera without filters | 1.82 | T | 17392-1.82 |
| QSI 583 full body camera with filters | 1.02 | T | 17392-1.02 |
| SBIG ST-7/8/9/10/2000 with CFW-10 filter wheel mounted directly on camera without face plate and with D-block | 0.8 | T | 17392-0.80 |
| SBIG ST-7/8/9/10/2000 with new 0.25 inch thick front plate on camera and D-block with T-thread | 1.38 | T | 17392-1.38 |
| SBIG ST-7/8/9/10/2000 with CFW-8/8A/9 filter wheel with new 0.25 inch thick front plate and no D-block | 0.67 | T | 17392-0.67 |
| SBIG ST-4000XCM color camera | 1.38 | T | 17392-1.38 |
| SBIG ST-8300 | 1.7 | T | 17392-1.70 |
| SBIG STF-8300 with CFW5/8-8300 and T-thread adapter with 3mm thick filters. | 0.62 | T | 17392-0.62 |
| *SBIG STL with 3mm thick filters | 0.92 | N/A | NOT RECOMMENDED |
| *SBIG STL without filters | 0.88 | N/A | NOT RECOMMENDED |
| Starlight Xpress SXVF-H9 camera plus filter wheel | 0.86 | T | 17392-0.86 |
| Starlight Xpress SXV-H9 T-thread camera | 1.67 | T | 17392-1.67 |
| *QHY-8 camera | 1.56 | T | 17392-1.56 |
