Starting Price: $559.00
Price as Configured: $559.00

Brand: ADM Accessories / SKU: ADM-MAX-HD

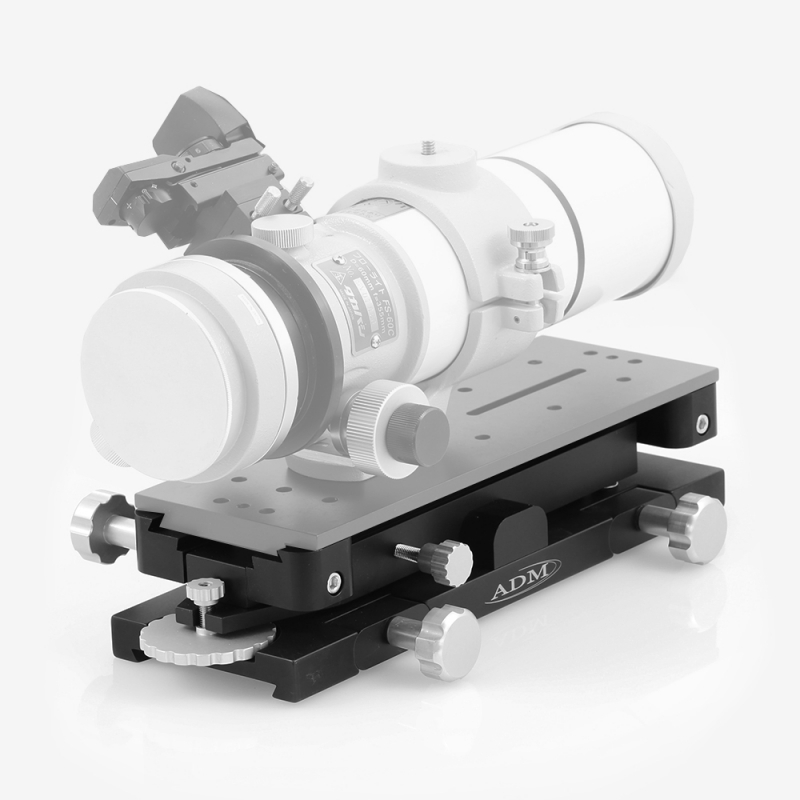

Alternative to adjustable guidescope rings.

Supports guidescope/finderscope with tube rings and dovetail bar for added stability and simple adjustability.
Used for co-aligning two optical tubes for viewing the same target or offsetting two optical tubes to find a suitable guidestar for autoguiding.

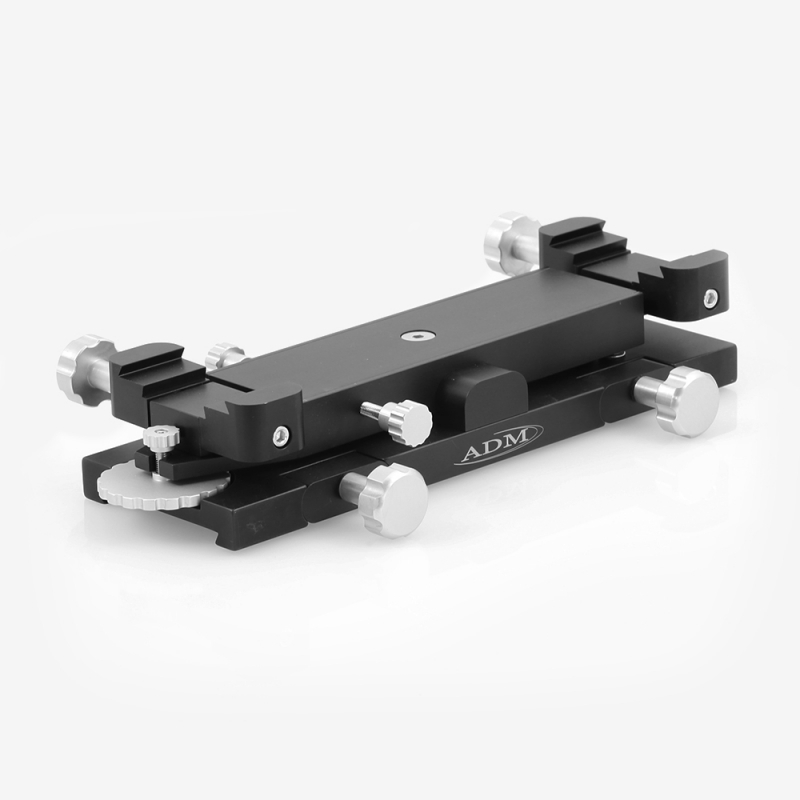

Bottom clamping system is a “D” Series dovetail saddle that will slide and clamp onto any “D” Series dovetail bar.
The top clamping system is a “D/V” Series dovetail clamp and will receive either a “D” Series or a “V” Series dovetail bar.
Overall weight is 4lbs 8oz.
Capable of handling any guidescope or finderscope under 20lbs.

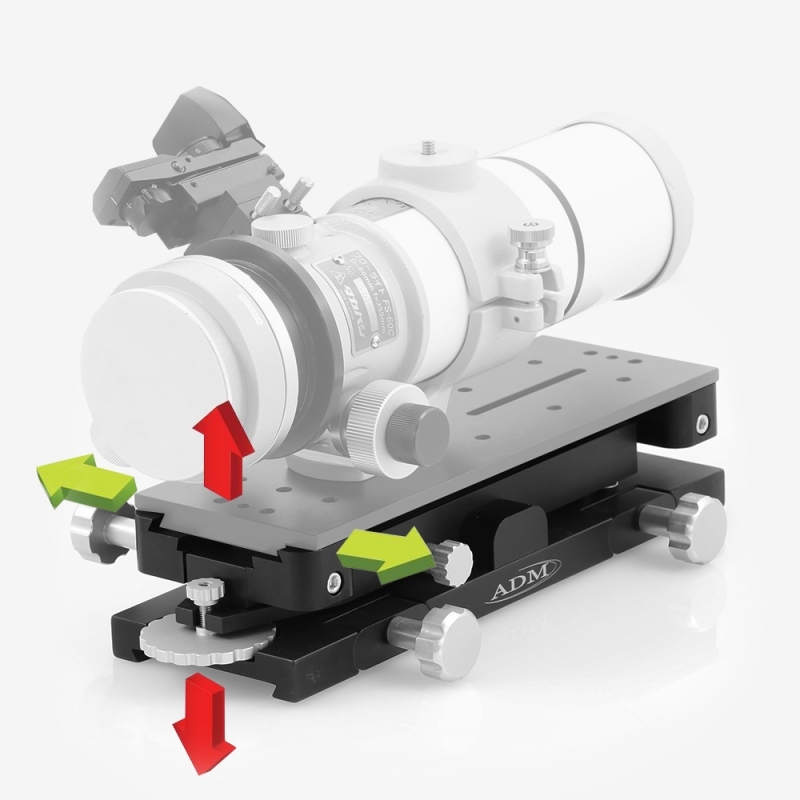

10 degrees of Azimuth adjustment and 5 degrees of altitude adjustment.
12″ long and adds approximately 2″ of height (from top of dovetail on OTA to bottom dovetail on guidescope/finderscope).

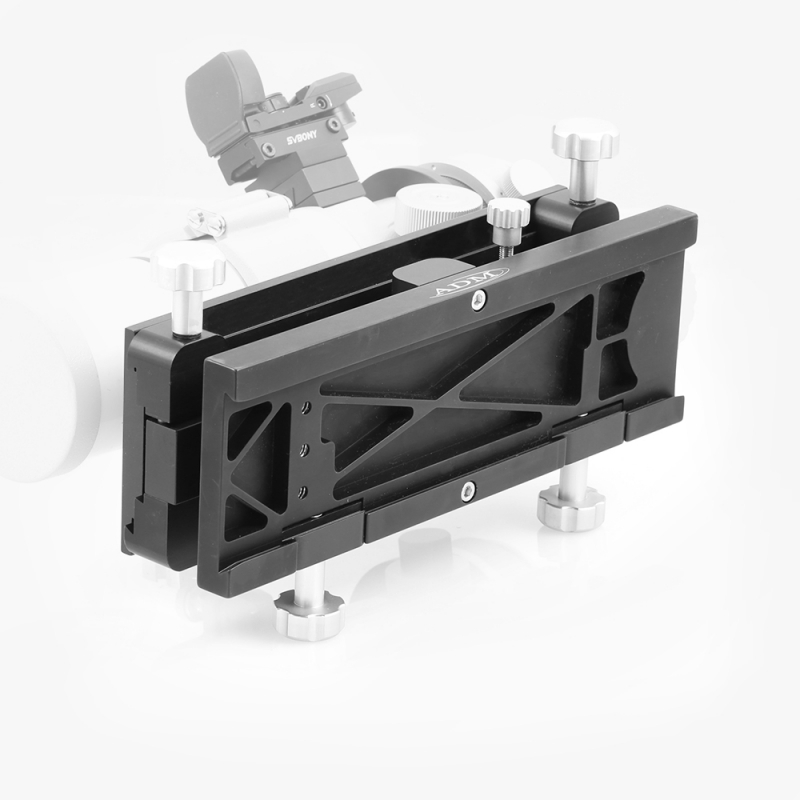

CNC machined from aircraft quality 6061 aluminum.
All components are anodized aluminum and stainless steel for a beautiful finish and long lasting durability.
