Lunatico Astronomia ZeroDew Controller

Starting Price: $138.00
Price as Configured: $138.00
Brand: Lunatico Astronomia / SKU: LA-ACNZD0x

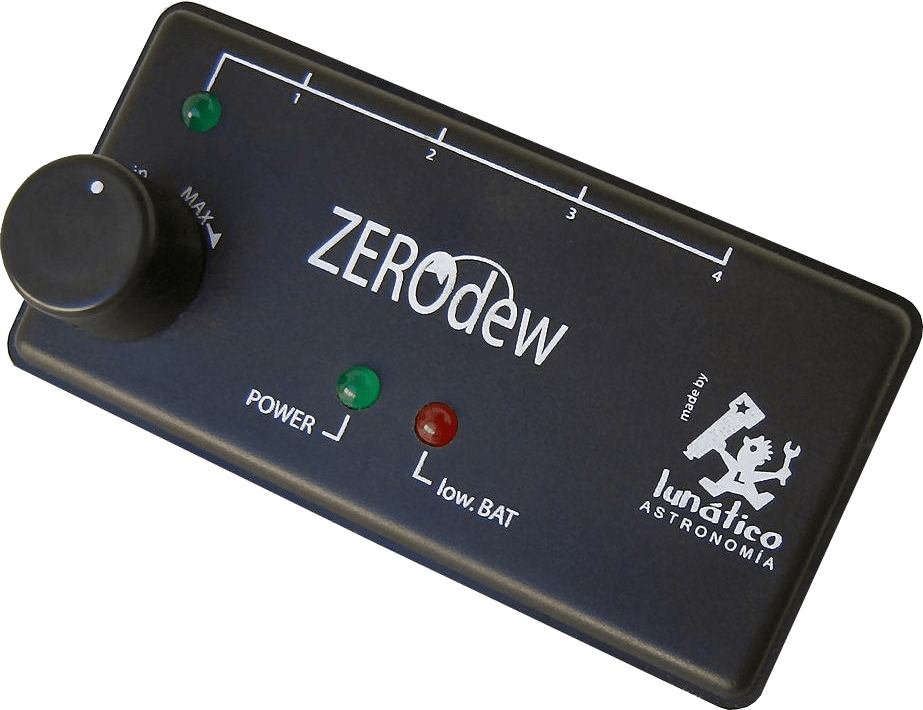

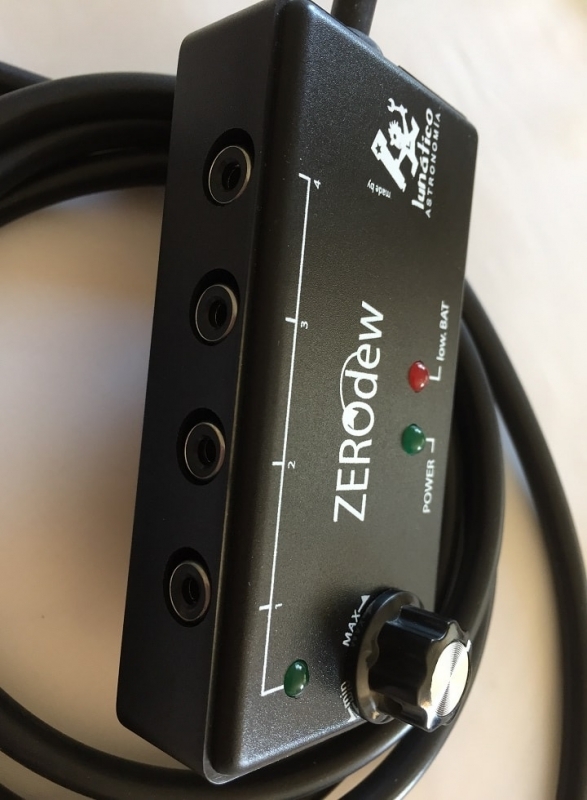

Lunático’s ZeroDew is the control system for all your anti-dew needs.

Option (Required)
Recommended Add-ons and Accessories
Product Price Quantity

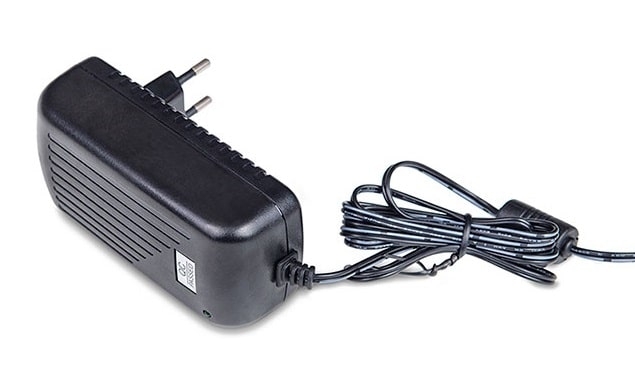

LA-BCAFU12 - Lunatico Astronomia 12V DC - 2A Compact Power Supply
LA-BCAFU12 - Lunatico Astronomia 12V DC - 2A Compact Power Supply
About This Product

DC 220V AC a 12VDC 2A. power supply with jack.

Perfect to power the Seletek, ZeroDew system, and many other devices.

Technical specs:

  • Input voltage 100-240 VAC 50~60 Hz.0.8A
  • Euro plug is standard, we can supply adapter to USA/Canada for free (please include in the Observations of your order)
  • Output voltage 12 VDC
  • Amperage 2A.
  • Box size: 85 x 45 x 30 mm.
  • Cable length: 110 cm.

$20.00 each
LA-BCAFU20 - Lunatico Astronomia 12V DC - 4A Power Supply
LA-BCAFU20 - Lunatico Astronomia 12V DC - 4A Power Supply
About This Product

AC/DC 220VAC a 12VDC 4A. power supply with jack.

Perfect to power the Seletek, ZeroDew system and many other devices.

Technical specs:

  • Input range: 100-240VAC 50/60Hz
  • Europlug is standard, we can supply adapter to USA/Canada for free (please include in the Observations of your order)
  • Output voltage 12V
  • Current: 4A (4000 mA)
  • 5.5×2.1mm jack
  • Switching
  • Dimension: 108*53*37.2 mm. (plus cable)



$25.00 each
LA-ACIZDxx - Lunatico Astronomia ZeroDew Heater Band
LA-ACIZDxx - Lunatico Astronomia ZeroDew Heater Band
About This Product

Zero Dew is the "Lunáticastronomical" dew heather control system, with controller and dew heater bands. The bands are an original Lunático design, very easy to install, to avoid condensation. They are RoHS compliant. Cable length is 1m.

Band length:

  • 50mm finder: 32 Ohm, 0.37A, 4.5W 19 cm
  • 80mm finder: 20 Ohm, 0.60A, 7.2W 29 cm
  • EZG-60/2″ eyepiece: 32 Ohm, 0.37A, 4.5W 21 cm
  • 80mm OTA: 17,5 Ohm, 0.68A, 8.2W 32 cm
  • 100/110mm OTA: 14 Ohm, 0.86A, 10.3W 41 cm
  • 120/125mm OTA: 12 Ohm, 1A, 12W 47 cm
  • 6″ OTA: 8 Ohm, 1.5A, 18W 64 cm
  • 7″/8″ OTA: 7.6 Ohm, 1.6A, 19W 74 cm
  • 9″/10″ OTA: 6.2 Ohm, 1.9A, 23W 94 cm
  • 11″/12″ OTA: 5.5 Ohm, 2.2A, 26W 109 cm
  • 14″ OTA: 5 Ohm, 2.4A, 28W 127 cm
  • 16″ OTA: 4.4 Ohm, 2.7A, 33W 142 cm

2 versions available:

  • With RC connector (original version)
  • With USB connector (no controller needed)

They are made with a flexible printed circuit and SMD resistors. Isolated in the outer side with two layers, one of them in a special formula above the resistances system, and the other in a thick cloth in order to prevent heat loss. The wire output is perpendicular to the layer for an easier anchorage. They are fixed with “velcro”; and an elastic band with a locking latch. They have an inner reinforcement for longer life and are hand-finished.

Available in all sizes ( up to 16″; in stock, bigger upon request).

$39.00 each
QTY:
Price as Configured: $138.00

Product Help
Need help deciding?
Tell us what you're looking for, and we’ll point you in the right direction. .
  • With 4 options to connect to any power supply or battery:
      • car lighter socket
      • standard batteries with the FASTON connectors
      • bananas
      • 5.2mm standard jack (12V d.c. power supply needed)
  • 12 V DC input, 0 – 12 v variable output
  • Connectable to the electrical network through a suitable power supply
  • 4 regulated outputs, with RCA connectors
  • No USB socket
  • 10 Amp max current
  • Reverse polarity protected input
  • Pulse modulated output current (PWM)
  • 13 Hz output frequency
  • Battery discharge protection with visual warning (LED)
  • Interference-free
  • RoHS compliant
  • Minimal consumption
  • 2m. cable
