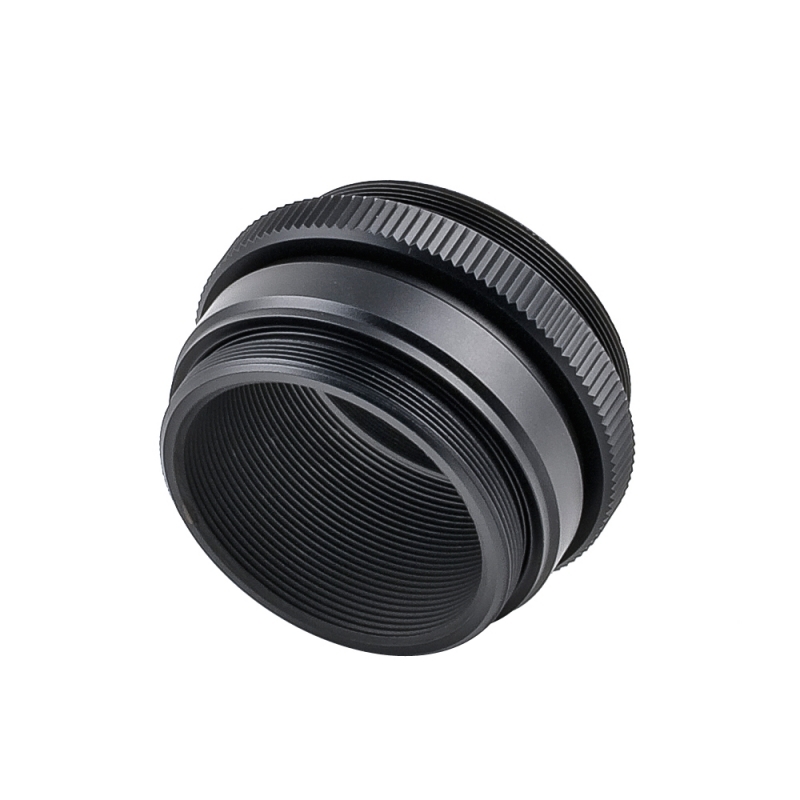

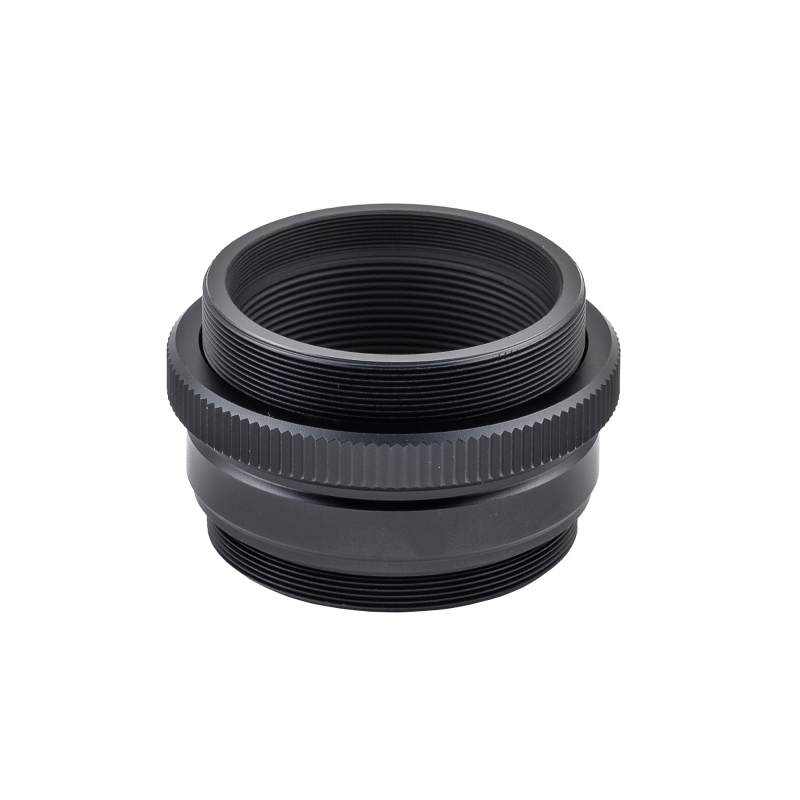

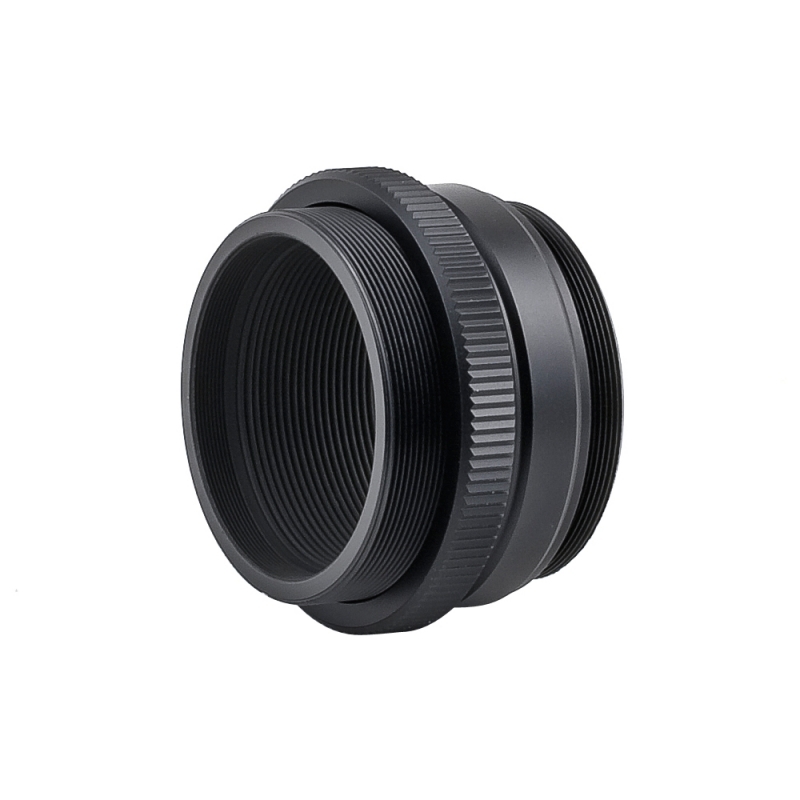

Takahashi CA35 (FS-60C)

The Takahashi CA35 photo adapter for C2X is intended for imaging. It allows you to attach DSLRs, CCD cameras and video cameras behind the Takahashi C2X Barlow lens.

The input mechanical interface has a M43x0.75 male thread. The output mechanical interface has a T-thread (M42 x 0.75), male. The adapter is screwed directly at the end of the Takahashi C2X Barlow lens and accepts all standard T rings. A 7 mm thick M43 counter ring is delivered, which allows you to center pictures if needed. Because of this counter ring, the metal back distance is variable, from 17 mm to 21 mm; the 2X magnification ratio is thus slightly modified.
