Berlebach Fork Mount Wega
Starting Price: $680.00
Price as Configured: $680.00
Price as Configured: $680.00
Brand: Berlebach / SKU: BB-500722
Please Note:
To ensure faster delivery, your custom Berlebach order will ship directly from the manufacturer. As of May 2, 2025, updated tariff regulations may apply a duty fee to import orders with a declared value over $800. If applicable, this fee must be paid by you prior to delivery. Unfortunately, we’re unable to predict or cover these charges.
Need help deciding?
Tell us what you're looking for, and we’ll point you in the right direction. Email Us.
Tell us what you're looking for, and we’ll point you in the right direction. Email Us.
- Large angular freedom in vertical swivel
- Compact design
- load capacity up to 25 kg (incl. counterweights)
- smooth movement in the horizontal plane due to ball bearing axle.

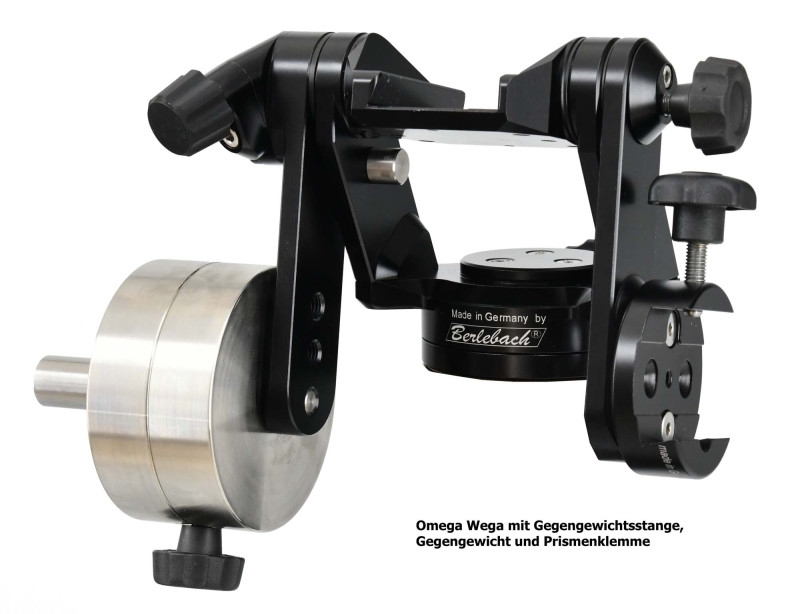

- Balance between optics and counterweight can be easily adjusted by repositioning the counterweight rod.
repositioning the counterweight rod to three different heights
- Fixation of the vertical axis enables easy insertion of the optics
- Possibility of connecting an additional prism clamp to the pendulum arm for the counterweight
- Delivery includes dovetail bar 120 mm, M755
- Base connection for tripod 3/8 “UNC (thread depth 20 mm)
- weight: 2.1 kg
- Further technical data see drawing
We recommend the following accessories
Counterweights 3 kg or 2 kg
Counterweight rod 100 mm
Weight: 2,10 kg = 4.63 lbs.
