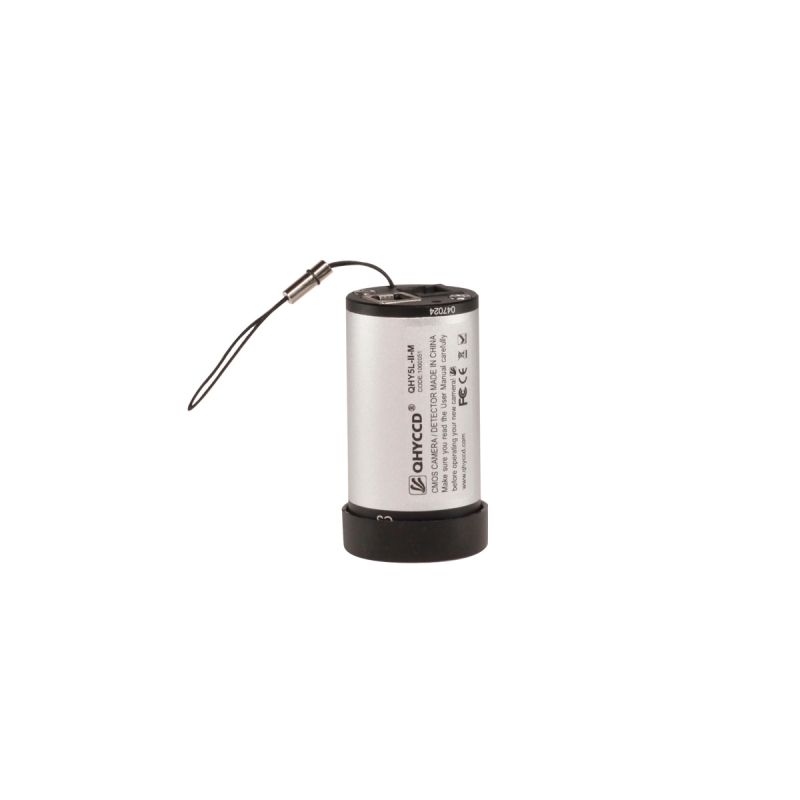

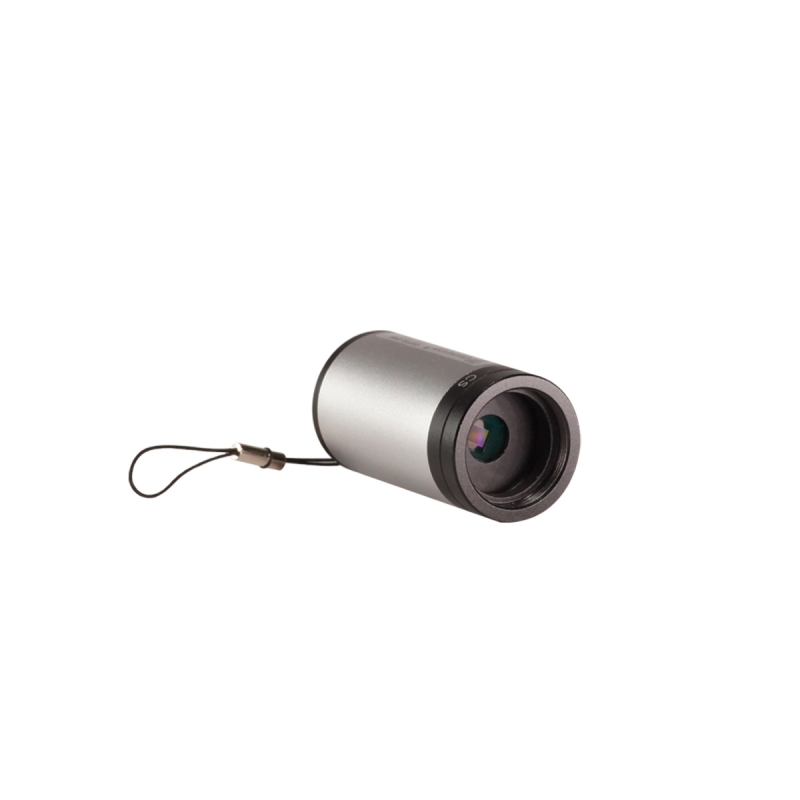

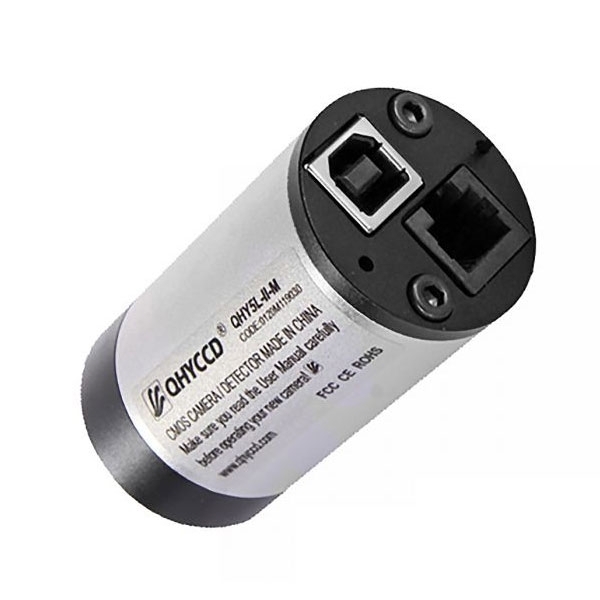

QHY5L-II-M Monochrome Planetary/Guiding Camera

QHY5L-II-M Monochrome Planetary/Guiding Camera

Starting Price: $99.00
Price as Configured: $99.00
Brand: QHYCCD / SKU: QHY-5L-II-M (100007)
The QHY5L-II Series uncooled cameras fit in a standard 1.25-inch eyepiece holder and have an adjustable location ring for confocality with an eyepiece. They are ideal for use as low-weight autoguiders or planetary cameras where short exposures are typical. The cameras come in very small but powerful packages! The improved thermal design allows the heat generated by the CMOS sensor to be transferred externally to the telescope’s eyepiece tube.

CLEARANCE PRICE ON REMAINING INVENTORY
View Add-ons and Accessories

Recommended Add-ons and Accessories

Enter the quantity desired for each item and click the close button to continue with your purchase.
QHY-CFW125 (020133) - QHY Color Filter Wheel 1.25-inch Adapter
QHY-CFW125 (020133) - QHY Color Filter Wheel 1.25-inch Adapter
$30.00
Qty:
View Details
« Back to All Add-ons
QHY-CFW125 (020133) - QHY Color Filter Wheel 1.25-inch Adapter
About This Product
This adapter is designed for connecting QHY planetary cameras (mono) and QHY-CFW3S (SR or US version), so that you can use a mono planetary cam with 1.25 inch or 31mm filters.
QTY:
Price as Configured: $99.00

Product Help
Need help deciding?
Tell us what you're looking for, and we’ll point you in the right direction. .

QHY5L-II is one of QHY's most popular guide cameras. It has high sensitivity, an exceptional 74% QE, and low noise. The read noise is remarkably low (~ 4 electrons) and the on-chip FPN (Fixed Pattern Noise) calibration function solves one of the major problems of CMOS technology, resulting in images that are clear and uniform, even under high gain. With these advantages, the QHY5L-II provides outstanding image quality for planetary imaging, autoguiding, deep-sky and all-sky imaging. The sensor has 1280 x 960 pixels at 3.75um and the camera is capable of 30 FPS in high resolution mode, 106 FPS in VGA mode.

This QHY5-II camera is equipped with both Native WDM and Broadcast WDM drivers. This means you can also utilize this camera as a superior, high-performance webcam for capturing video or presenting a live video broadcast.
