Optec QuickSync FT30 Motor

Starting Price: $325.00
Price as Configured: $325.00
Brand: Optec / SKU: OP-19772

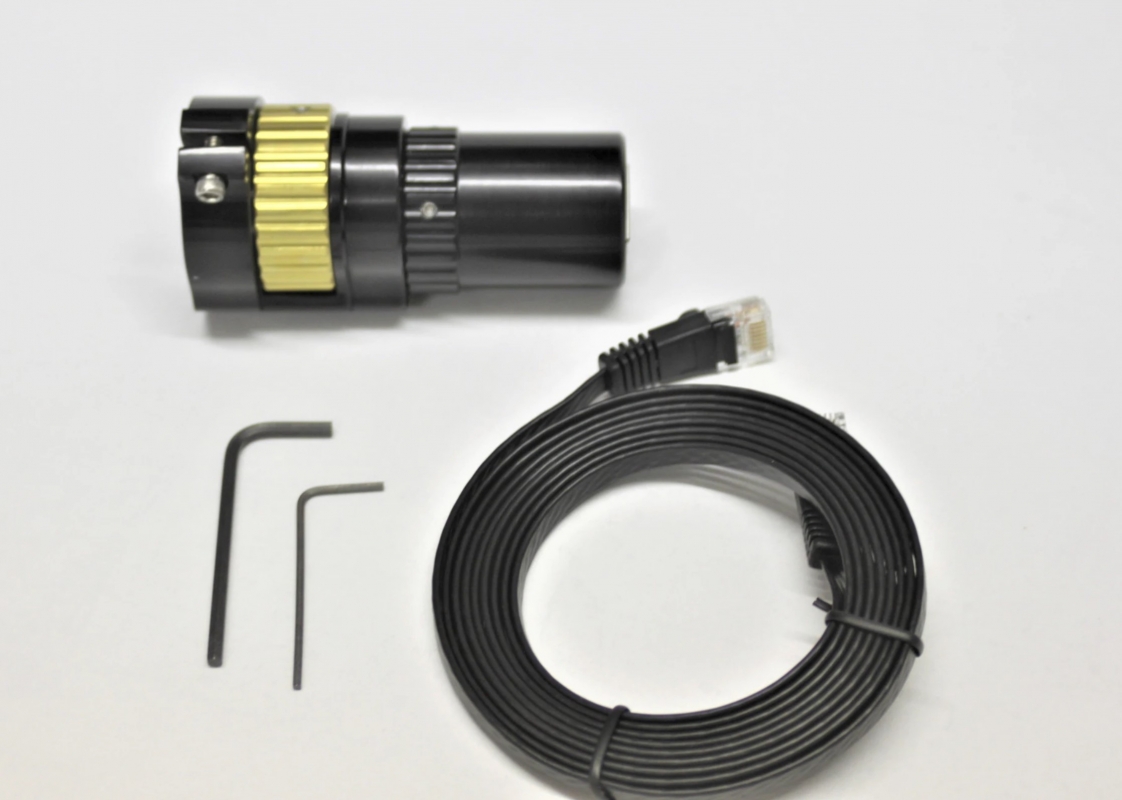

The #19772 QuickSync FT30 motor with built-in clutch mechanism and temperature sensor allows both manual and motorized control with a simple twist of the motor housing.

Designed especially for the FeatherTouch FTF25, FTF27, and FTF30 series manual focusers, the FT30 provides motorized focus while not impeding manual focus function. Simple installation and elegant design with full compatibility to the FocusLynx Control Hub makes QuickSync the very best choice for motorizing a FeatherTouch.

This version requires the external Optec FocusLynx controller. If you would prefer the fully integrated solution consider the ThirdLynx model .

Recommended Add-ons and Accessories
Product Price Quantity
OP-19690 - Optec FocusLynx Dual-Focus Control Hub
OP-19690 - Optec FocusLynx Dual-Focus Control Hub
About This Product

Optec's FocusLynx Controller is capable of operating two focusers simultaneously and has full ASCOM compliance.

$350.00 each
OP-19691 - Optec Universal Mounting Bracket for Focus Lynx Control Hub
OP-19691 - Optec Universal Mounting Bracket for Focus Lynx Control Hub
About This Product

The Optec Universal Mounting Bracket screws directly to the back of the FocusLynx Control Hub back and allows easy attachment to most any mount.

  • Material:  6061 aluminum, anodized black
  • Length:  4.9" (124mm)
  • Width:  4.7" (120mm)
  • Thickness: 0.1" (2.5mm)
  • Weight: 1.8 oz (50 g)
  • Mounting Holes:  Clearance for 1/4-20
  • Connection to FocusLynx:  Four 4-40 flathead screws (included)
$55.00 each
OP-19695 - Optec FocusLynx Hand Control with Fine Focus and Digital Read Out
OP-19695 - Optec FocusLynx Hand Control with Fine Focus and Digital Read Out
About This Product

The Focus Lynx Hand Control provides an easy, vibration-free method of focusing the telescope when using the FocusLynx Control Hub. Featuring IN and OUT buttons, a 2-line display, and Quick Sync synchronization capability. The FocusLynx Hand Control is a "must-have" option for any system where the operator may be at the telescope.

It includes an electronic Fine Focus Knob for greater control and tactile feedback while using eyepieces at the telescope. An embedded rotary encoder switch allows one-hand fine focus control while using an eyepiece. No need to move your eye away from the eyepiece - with this improvement the FocusLynx hand control provides simple, intuitive and precise control of the focus motor. The FocusLynx Hand Control plugs into the Hand Controller port on the bottom of the FocusLynx Control Hub using the included telephone handset cord.

$145.00 each
Price as Configured: $325.00

Product Help
Need help deciding?
Tell us what you're looking for, and we’ll point you in the right direction. .
FeatherTouch FTF2515, 2525, 2535 2-1/2-inch dual-speed focusers,
FeatherTouch FTF3015, 3025, 3035 3-inch dual-speed focusers,
FeatherTouch older 2.7-inch series dual-speed focusers.
FeatherTouch 2-inch series rack-and-pinion focusers.
Astro-Physics Stowaway with 2.5-inch focuser.

Material: 6061 aluminum, anodized black with gold knob,
Length: 6.3" (160mm)
Width: 3.2" (81.4mm)
Weight: 6.4 oz (180 g)
Tools Required: 1/16" and 7/64" hex keys (included)
Motor Cable: Standard Cat-5e or Cat-6 (6-ft. length included)
Connection to FocusLynx: Focuser 1 or Focuser 2 port- RJ45 socket
